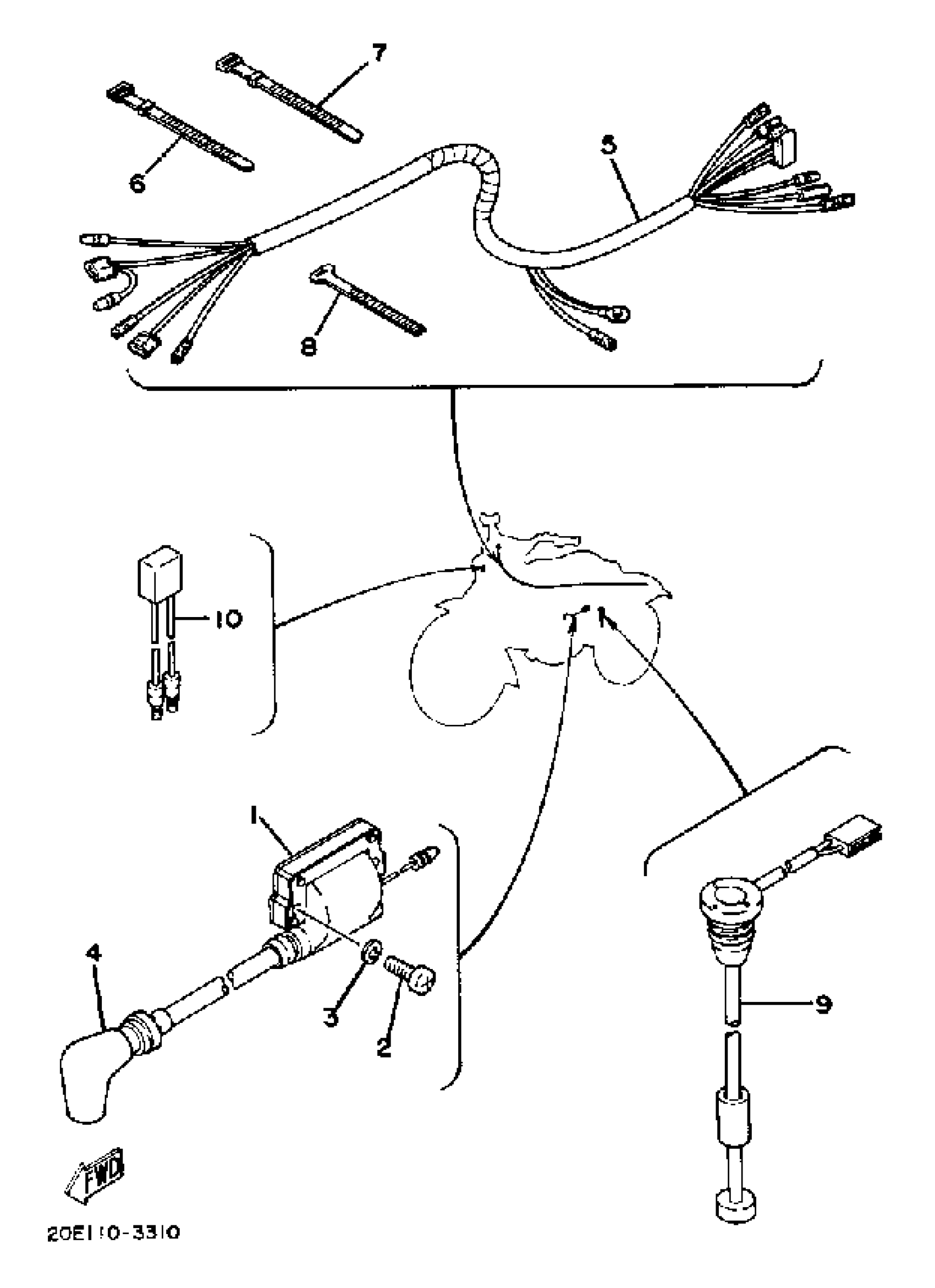

Yamaha YT175K 1983 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

355-82310-40-00

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$4.89

3

WASHER, SPRING

92995-06100-00

$2.95

4

PLUG CAP ASSY

8DG-82370-00-00

$41.54

4

PLUG CAP ASSY

7KA-82370-00-00

$61.30

5

WIRE HARNESS ASSEMBLY

5V6-82590-00-00

Unavailable

6

BAND, SWITCH CORD

437-83936-01-00

$4.56

7

BAND, SWITCH CORD

437-83936-01-00

$4.56

8

BAND, SWITCH CORD

437-83936-11-00

$3.34

9

OIL LEVEL GAUGE ASSY

3E1-85720-15-00

Unavailable

10

CHECKER, PILOT LAMP

3X3-85774-00-00

Unavailable
