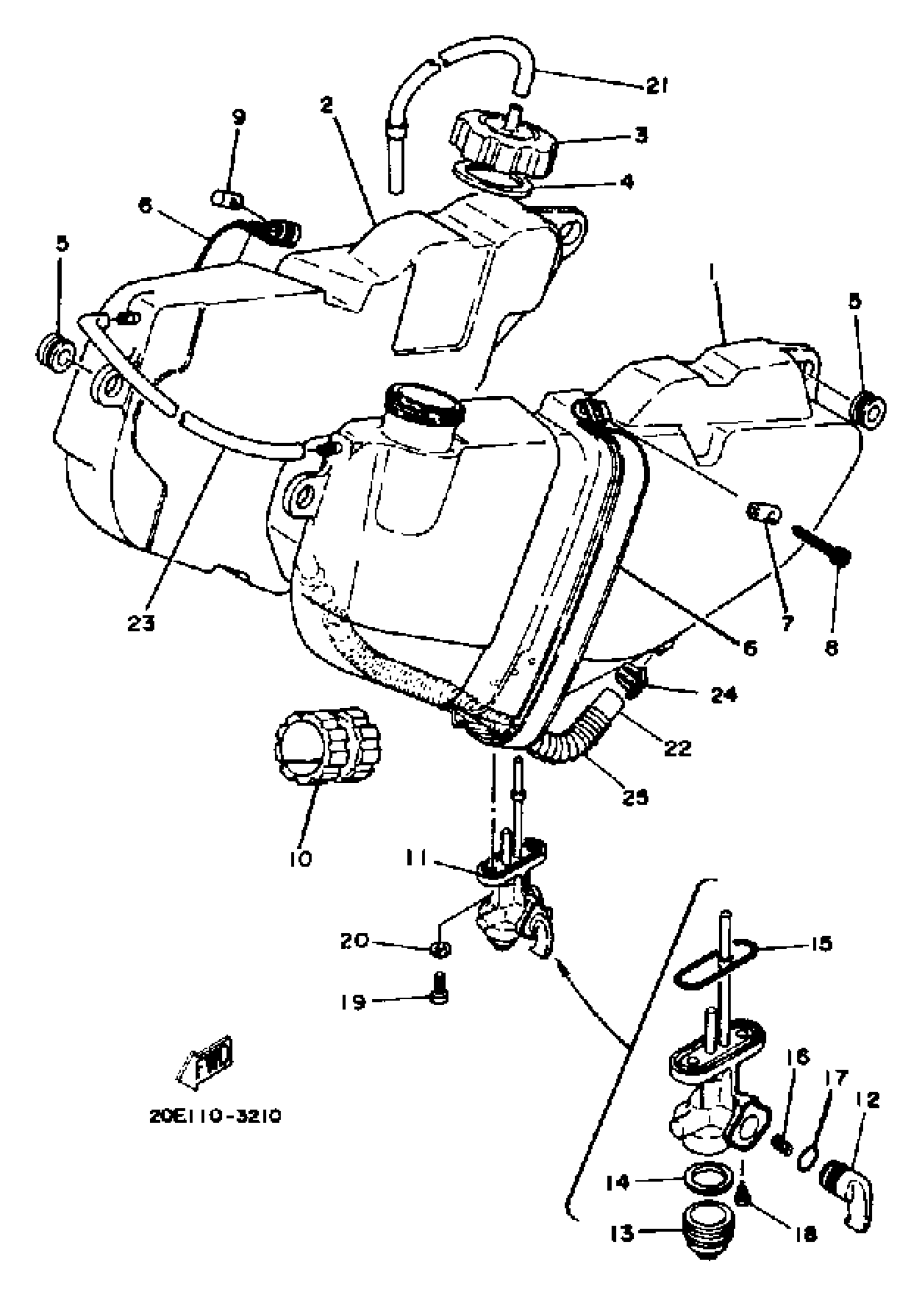

Yamaha YT175K 1983 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK
(5V7-24111-00-00)
Unavailable
2
FUEL TANK
(5V7-24211-00-00)
Unavailable
3
BODY, CAP
1W1-24611-00-00
Unavailable
6
BAND, TNK FITTING 2
5V7-24199-00-00
Unavailable
7
CLAMP
806-24135-00-00
Unavailable
8
SCREW, SPEC''L SHAPE (821-24176-00)
90149-05006-00
Unavailable
9
NUT, SPEC''L SHAPE (806-24146-00)
90179-05030-00
Unavailable
10
DAMPER, LOCATING 1
3X3-24181-00-00
Unavailable
11
FUEL COCK ASSEMBLY 1
3X3-24500-00-00
Unavailable
12
. LEVER, COCK
1A0-24524-01-00
Unavailable
13
. CUP, FILTER
1A0-24521-01-00
Unavailable
16
. SPRING
1A0-24529-01-00
Unavailable
17
O-RING
1A0-24512-00-00
Unavailable
18
. SCREW, LEVER FITTING
619-24535-00-00
Unavailable
19
SCREW 256241430000
90149-06011-00
Unavailable
20
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
21
HOSE (L545)
90445-09361-00
Unavailable
22
HOSE
90445-16416-00
Unavailable
23
HOSE
90445-09222-00
Unavailable
24
CLIP
90468-08104-00
Unavailable
25
SPRING, COMPRESSION
90501-08545-00
Unavailable
