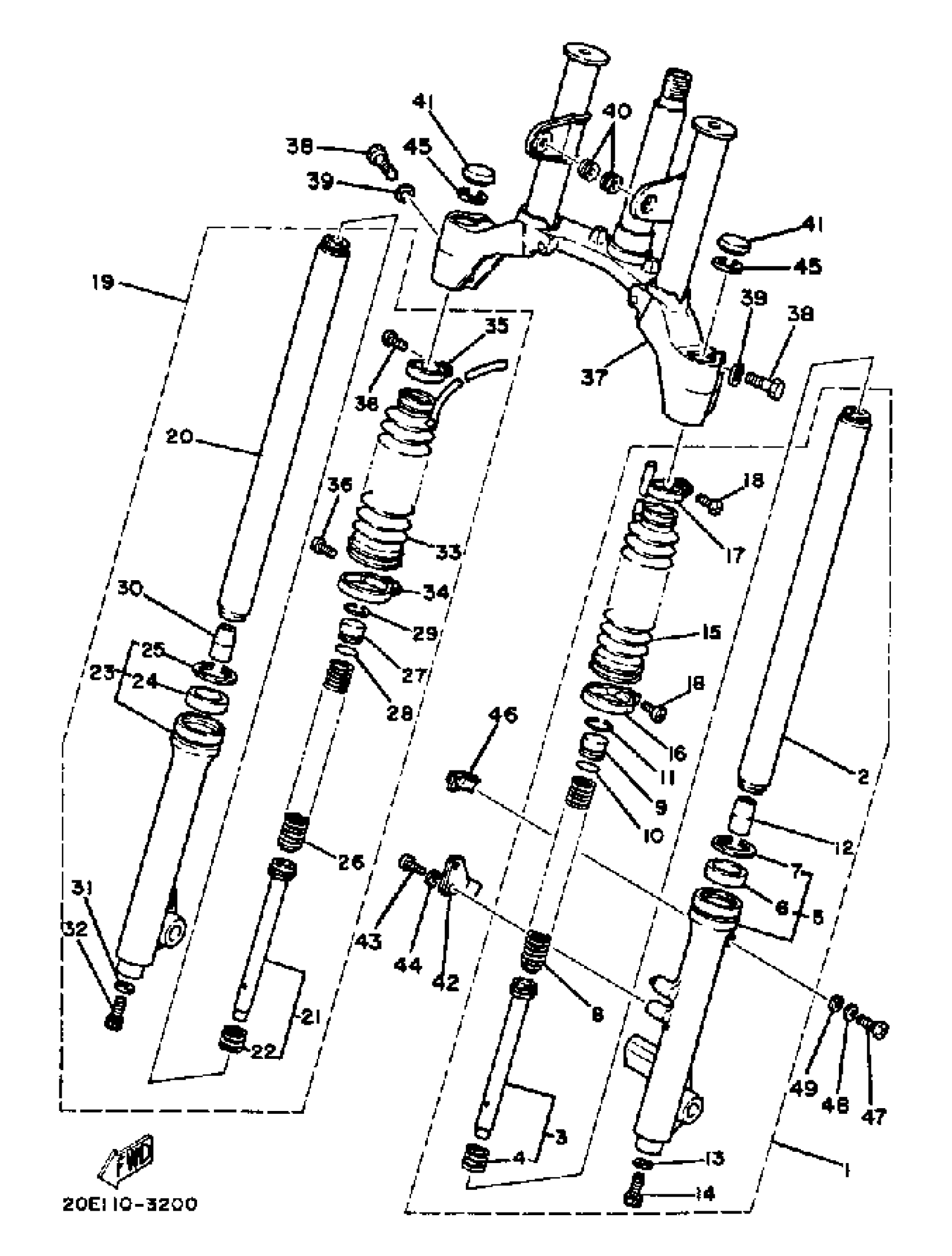

Yamaha YT175K 1983 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY L
(5V7-23102-00-00)
Unavailable
2
. INNER TUBE 1
5V7-23110-00-00
Unavailable
3
CYLINDER, FRTFRK
(5V7-23170-00-00)
Unavailable
4
SPRING, REBOUND
(5H5-23151-00-00)
Unavailable
5
OUTER TUBE LH
(5V7-23106-00-00)
Unavailable
6
OIL SEAL (10W)
93110-30013-00
Unavailable
8
SPRING, FRONT FORK
(5V7-23141-00-00)
Unavailable
12
. UNAVAILABLE IN PRICE BOOK
5H5-21730-00-0
Unavailable
13
. GASKET
90430-08143-00
Unavailable
15
. BOOT
5V7-2312A-00-00
Unavailable
16
. CLAMP, HOSE
90460-52259-00
Unavailable
17
CLAMP, HOSE(20E)
90460-35260-00
Unavailable
18
. SCREW, PAN HEAD
98580-04020-00
Unavailable
19
FRONT FORK ASSEMBLY R
5V7-23103-00-00
Unavailable
20
. INNER TUBE 1
5V7-23110-00-00
Unavailable
21
CYLINDER, FRTFRK
(5V7-23170-00-00)
Unavailable
22
SPRING, REBOUND
(5H5-23151-00-00)
Unavailable
23
. OUTER TUBE RH
5V7-23107-00-00
Unavailable
24
OIL SEAL (10W)
93110-30013-00
Unavailable
26
SPRING, FRONT FORK
(5V7-23141-00-00)
Unavailable
30
. SPINDLE, TAPER
5H5-23173-00-00
Unavailable
31
. GASKET
90430-08143-00
Unavailable
33
. BOOT
5V7-2312A-00-00
Unavailable
34
. CLAMP, HOSE
90460-52259-00
Unavailable
35
CLAMP, HOSE(20E)
90460-35260-00
Unavailable
36
. SCREW, PAN HEAD
98580-04020-00
Unavailable
37
UNDER BRACKET
5V7-23340-00-98
Unavailable
38
BOLT, HEXAGON
97017-10030-00
Unavailable
39
WASHER(6TA)
92907-10100-00
Unavailable
40
GROMMET
(90480-20318-00)
Unavailable
41
PLUG, INNER TUBE
5V7-23154-00-00
Unavailable
42
HOLDER, CABLE
5V7-23317-00-00
Unavailable
43
SCREW PAN HEAD
98580-06020-00
Unavailable
44
WASHER, SPRING
92995-06100-00
Unavailable
45
CIRCLIP, OUTER
93440-28099-00
Unavailable
46
HOLDER, CABLE 2
5V7-23319-00-00
Unavailable
47
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
48
WASHER, SPRING
92995-06100-00
Unavailable
49
WASHER, PLAIN (646)
92990-06600-00
Unavailable
