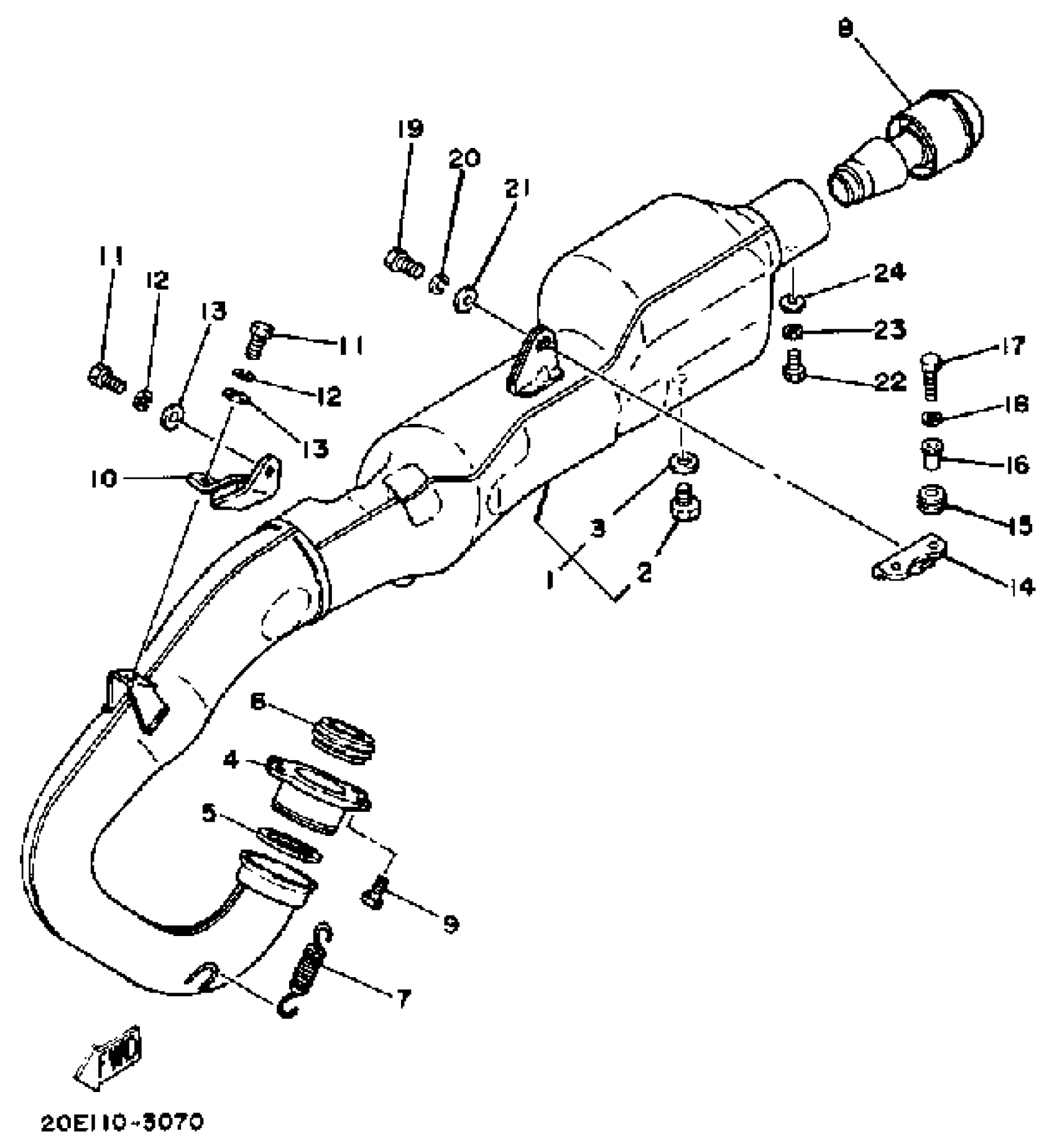

Yamaha YT175K 1983 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

20E-14610-00-00

Unavailable

2

BOLT, HEXAGON

(97301-10014-00)

Unavailable

3

WASHER, PLATE

92990-10600-00

Unavailable

4

NUT, RING

5V7-14622-01-00

Unavailable

5

RING

5V7-14633-00-00

Unavailable

6

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

7

SPRING, TENSION (8R7)

90506-20272-00

$11.49

8

PIPE, OUTLET

5V7-14752-00-00

Unavailable

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

10

STAY, MUFFLER 2

2A6-14772-01-00

$11.99

11

BOLT, HEXAGON

97302-08018-00

Unavailable

12

WASHER(JN5)

92907-08100-00

$8.49

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

STAY, MUFFLER 1

5V7-14771-00-00

Unavailable

15

GROMMET 839774310000

90480-14023-00

$7.49

16

COLLAR

90387-06158-00

Unavailable

17

BOLT, HEXAGON

97017-06025-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

UNAVAILABLE IN PRICE BOOK

97302-08108-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

.. WASHER, PLATE

92990-08600-00

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

WASHER, PLAIN (646)

92990-06600-00

Unavailable
