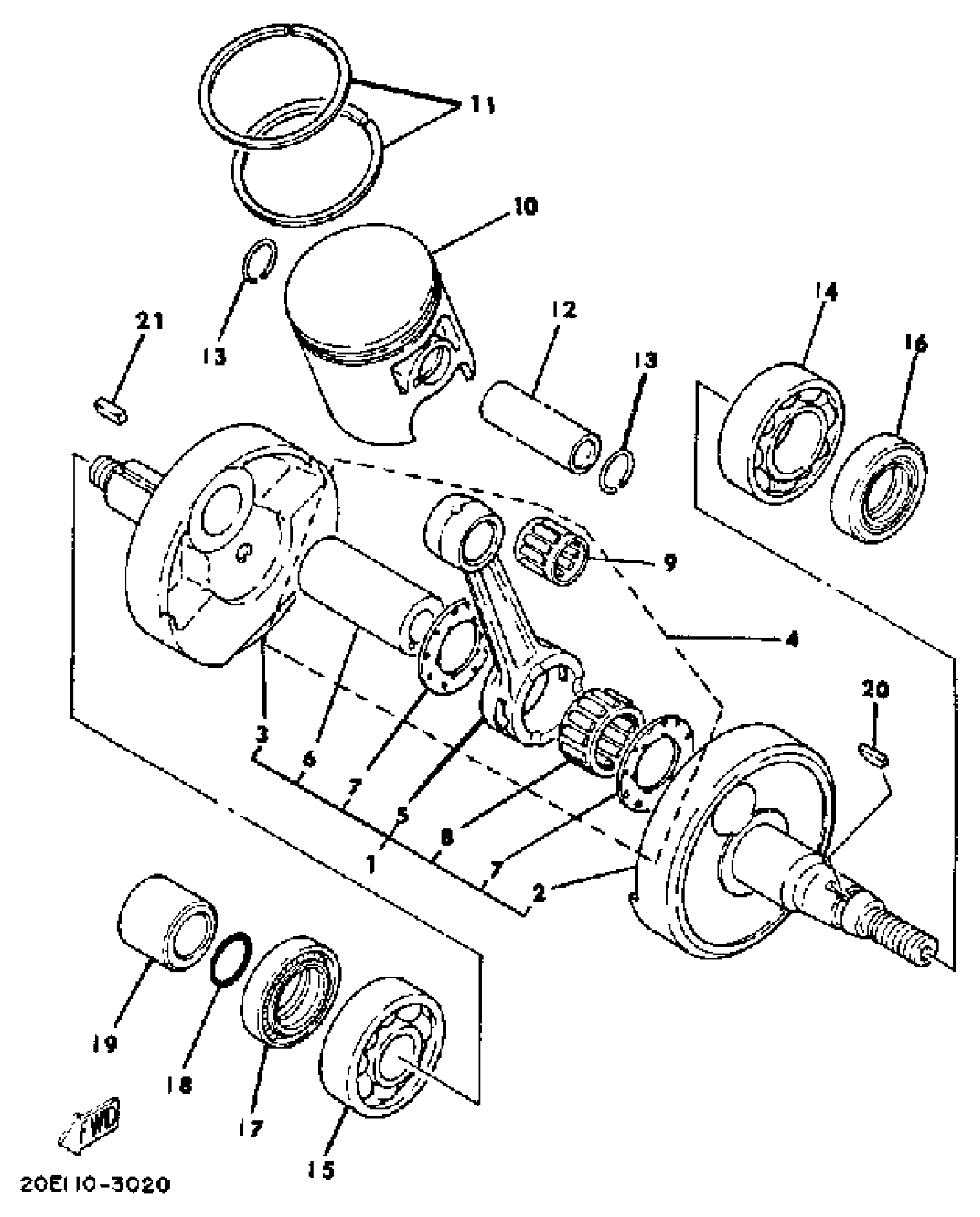

Yamaha YT175K 1983 CRANKSHAFT - PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
5V7-11400-00-00
Unavailable
2
CRANK 1
(5V7-11412-00-00)
Unavailable
3
CRANK 2
(5V7-11422-00-00)
Unavailable
4
CONNECTING ROD ASSEMBLY
(3R2-11650-10-00)
Unavailable
5
. ROD, CONNECTING
3R2-11651-01-00
Unavailable
7
WASHER (29L)
90209-22248-00
Unavailable
8
BEARING (3R3)
93310-422H0-00
Unavailable
10
PISTON STD
20E-11631-00-97
Unavailable
10
PISTON 1 O/S 0.25
20E-11635-00-00
Unavailable
10
PISTON 2 O/S 0.50
20E-11636-00-00
Unavailable
11
PISTON RINGSET STD
20E-11601-00-00
Unavailable
11
PISTON RINGSET 1ST
20E-11601-10-00
Unavailable
11
PISTON RINGSET 2ND
20E-11601-20-00
Unavailable
12
PIN, PISTON
251-11633-00-00
Unavailable
13
CIRCLIP (1L9)
93450-17044-00
Unavailable
14
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
15
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
16
OIL SEAL (5V6)
93103-25125-00
Unavailable
17
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
18
O-RING(3KX)
93210-180A6-00
Unavailable
19
COLLAR, DISTANCE (525)
90387-20488-00
Unavailable
20
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
21
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
