1982 Yamaha YT175J Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

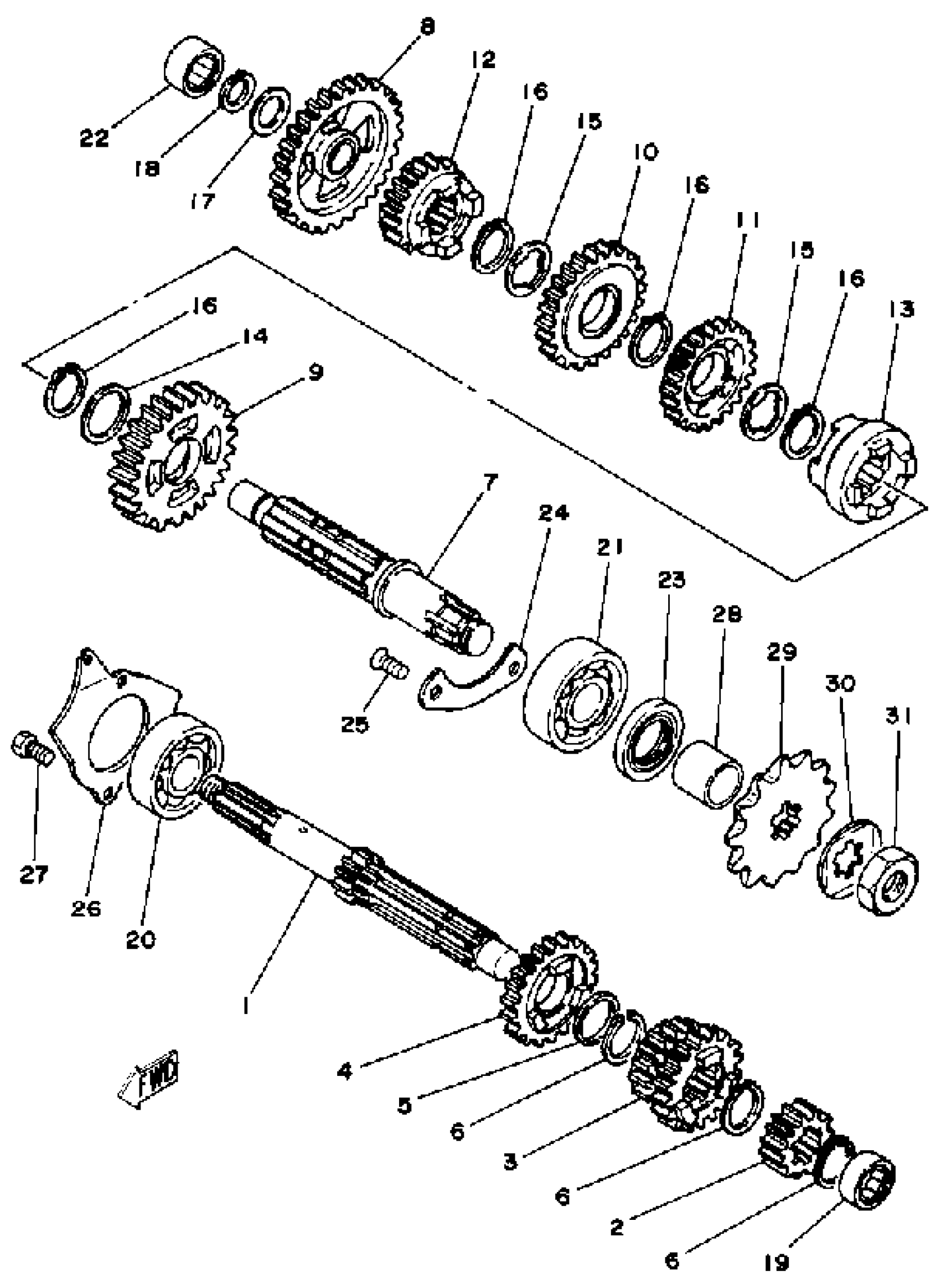

1982 Yamaha YT175J Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, MAIN

5V7-17411-00-00

1
Out of stock

2

GEAR, 2ND PINION

2A6-17121-00-00

1
Out of stock

3

GEAR, 3RD PINION

(5V7-17131-00-00)

1
Out of stock

4

GEAR, 5TH PINION

5V7-17151-01-00

1
Out of stock

5

WASHER PLATE 132172160000

90201-20266-00

1
Out of stock

6

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

7

AXLE, DRIVE

(3X3-17421-00-00)

1
Out of stock

8

GEAR, 1ST WHEEL

5V7-17211-00-00

1
Out of stock

9

GEAR, 2ND WHEEL

(5V7-17221-00-00)

1
Out of stock

10

GEAR, 3RD WHEEL

(5V7-17231-00-00)

1
Out of stock

11

GEAR, 4TH WHEEL

(5V7-17241-00-00)

1
Out of stock

12

GEAR, 5TH WHEEL

(5V7-17251-00-00)

1
Out of stock

13

CLUTCH, DOG

(5V7-17285-00-00)

1
Out of stock

14

WASHER, PLATE (537)

90201-22555-00

1
Out of stock

15

WASHER (537)

90209-18135-00

1
Out of stock

16

CIRCLIP (537)

93410-22039-00

—

$6.17

In stock

17

WASHER (566)

90201-15701-00

—

$6.17

In stock

18

CIRCLIP

93440-15012-00

—
Out of stock

19

—

$38.21

In stock

20

BEARING(4HM)

93306-30317-00

—

$33.54

In stock

21

BRG,R-B 6304 52MM 150G NT

93306-30411-00

—

$51.96

In stock

22

BEARING, CYLINDRICAL(2TV)

93311-31567-00

—
Out of stock

23

OIL SEAL (26X38X5-181)

93102-26042-00

—

$4.20

In stock

24

PLATE 2, BEARING COVER

1W1-15381-00-00

—

$4.11

In stock

25

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

1
Out of stock

26

PLATE, BEARING COVER

1W1-17471-01-00

—

$5.32

In stock

27

BOLT (661)

97013-06012-00

—

$4.71

In stock

28

COLLAR

90387-207E3-00

1
Out of stock

29

SPROCKET, DRIVE 11T

93832-11007-00

1
Out of stock

30

WASHER, LOCK (1L8)

90215-16127-00

—

$8.91

In stock

31

NUT (1L8)

90179-16226-00

—

$7.46

In stock
