1982 Yamaha YT175J Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

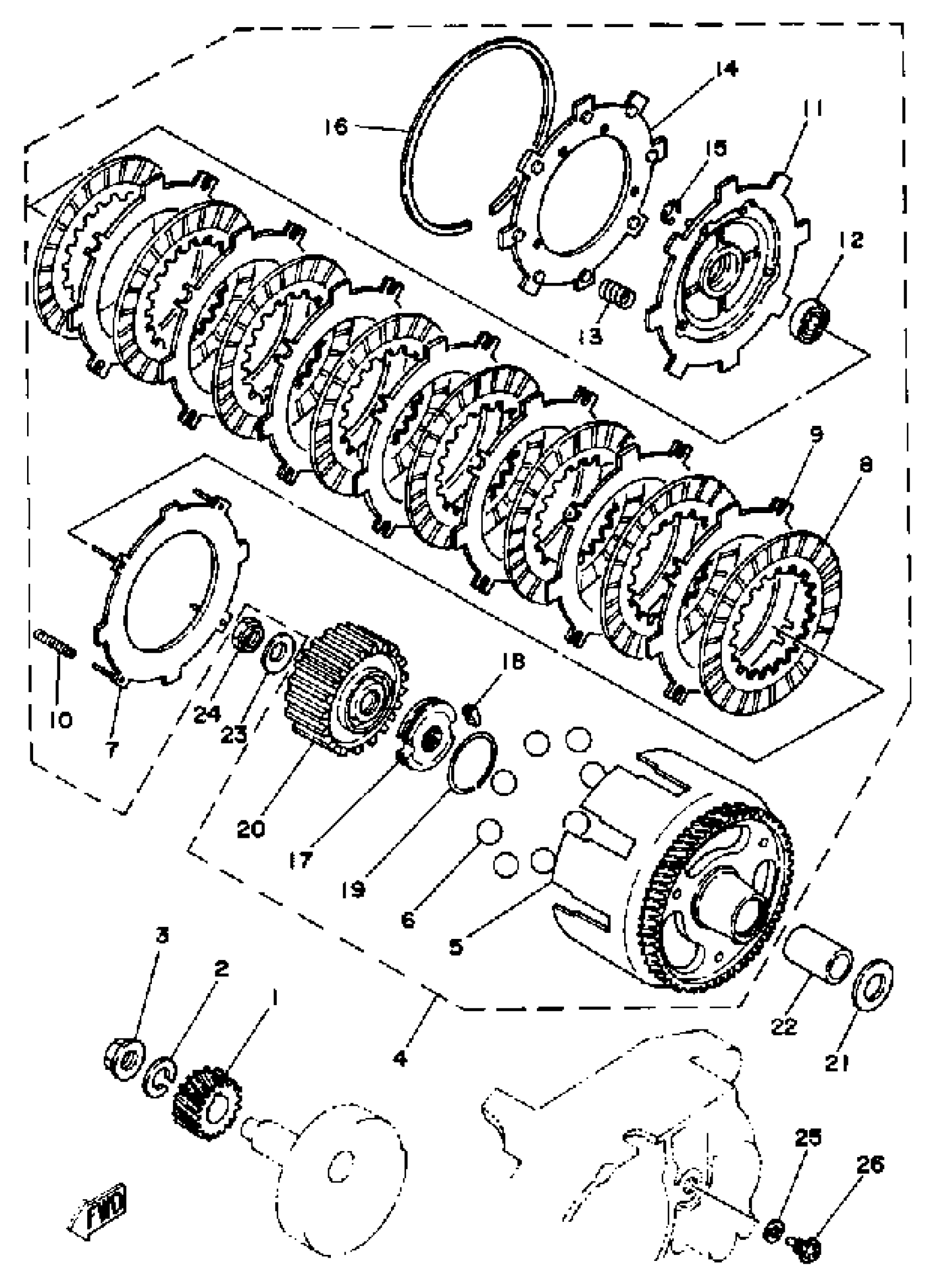

1982 Yamaha YT175J Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRI DRIVE

5V7-16111-00-00

1
Out of stock

2

WASHER, SPRING (1W1)

90204-12007-00

1

$6.92

In stock

3

NUT(1EE)

90179-12659-00

1

$5.37

In stock

4

UNAVAILABLE IN PRICE BOOK

(5V7-16300-00-00)

1
Out of stock

5

. PRI DRVN GEAR

5V7-16150-00-00

1
Out of stock

6

BALL (5/8INCH) (527 CKD)

93505-08030-00

1

$6.68

In stock

7

. PLATE, THRST WEIGHT

5V6-16520-00-00

1
Out of stock

8

. PLATE, FRICTION

3X3-16521-00-00

1
Out of stock

9

. PLATE, CLUTCH 1

3X3-16524-00-00

1
Out of stock

9

. PLATE, CLUTCH 1

3X3-16524-10-00

1
Out of stock

9

. PLATE, CLUTCH 1

3X3-16524-20-00

1
Out of stock

10

. SPRING, COMPRESSION

90501-10657-00

1
Out of stock

11

. PRESSURE PLATE ASSEMBLY

3X3-16550-00-00

1
Out of stock

12

BRG,R-B 6000 26MM 19G KY

93306-00004-00

1

$31.81

In stock

13

. SPRING, COMPRESSION

90501-13647-00

1
Out of stock

14

. PLATE, PRESSURE 2

3X3-16561-00-00

1
Out of stock

15

CIRCLIP(6L5)

99080-03600-00

1

$3.26

In stock

16

. CIRCLIP, INNER

93451-25067-00

1
Out of stock

17

BOSS, ONEWAY

517-16180-00-00

—

$21.11

In stock

18

PAWL, ONE WAY

384-15635-00-00

—

$4.95

In stock

19

SPRING, PAWL

2T4-15637-01-00

—

$3.25

In stock

20

. BOSS, CLUTCH

5V6-16571-00-00

1
Out of stock

21

WASHER, PLATE (4V2)

90201-174E1-00

—

$6.71

In stock

22

SPACER (517)

90560-17146-00

—

$21.02

In stock

23

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

24

NUT(1EE)

90179-12659-00

1

$5.37

In stock

25

GASKET(3AJ)

90430-08204-00

—

$6.36

In stock

26

SCREW (1M1)

90149-08108-00

—

$12.06

In stock
