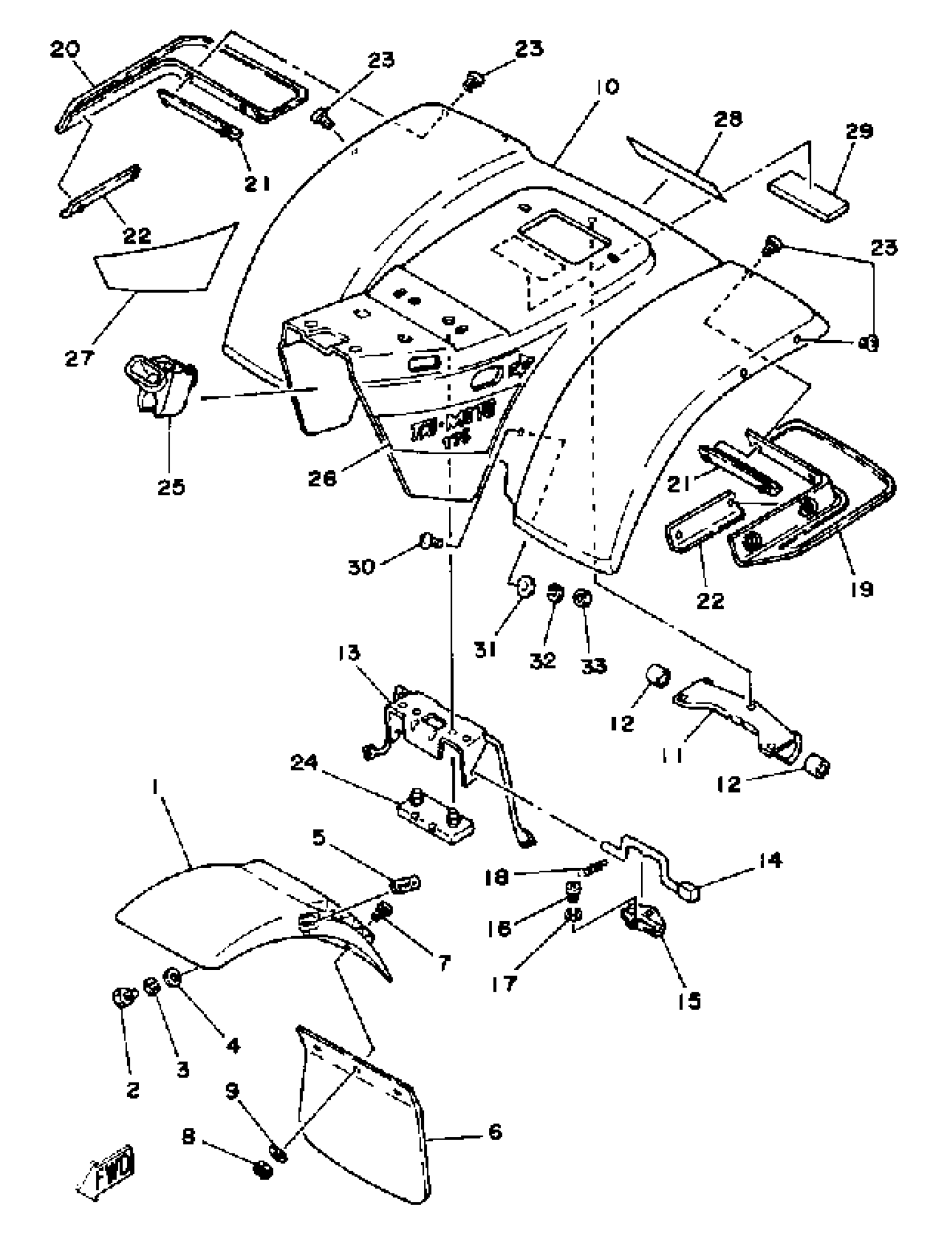

Yamaha YT175J 1982 FRONT FENDER - REAR FENDER Diagram
#
Description
Price
1
FENDER, FRONT
5V7-21511-00-00
Unavailable
3
WASHER, SPRING
92995-06100-00
Unavailable
5
WASHER, SPECIAL
5V7-21515-00-00
Unavailable
6
FLAP, FRONT FENDER
3X3-21521-00-00
Unavailable
10
FENDER, REAR
3X3-21611-00-00
Unavailable
11
BRACKET, RR FENDER
3X3-21612-00-00
Unavailable
12
DAMPER 1
3X3-21638-00-00
Unavailable
13
GUIDE, MUD GUARD
5V6-21665-00-00
Unavailable
14
STAY, FENDER 1
5V6-21613-00-00
Unavailable
15
STAY, FENDER 2
5V6-21614-00-00
Unavailable
16
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
SPRING, TENSION
90506-12116-00
Unavailable
19
FLAP
3X3-21621-00-00
Unavailable
20
FLAP
3X3-21691-00-00
Unavailable
21
PLATE, FLAP FTNG 1
3X3-21623-00-00
Unavailable
22
PLATE, FLAP FTNG 2
3X3-21624-00-00
Unavailable
24
DAMPER 2
5V6-21639-00-00
Unavailable
25
DAMPER
5V6-21649-00-00
Unavailable
26
EMBLEM 2
(5V7-21782-00-00)
Unavailable
27
EMBLEM 3
5V7-21783-00-00
Unavailable
28
EMBLEM 4
3X3-21784-00-00
Unavailable
29
PATCH 1
5V6-21655-00-00
Unavailable
30
SCREW, BIND (J17)
98980-06020-00
Unavailable
31
WASHER, PLAIN (646)
92990-06600-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
NUT, HEXAGON
95380-06600-00
Unavailable
