1982 Yamaha YT175J Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1982 Yamaha YT175J, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

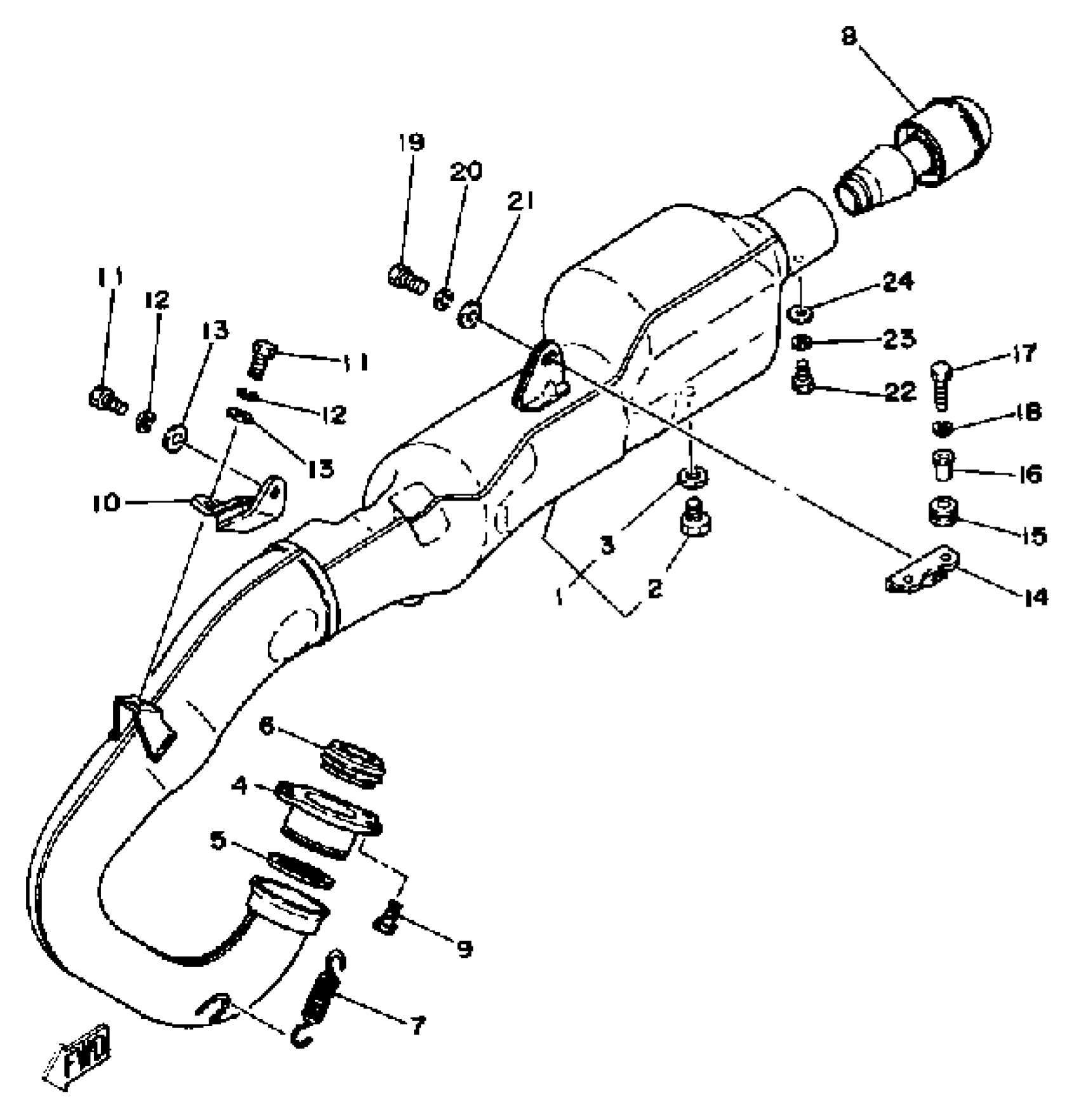

1982 Yamaha YT175J Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

20E-14610-00-00

1
Out of stock

2

BOLT, HEXAGON

(97301-10014-00)

1
Out of stock

3

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

4

NUT, RING

5V7-14622-01-00

1
Out of stock

5

RING

5V7-14633-00-00

1
Out of stock

6

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

7

1

$8.09

In stock

8

PIPE, OUTLET

5V7-14752-00-00

1
Out of stock

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

10

STAY, MUFFLER 2

2A6-14772-01-00

1
Out of stock

11

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

14

STAY, MUFFLER 1

5V7-14771-00-00

1
Out of stock

15

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

16

COLLAR

90387-06158-00

—

$6.17

In stock

17

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

21

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

22

BOLT (661)

97013-06012-00

—

$4.71

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
