Description

Price

1

. TAILLIGHT UNIT ASSEMBLY

5V7-84510-60-00

Unavailable

2

. TAILLIGHT UNIT ASSEMBLY

5V7-84510-60-00

Unavailable

3

. BULB

1M1-84514-60-00

Unavailable

4

GASKET, TAIL LENS

1K8-84523-00-00

Unavailable

5

LENS, TAIL LAMP

1K8-84521-00-00

$22.99

6

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$8.49

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WIRE, SUB-LEAD

87D-82318-00-00

Unavailable

10

WASHER, PLATE (462)

90202-14077-00

$4.29

11

GROMMET (462)

90480-14088-00

$5.60

12

SPACER

90560-07007-00

$9.49

13

WASHER PLATE 248217570000

90201-06074-00

$9.49

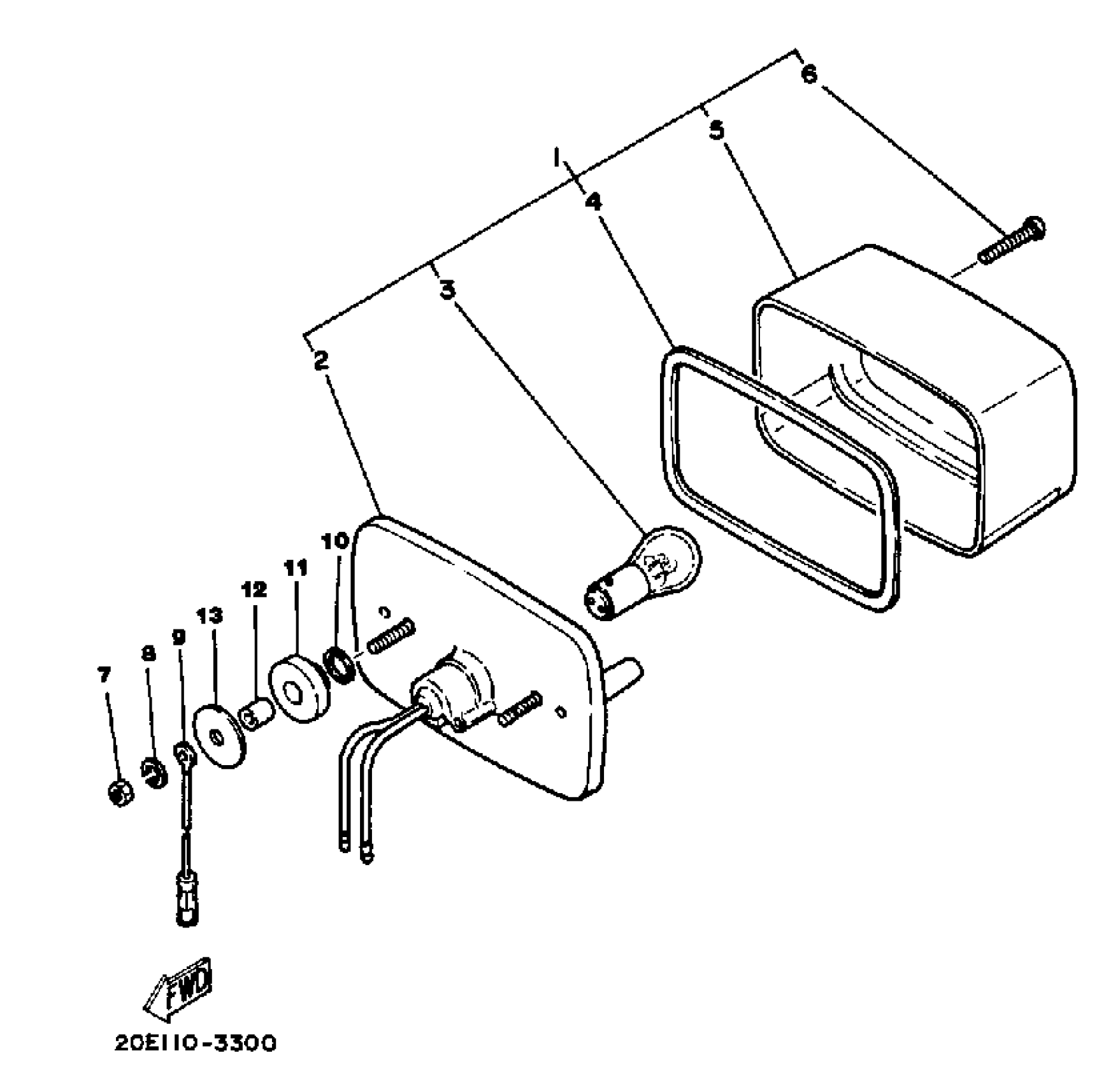

Yamaha YT125K 1983 TAILLIGHT Diagram

. TAILLIGHT UNIT ASSEMBLY

. TAILLIGHT UNIT ASSEMBLY

. BULB

GASKET, TAIL LENS

LENS, TAIL LAMP

YBS83-430 SCREW,PANH. TAPPING

NUT, HEXAGON

WASHER, SPRING

WIRE, SUB-LEAD

WASHER, PLATE (462)

GROMMET (462)

SPACER

WASHER PLATE 248217570000
