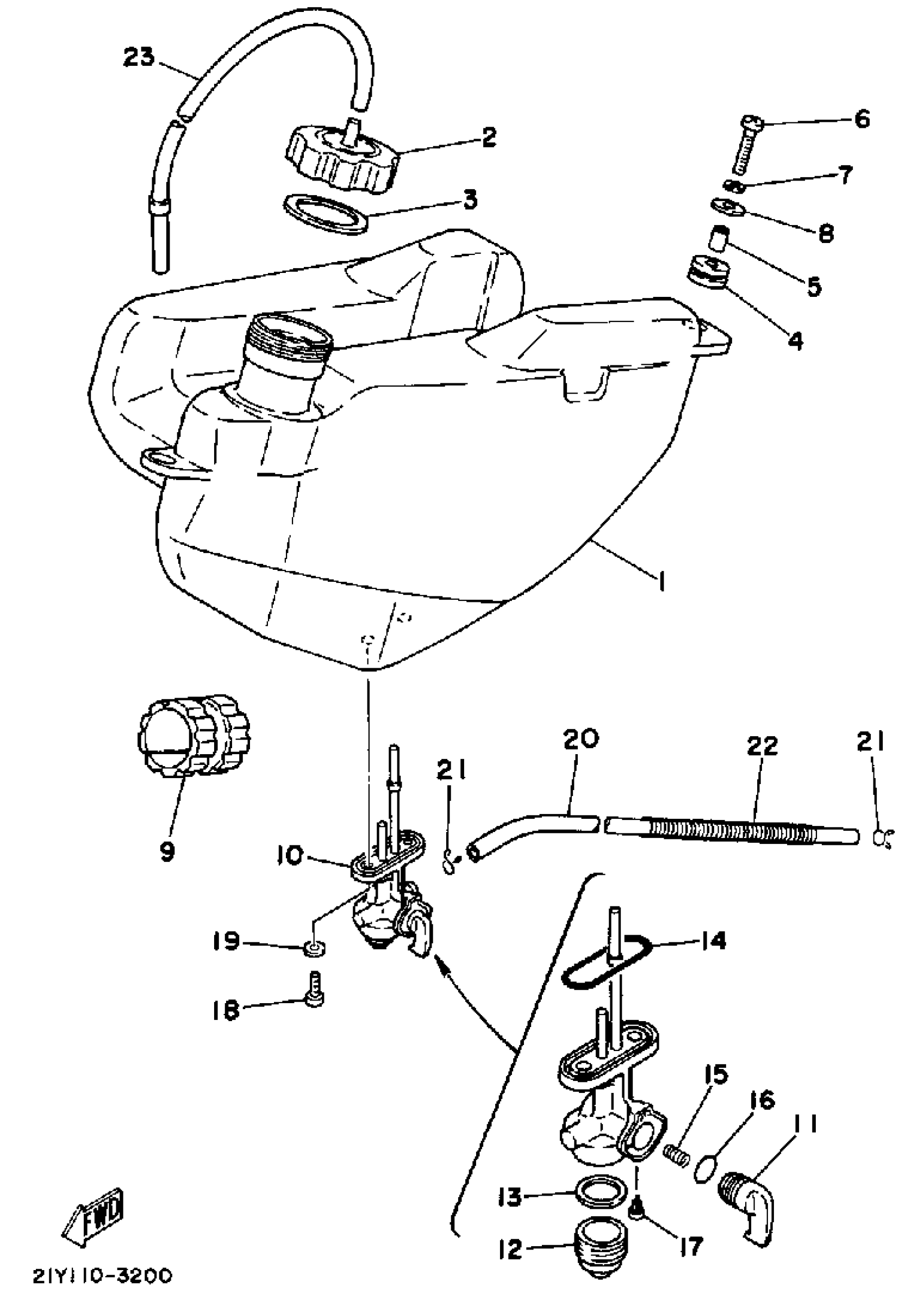

Yamaha YT125K 1983 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK
3X3-24110-00-00
Unavailable
2
BODY, CAP
1W1-24611-00-00
Unavailable
6
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
7
WASHER, SPRING
92995-06100-00
Unavailable
9
DAMPER, LOCATING 1
3X3-24181-00-00
Unavailable
10
FUEL COCK ASSEMBLY 1
3X3-24500-00-00
Unavailable
11
. LEVER, COCK
1A0-24524-01-00
Unavailable
12
. CUP, FILTER
1A0-24521-01-00
Unavailable
15
O-RING
1A0-24512-00-00
Unavailable
16
O-RING
1A0-24512-00-00
Unavailable
17
. SCREW, LEVER FITTING
619-24535-00-00
Unavailable
18
SCREW 256241430000
90149-06011-00
Unavailable
19
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
20
HOSE (L865)
90445-09021-00
Unavailable
21
CLIP 101235600
90467-08003-00
Unavailable
22
SPRING, COMPRESSION (10L)
90501-08668-00
Unavailable
23
HOSE (L545)
90445-09361-00
Unavailable
