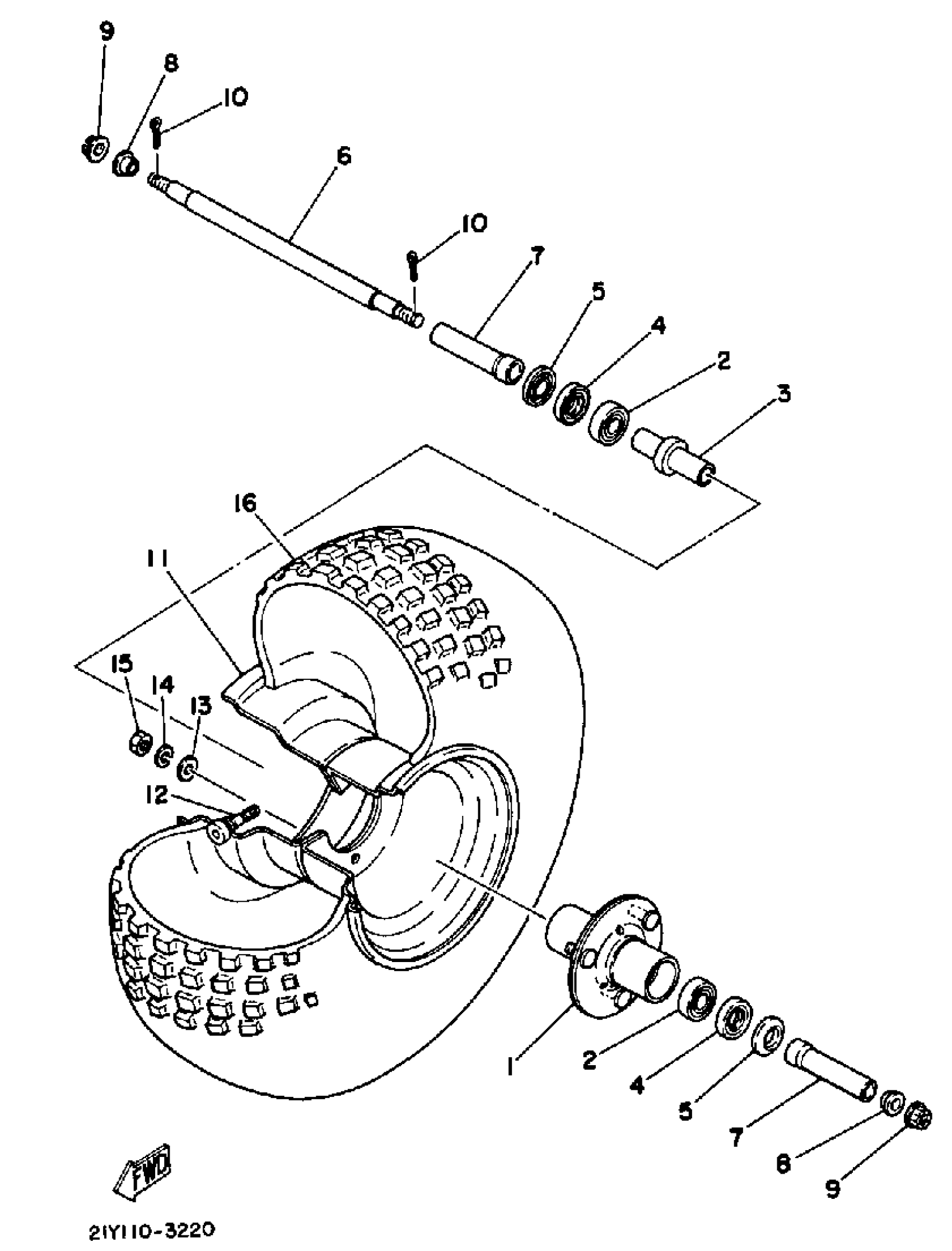

Yamaha YT125K 1983 FRONT WHEEL Diagram

HUB, FRONT

3X3-25111-00-00

Unavailable

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

SPACER, BEARING

3X3-25117-00-00

Unavailable

OIL SEAL (5V6)

93102-23252-00

$14.99

COVER, HUB DUST

5V6-25118-00-00

Unavailable

AXLE, WHEEL

3X3-25181-00-00

Unavailable

COLLAR, WHEEL

5V6-25186-00-00

Unavailable

FLANGE, SPACER 2

3X3-25116-00-00

Unavailable

NUT, CASTLE(3SB)

90171-12050-00

Unavailable

PIN, COTTER

91490-30030-00

$8.49

WHEEL, FRONT

29U-25180-00-35

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$16.99

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

NUT(624)

95380-10600-00

$3.50

22X11.00-8 KT221TL

94122-11572-00

Unavailable
