Description

Price

1

FRAME

(21Y-21110-00-33)

Unavailable

2

BOLT

90105-08024-00

$7.49

3

BOLT, FLANGE

95817-08100-00

$5.60

4

BOLT

90105-10037-00

Unavailable

5

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

6

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

7

PROTECTOR, ENGINE

(5V6-21471-00-33)

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, SPRING

92995-06100-00

Unavailable

10

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

11

BUMPER, REAR 1

5V6-28421-11-00

Unavailable

12

BOLT(JA9)

90101-08691-00

$4.29

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

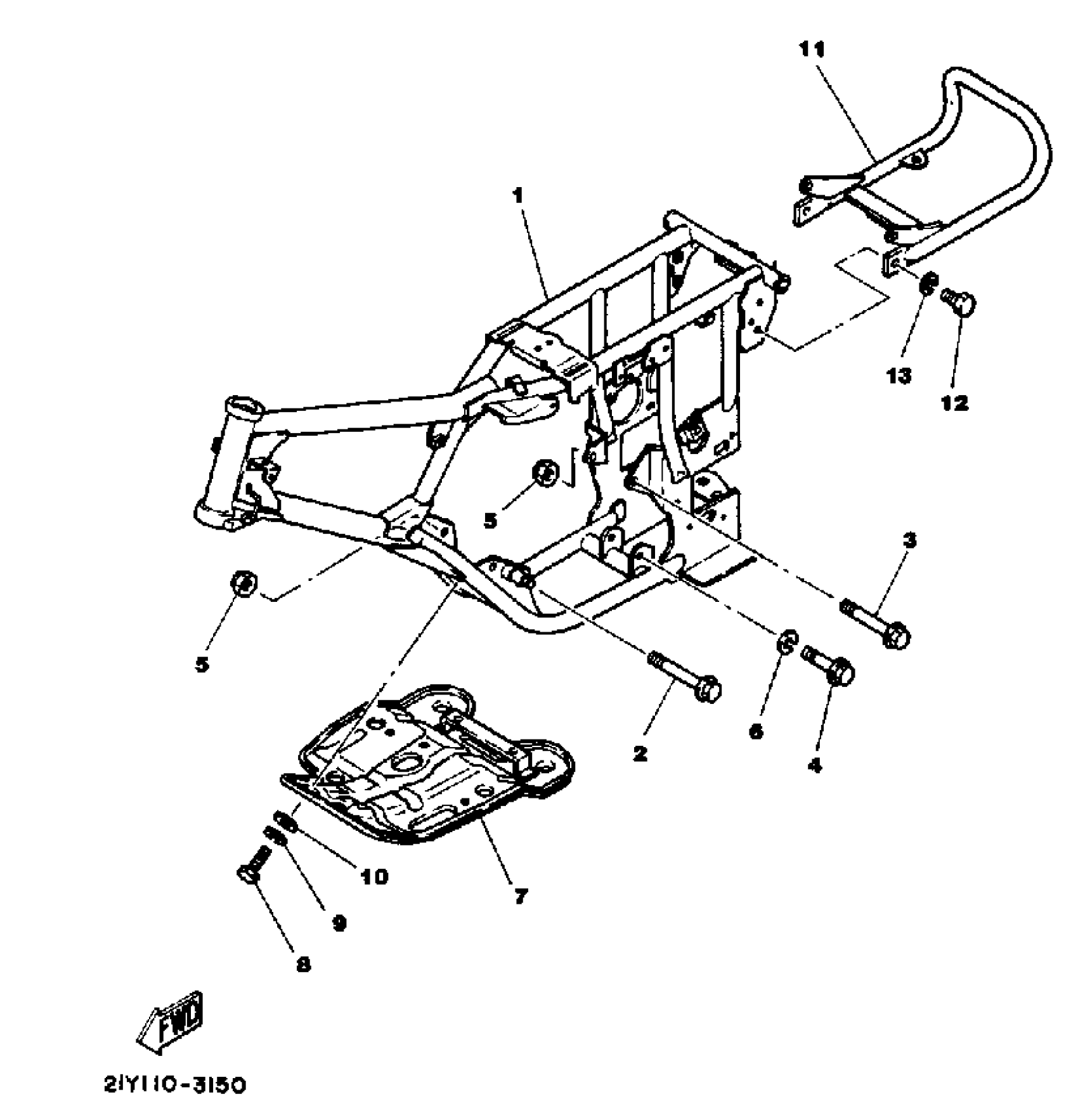

Yamaha YT125K 1983 FRAME Diagram

FRAME

BOLT

BOLT, FLANGE

BOLT

NUT, SELF-LOCKING (3Y2)

YBS67-10 WASHER, SPRING

PROTECTOR, ENGINE

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE (4H7)

BUMPER, REAR 1

BOLT(JA9)

YBS67-8 WASHER, SPRING
