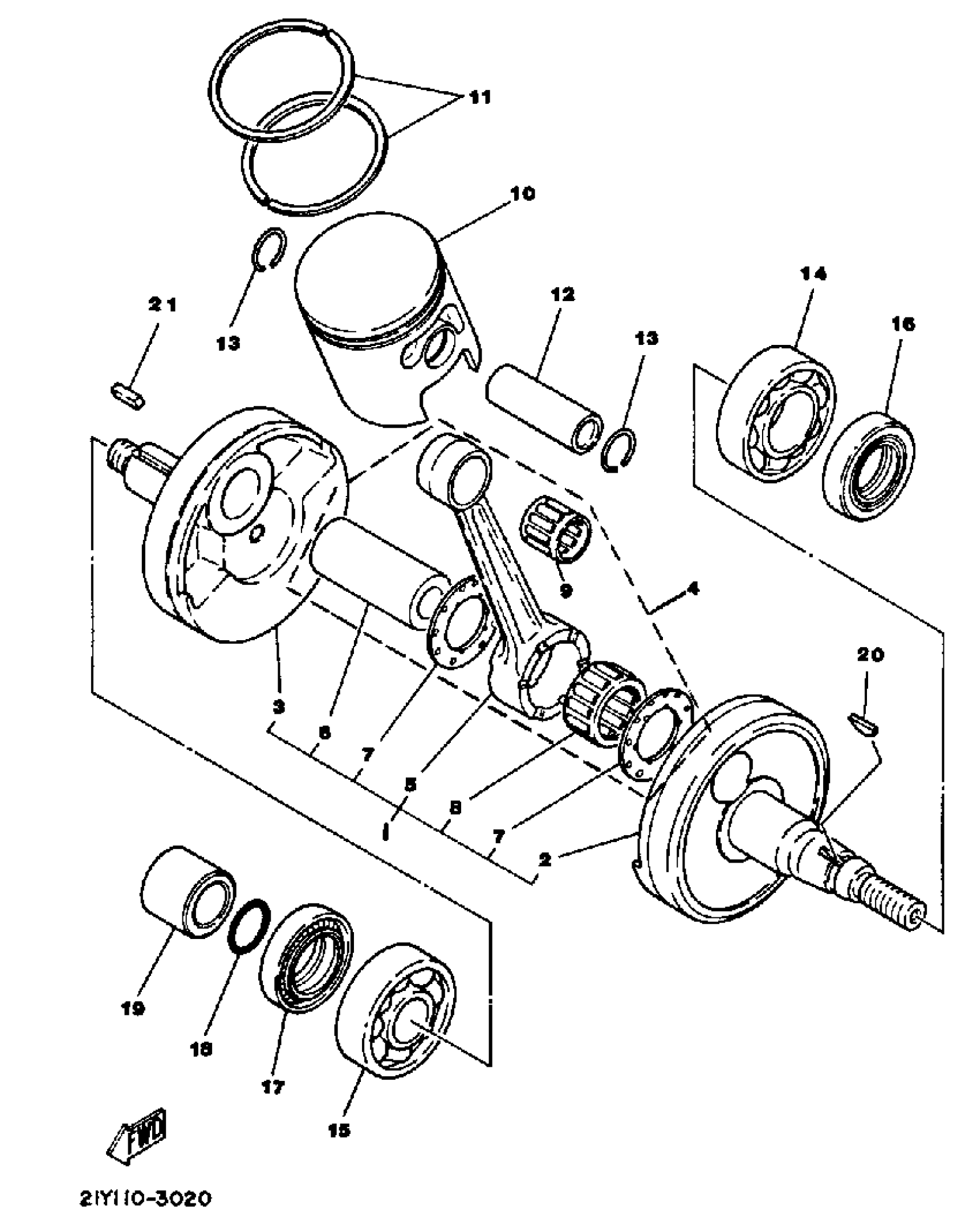

Yamaha YT125K 1983 CRANKSHAFT - PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSEMBLY
2N4-11400-00-00
Unavailable
2
CRANK (L.H)
1W1-11412-01-00
Unavailable
3
CRANK (R.H)
1W1-11422-01-00
Unavailable
4
.. CONNECTING ROD ASSEMBLY
2N4-11650-00-00
Unavailable
5
. ROD, CONNECTING 1
25V-11651-00-00
Unavailable
7
WASHER (29L)
90209-22248-00
Unavailable
8
BEARING, CYLIMDRICAL (4A7)
93310-422L0-00
Unavailable
10
. PISTON STD
3X3-11631-00-97
Unavailable
10
. PISTON 1 O/S 025
3X3-11635-00-00
Unavailable
10
. PISTON 2 O/S 050
3X3-11636-00-00
Unavailable
11
. PISTON RINGSET STD
3X3-11610-00-00
Unavailable
11
. PISTON RINGSET 1ST
3X3-11610-10-00
Unavailable
11
. PISTON RINGSET 2ND
3X3-11610-20-00
Unavailable
12
PIN, PISTON
137-11633-10-00
Unavailable
13
CIRCLIP (1L9)
93450-17044-00
Unavailable
14
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
15
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
16
OIL SEAL (5V6)
93103-25125-00
Unavailable
17
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
18
O-RING(3KX)
93210-180A6-00
Unavailable
19
COLLAR, DISTANCE (525)
90387-20488-00
Unavailable
20
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
21
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
