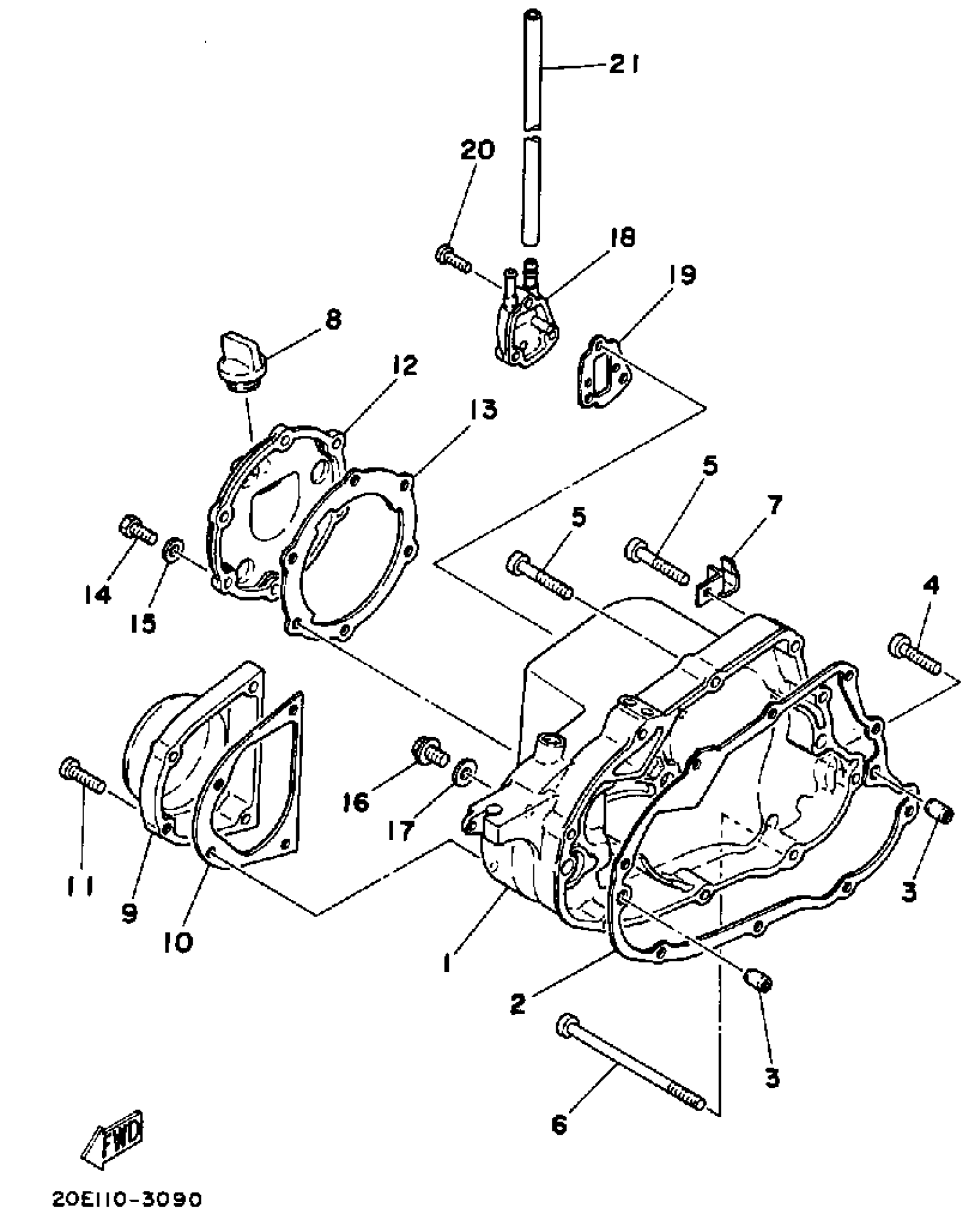

Yamaha YT125K 1983 CRANKCASE COVER Diagram
#
Description
Price
1
COVER, CRANKCASE 3
(5V6-15431-02-00)
Unavailable
4
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
6
SCREW,PAN HEAD
98507-06115-00
Unavailable
7
CLAMP
90465-06176-00
Unavailable
8
PLUG, OIL
116-15363-00-00
Unavailable
9
COVER, OIL PUMP
2A6-15416-00-00
Unavailable
12
COVER, SHIFTER (3X3-15429-00)
3X3-15429-01-00
Unavailable
13
GASKET,SHFTR COVER
3X3-15459-10-00
Unavailable
15
WASHER, PLATE
(90201-06600-00)
Unavailable
16
BOLT, FLANGE
95817-08012-00
Unavailable
17
GASKET
90430-08023-00
Unavailable
18
COVER, CAP
3X3-15417-00-00
Unavailable
19
GASKET, DRAIN
3X3-15343-10-00
Unavailable
20
SCREW, BIND(GA5)
98980-05018-00
Unavailable
21
TUBE, FLEXIBLE VINYL(8AT)
91A20-05145-00
Unavailable
