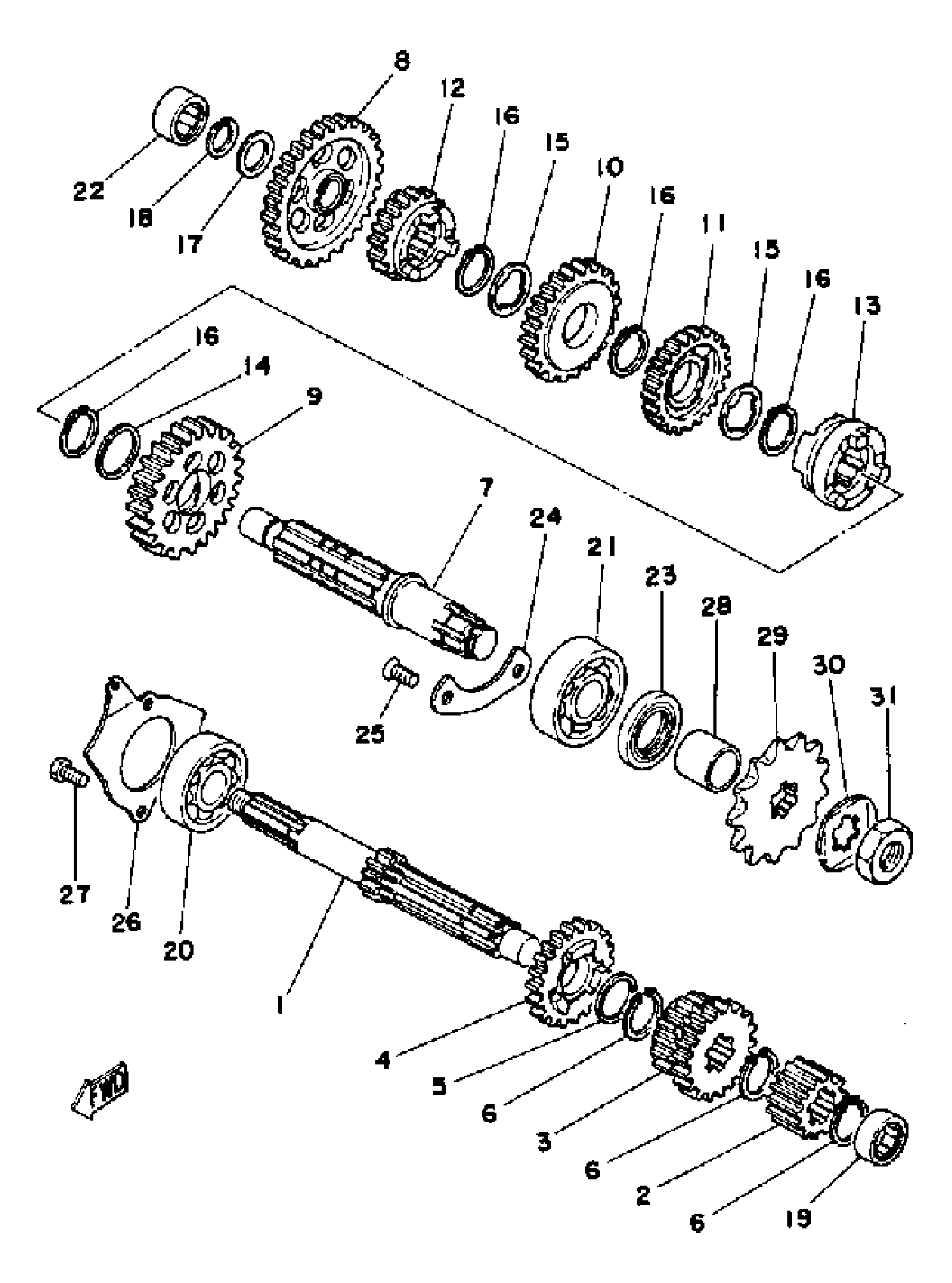

Yamaha YT125G 1980 TRANSMISSION YT125G - H - J Diagram
#
1
AXLE, MAIN
(3X3-17411-00-00)
Unavailable
1
AXLE, MAIN
5V6-17411-00-00
Unavailable
2
GEAR, 2ND PINION
2A6-17121-00-00
Unavailable
2
GEAR, 2ND PINION
(3X3-17121-00-00)
Unavailable
3
GEAR, 3RD PINION
3X3-17131-00-00
Unavailable
3
GEAR, 3RD PINION
4J3-17131-00-00
$51.99
4
GEAR, 5TH PINION
3X3-17151-00-00
Unavailable
5
WASHER PLATE 132172160000
90201-20266-00
$9.49
6
CIRCLIP (525)
93410-20038-00
$3.76
7
AXLE, DRIVE
(3X3-17421-00-00)
Unavailable
8
GEAR, 1ST WHEEL
3X3-17211-00-00
Unavailable
9
GEAR, 2ND WHEEL
(3X3-17221-00-00)
Unavailable
9
GEAR, 2ND WHEEL
(5V6-17221-00-00)
Unavailable
10
GEAR, 3RD WHEEL
(3X3-17231-00-00)
Unavailable
10
GEAR, 3RD WHEEL
4J3-17231-00-00
Unavailable
11
GEAR, 4TH WHEEL
3X3-17241-00-00
Unavailable
11
GEAR, 4TH WHEEL
4J3-17241-00-00
Unavailable
12
GEAR, 5TH WHEEL
3X3-17251-00-00
Unavailable
13
CLUTCH, DOG
(3X3-17285-00-00)
Unavailable
14
WASHER, PLATE (537)
90201-22555-00
Unavailable
15
WASHER (537)
90209-18135-00
Unavailable
16
CIRCLIP (537)
93410-22039-00
Unavailable
17
WASHER (566)
90201-15701-00
Unavailable
18
CIRCLIP
93440-15012-00
Unavailable
19
BRG,CYL-CAL ROLLER 16G KY (1W1
93311-41530-00
Unavailable
20
BEARING(4HM)
93306-30317-00
Unavailable
21
BRG,R-B 6304 52MM 150G NT
93306-30411-00
Unavailable
22
BEARING, CYLINDRICAL(2TV)
93311-31567-00
Unavailable
23
OIL SEAL (26X38X5-181)
93102-26042-00
Unavailable
24
PLATE 2, BEARING COVER
1W1-15381-00-00
Unavailable
25
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
Unavailable
26
PLATE, BEARING COVER
1W1-17471-01-00
Unavailable
27
BOLT (661)
97013-06012-00
Unavailable
28
COLLAR
90387-20796-00
Unavailable
28
COLLAR
90387-207E3-00
Unavailable
29
SPROCKET, DRIVE (13T)
93822-13213-00
Unavailable
29
SPROCKET, DRIVE 11T
93832-11007-00
Unavailable
30
WASHER, LOCK (1L8)
90215-16127-00
Unavailable
31
NUT (1L8)
90179-16226-00
Unavailable
