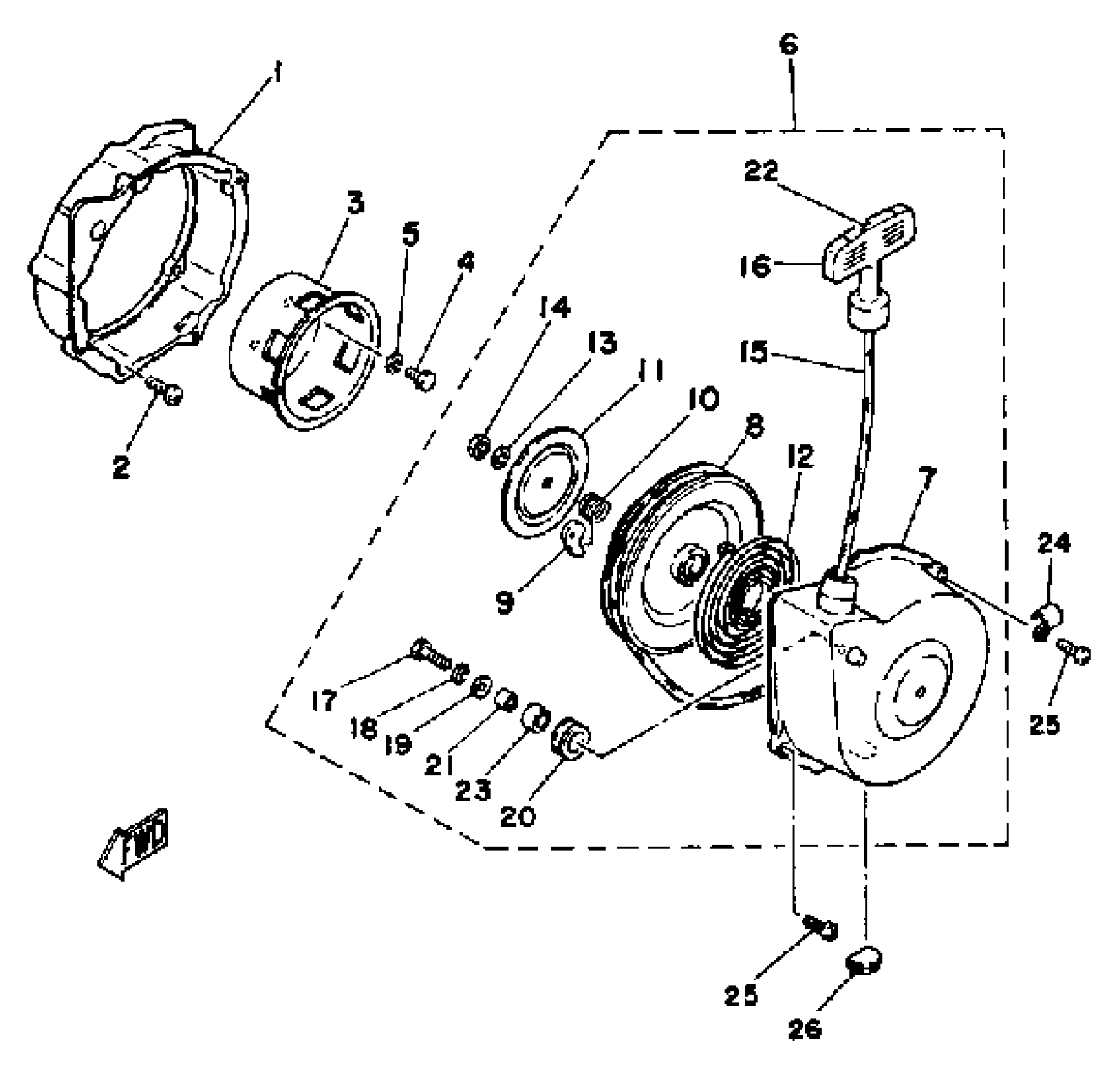

Yamaha YT125G 1980 STARTER YT125G - H - J Diagram
#
Description
Price
1
ADAPTOR
3X3-15787-00-00
Unavailable
2
SCREW PAN HEAD
98580-06020-00
$8.49
3
PULLEY, STARTER (3X3-15723-00)
3X3-15723-01-00
Unavailable
4
BOLT (661)
97013-06012-00
$5.60
5
WASHER, SPRING
92995-06100-00
Unavailable
6
STARTER ASSEMBLY
20E-15710-00-00
Unavailable
7
. CASE, STARTER
20E-15711-00-00
Unavailable
8
. DRUM, SHEAVE
3X3-15714-01-00
Unavailable
9
. PAWL, DRIVE
3X3-15741-00-00
Unavailable
10
. SPRING, DRIVE PLATE
3X3-15715-00-00
Unavailable
11
. PLATE, DRIVE
3X3-15716-00-00
Unavailable
12
. SPRING, STARTER
3X3-15713-00-00
Unavailable
13
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
14
. NUT
95380-08700-00
Unavailable
15
WIRE, STARTER (BRAIDED)
89A-15751-00-00
$33.99
16
HANDLE, STARTER
3X3-15755-00-00
Unavailable
17
BOLT, HEXAGON
97017-06025-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
. WASHER, LOCK
6F5-15791-00-00
Unavailable
20
. ROLLER, WIRE
663-15752-00-00
Unavailable
21
. BUSH
6F5-15753-00-00
Unavailable
22
CAP, KNOB
21V-15779-00-00
Unavailable
23
. BUSH 2
5V6-15754-00-00
Unavailable
24
CLAMP
90465-08028-00
Unavailable
25
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
25
SCREW PAN HEAD
98580-06020-00
$8.49
26
GROMMET (1T6)
90480-01209-00
Unavailable
26
GROMMET
90480-15312-00
Unavailable
