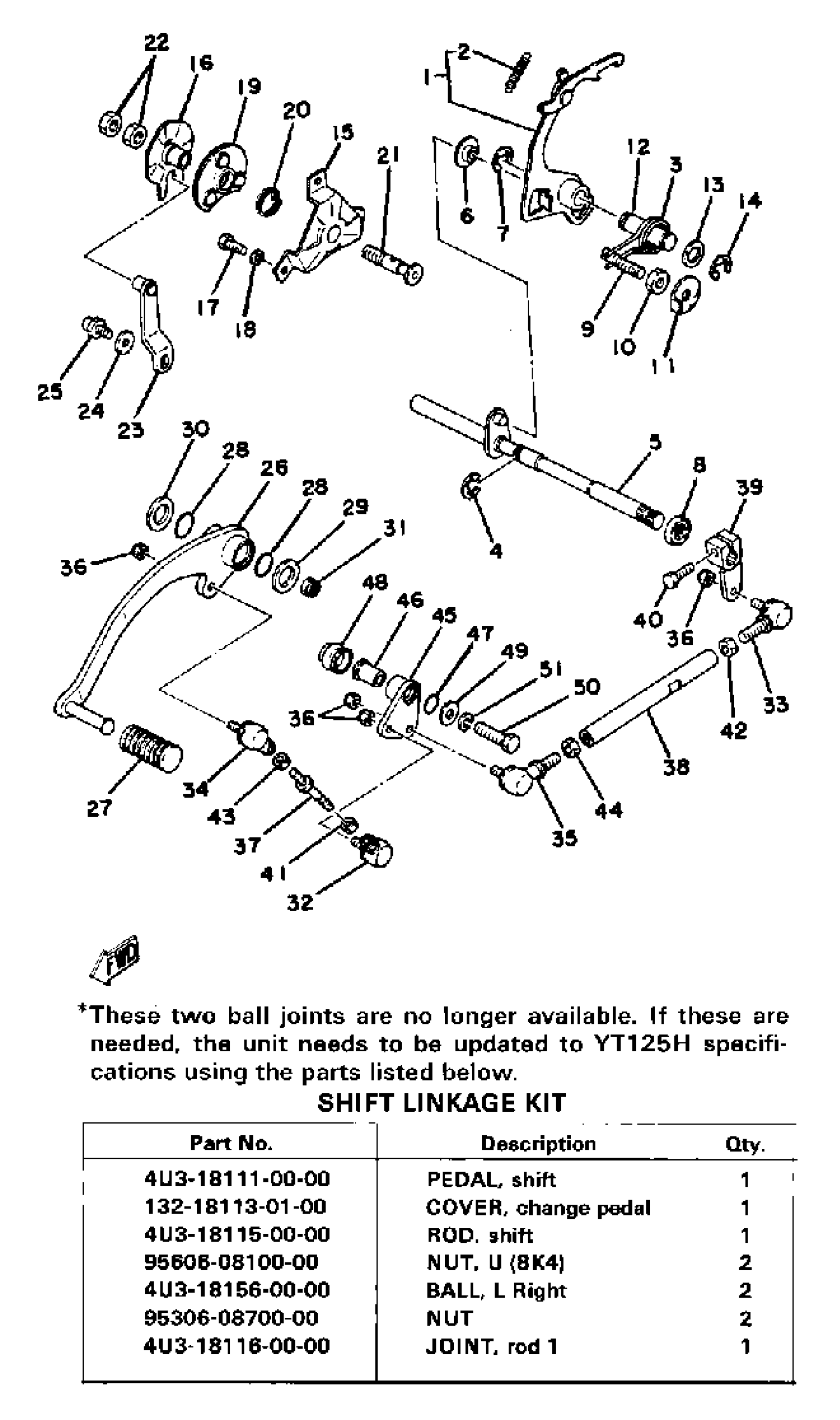

Yamaha YT125G 1980 SHIFT SHAFT - PEDAL YT125G Diagram
#
1
SHIFT LEVER ASSEMBLY
3X3-18120-00-00
Unavailable
2
SPRING, TENSION (1W1)
90506-08155-00
$10.49
3
SPRING, TORSION (1W1)
90508-32349-00
$10.49
4
CIRCLIP
99006-10600-00
$9.49
5
SHIFT SHAFT ASSEMBLY.1
3X3-18101-00-00
Unavailable
6
ROLLER, SHIFT LEVER
3X3-18178-00-00
Unavailable
7
CIRCLIP
99006-10600-00
$9.49
8
OIL SEAL
93101-12173-00
$13.49
9
SCREW (1W1)
90149-08111-00
Unavailable
10
NUT (583)
90170-08193-00
$4.29
11
WASHER LOCK 248181390000
90215-08014-00
$5.60
12
SHAFT, CHANGE STOPPER SPRING
1W1-18197-01-00
Unavailable
13
WASHER (692)
90201-12M34-00
Unavailable
14
CIRCLIP
99006-10600-00
$9.49
15
GUIDE
3X3-18179-00-00
Unavailable
16
GUIDE, SHIFT
3X3-18172-00-00
Unavailable
17
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
HOLDER, PAWL
3X3-18181-00-00
Unavailable
20
SPRING, COMPRESSION
90501-09581-00
Unavailable
21
BOLT, ADJUST
3X3-18176-00-00
Unavailable
22
NUT (682)
95380-10700-00
Unavailable
23
LEVER
3X3-18191-01-00
Unavailable
24
WASHER, PLATE
90201-06020-00
Unavailable
25
BOLT
90109-06560-00
Unavailable
26
PEDAL, SHIFT
3X3-18111-00-00
Unavailable
27
COVER, CHANGE PEDAL
132-18113-01-00
Unavailable
28
O-RING (22U)
93210-15566-00
Unavailable
29
WASHER, PLATE(8AT)
90201-081R9-00
Unavailable
30
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
31
NUT, U
95617-08100-00
Unavailable
32
BALL, L R
(3X3-18156-00-00)
Unavailable
33
BALL, L (R.H)
3X3-18156-10-00
Unavailable
34
BALL, L L
(3X3-18157-00-00)
Unavailable
35
BALL, L (L.H)
3X3-18157-10-00
Unavailable
36
NUT, SELF-LOCKING
95617-06100-00
Unavailable
37
ROD, SHIFT
(3X3-18115-00-00)
Unavailable
38
JOINT, ROD 2
3X3-18117-00-00
Unavailable
39
JOINT, ROD 1
3X3-18116-00-00
Unavailable
40
BOLT, HEXAGON
97017-06020-00
Unavailable
41
NUT(JN5)
95317-06700-00
Unavailable
42
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
43
NUT (2H9)
90170-06228-00
Unavailable
44
NUT
90170-08261-00
Unavailable
45
BRACKET
3X3-18128-00-00
Unavailable
46
COLLAR
90387-08797-00
Unavailable
47
O-RING(3LD)
93210-12790-00
Unavailable
48
COVER, DUST
(3X3-18154-00-00)
Unavailable
49
WASHER, PLATE(3XP)
90201-086P8-00
Unavailable
50
BOLT, HEXAGON
97017-08030-00
Unavailable
51
WASHER(JN5)
92907-08100-00
Unavailable
