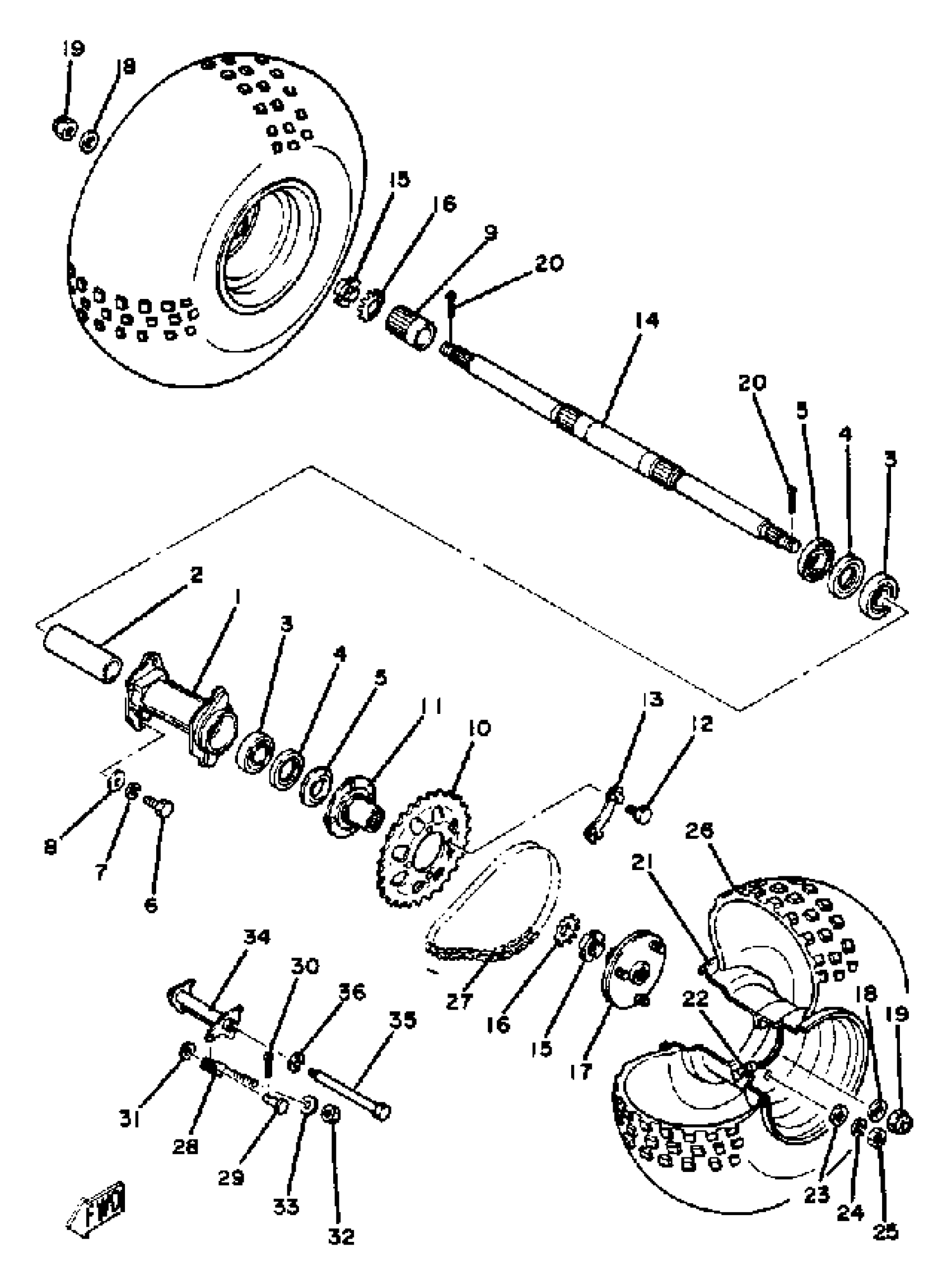

Yamaha YT125G 1980 REAR WHEEL YT125J Diagram
#
1
HUB, REAR
5V6-25311-00-00
Unavailable
2
SPACER
90560-35309-00
Unavailable
3
BRG,R-B 6007 62MM 150G KY
93306-00702-00
$61.99
4
OIL SEAL(3BC)
93106-42026-00
$14.99
5
COVER, HUB DUST
5V6-25367-00-00
$8.99
6
BOLT(6TD)
97017-10025-00
$8.49
7
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
8
WASHER, PLATE (3L6)
90201-10774-00
$9.49
9
COLLAR, SPRKT AXLE
5V6-25386-00-00
Unavailable
10
SPROCKET, DRVN 39T
5V6-25439-20-00
Unavailable
10
SPROCKET, DRVN 42T
5V7-25442-20-00
Unavailable
11
BOSS (5V6-25521-00)
5V6-25521-01-00
Unavailable
12
BOLT,HEXAGON
97017-10016-00
Unavailable
13
WASHER
5H0-25412-00-00
$5.49
14
AXLE, WHEEL
5V6-25381-00-00
Unavailable
15
NUT, SPEC''L SHAPE
90179-32365-00
Unavailable
16
WASHER, LOCK
90215-33195-00
Unavailable
17
COLLAR, WHEEL (3X3-25383-00)
5V7-25383-00-00
Unavailable
18
WASHER(3JP)
92903-20600-00
Unavailable
19
NUT, FLANGE
95707-20300-00
Unavailable
20
PIN, COTTER
91490-40045-00
Unavailable
21
WHEEL, FRONT
29U-25180-00-35
Unavailable
22
VALVE, RIM(2GH)
93900-00030-00
Unavailable
23
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
24
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
25
NUT(624)
95380-10600-00
Unavailable
26
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
26
22X11.00-8 KT221TL
94122-11572-00
Unavailable
27
SEALED CHAIN YT175
94580-40050-00
Unavailable
27
DID520V-48L SEALED
94581-18048-00
Unavailable
28
PULLER, CHAIN 2
5V6-25389-00-00
Unavailable
29
PIN, CLEVIS (24X)
90240-06103-00
Unavailable
30
PIN, COTTER
91490-20025-00
Unavailable
31
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
32
NUT, U
95617-08100-00
Unavailable
33
.. WASHER, PLATE
92990-08600-00
Unavailable
34
PULLER, CHAIN 1
5V6-25388-00-00
Unavailable
35
BOLT
90109-08639-00
Unavailable
36
YBS67-10 WASHER, SPRING
92990-10100-00
$7.49
