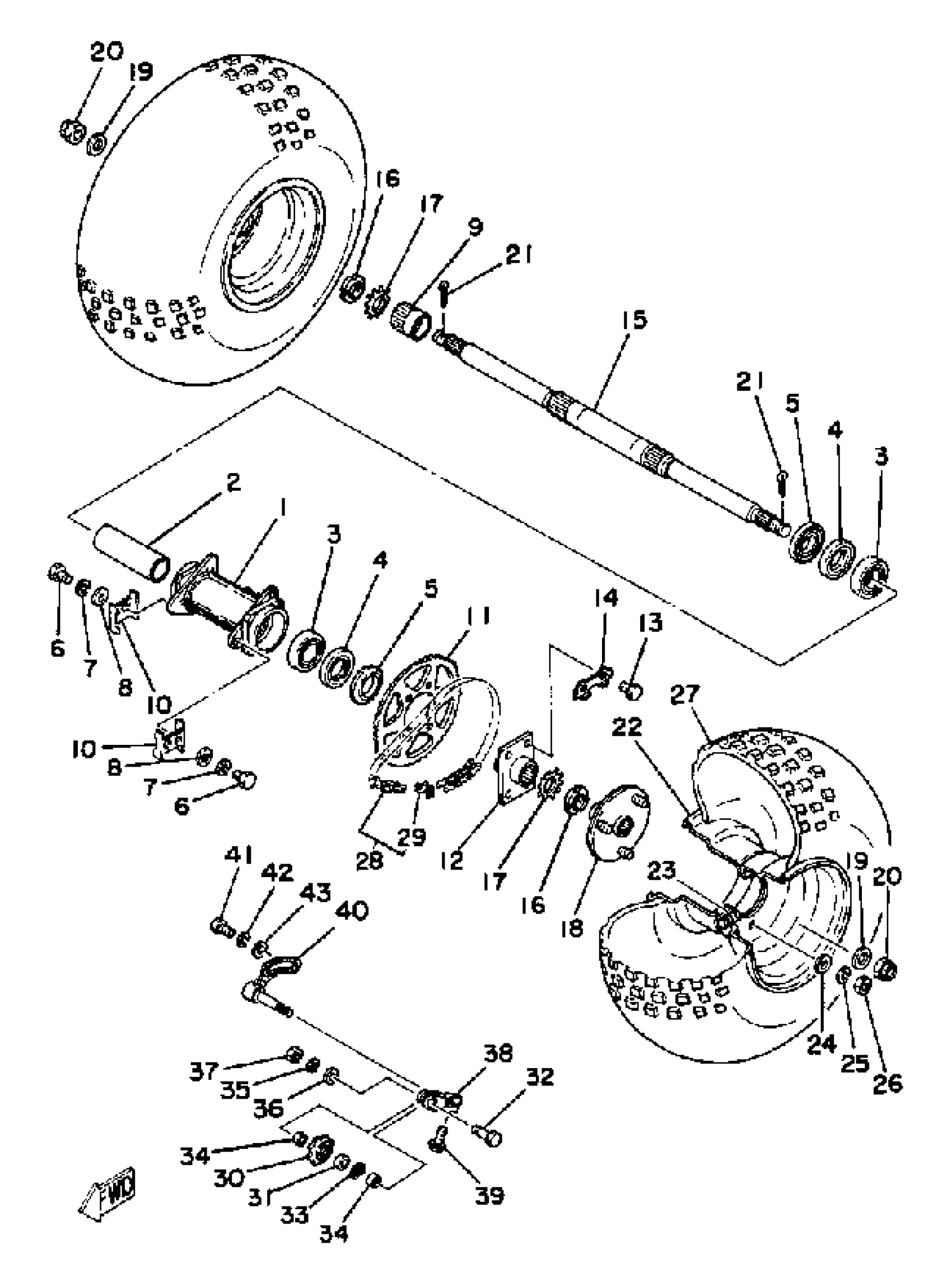

Yamaha YT125G 1980 REAR WHEEL YT125H Diagram
#
1
HUB, REAR
3X3-25311-00-00
Unavailable
2
SPACER, BEARING
3X3-25317-00-00
Unavailable
3
BRG,R-B 6007 62MM 150G KY
93306-00702-00
$61.99
4
OIL SEAL
93106-40041-00
$17.99
5
COVER, HUB DUST
3X3-25367-00-00
Unavailable
6
BOLT,HEXAGON
97027-08022-00
Unavailable
7
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
8
.. WASHER, PLATE
92990-08600-00
Unavailable
9
COLLAR, SPRKT AXLE
3X3-25386-00-00
Unavailable
10
STOPPER, HUB
(3X3-25318-01-00)
Unavailable
11
SPROCKET DRVN 49T
3X3-25449-01-00
Unavailable
12
BOSS
3X3-25521-00-00
Unavailable
13
BOLT(62E)
97013-08012-00
Unavailable
14
WASHER
3X3-25412-00-00
Unavailable
15
AXLE, WHEEL
(3X3-25381-00-00)
Unavailable
16
NUT, SPEC''L SHAPE
90179-32365-00
Unavailable
17
WASHER, LOCK
90215-33163-00
Unavailable
18
COLLAR, WHEEL (3X3-25383-00)
5V7-25383-00-00
Unavailable
19
WASHER(3JP)
92903-20600-00
Unavailable
20
NUT, SLOTTED
95302-20900-00
Unavailable
21
PIN, COTTER
91490-40045-00
Unavailable
22
WHEEL, FRONT
29U-25180-00-35
Unavailable
23
VALVE, RIM(2GH)
93900-00030-00
Unavailable
24
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
25
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
26
NUT(624)
95380-10600-00
Unavailable
27
22X11.00-8 KT221TL
94122-11572-00
Unavailable
28
CHAIN
94580-30060-00
Unavailable
28
SEALED CHAIN YT125
94580-35060-00
Unavailable
29
JOINT, CHAIN
94682-51001-00
Unavailable
30
SPROCKET, DRIVN 17T
3X3-25417-00-00
Unavailable
31
BEARING (3X3)
93300-60804-00
Unavailable
32
BOLT
90101-08476-00
Unavailable
33
CIRCLIP
99009-22500-00
Unavailable
34
COLLAR
90387-080A2-00
Unavailable
35
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
36
.. WASHER, PLATE
92990-08600-00
Unavailable
37
NUT(6L2)
95333-08600-00
Unavailable
38
PULLER, CHAIN 1
3X3-25388-01-00
Unavailable
39
BOLT, HEXAGON
97017-06020-00
Unavailable
40
CHAIN PULLER CMPLT
3X3-25380-00-00
Unavailable
41
BOLT(JA9)
90101-08691-00
Unavailable
42
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
43
WASHER (853)
90201-08326-00
Unavailable
