Description

Price

1

DISC, BRAKE

3X3-25711-00-00

Unavailable

2

BODY, CALIPER 1

3X3-25731-00-00

Unavailable

3

BODY, CALIPER 2

(3X3-25741-00-00)

Unavailable

4

BRAKE PAD KIT, FRNT (3X3-25811-00)

3X3-W0045-00-00

Unavailable

5

CAM

3X3-25728-00-00

Unavailable

6

SCREW, SPEC''L SHAPE

90149-08145-00

Unavailable

7

NUT(6L2)

95333-08600-00

$2.49

8

WASHER, PLATE (12X)

90201-087F0-00

$5.60

9

LEVER, BRAKE

3X3-25726-01-00

Unavailable

10

HOOK, SPRING

3X3-25736-00-00

Unavailable

11

PLATE, BACK UP

878-25733-00-00

Unavailable

12

OIL SEAL (3X3)

93102-15212-00

$9.49

13

BOLT, WASHER BASED(65J)

90105-10M75-00

$7.49

14

WASHER, PLATE

92990-10600-00

Unavailable

15

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

16

NUT(624)

95380-10600-00

Unavailable

17

SPRING, TENSION (3X3)

90506-16215-00

Unavailable

18

COVER 1

(3X3-25715-00-00)

Unavailable

19

COVER 2

(3X3-25716-00-00)

Unavailable

20

RIVET, SPEC''L SHAPE

90269-06026-00

Unavailable

21

SCREW, PAN

98507-06014-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable

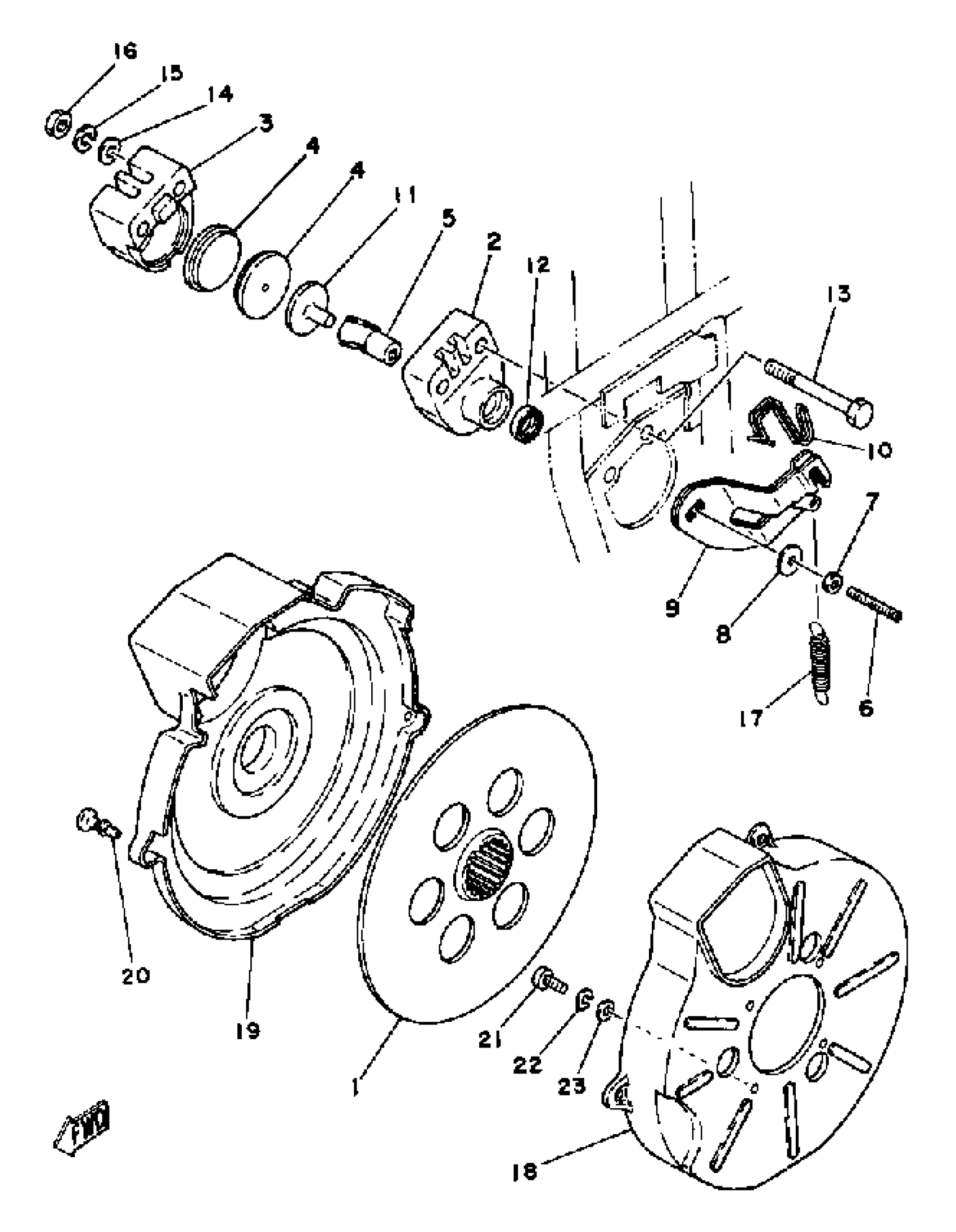

Yamaha YT125G 1980 REAR BRAKE CALIPER YT125H Diagram

DISC, BRAKE

BODY, CALIPER 1

BODY, CALIPER 2

BRAKE PAD KIT, FRNT (3X3-25811-00)

CAM

SCREW, SPEC''L SHAPE

NUT(6L2)

WASHER, PLATE (12X)

LEVER, BRAKE

HOOK, SPRING

PLATE, BACK UP

OIL SEAL (3X3)

BOLT, WASHER BASED(65J)

WASHER, PLATE

YBS67-10 WASHER, SPRING

NUT(624)

SPRING, TENSION (3X3)

COVER 1

COVER 2

RIVET, SPEC''L SHAPE

SCREW, PAN

WASHER, SPRING

WASHER, PLAIN (646)
