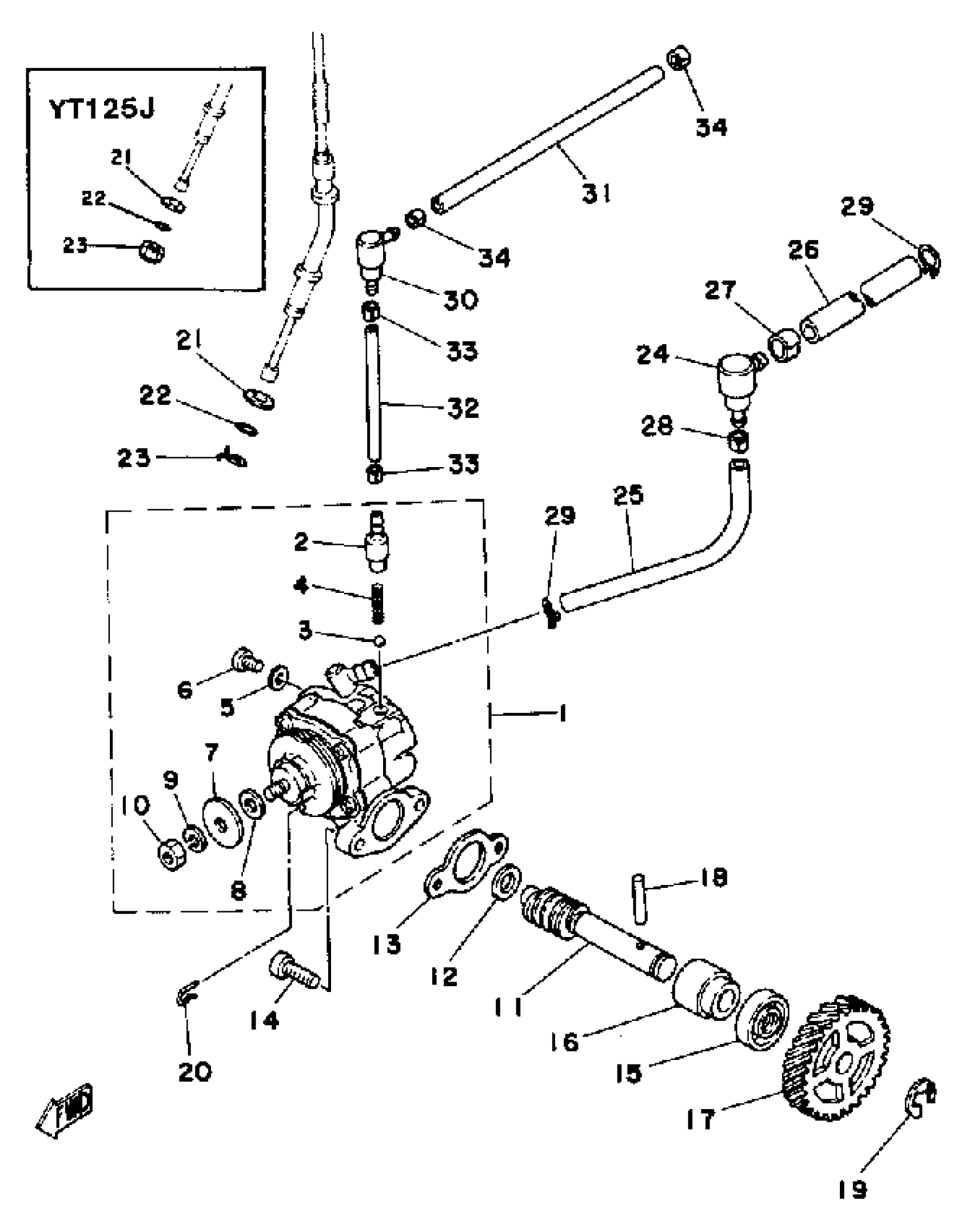

Yamaha YT125G 1980 OIL PUMP YT125G - H - J - Diagram
#
1
OIL PUMP ASSEMBLY
3X3-13101-00-00
Unavailable
2
NOZZLE
402-13552-00-00
Unavailable
3
BALL
93505-32002-00
$2.92
4
SPRING (278-13169-00)
90501-02018-00
$9.49
5
GASKET 137131870000
90430-04004-00
$9.49
6
SCREW, BIND
98980-04008-00
Unavailable
7
PLATE, ADJUSTING
137-13138-01-00
Unavailable
8
SHIM,PLUNGER
137-13137-00-03
$5.49
8
SHIM,PLUNGER
137-13137-00-05
$6.99
8
SHIM,PLUNGER
137-13137-00-10
$7.99
9
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
10
NUT, HEXAGON (663)
95380-05600-00
$8.49
11
SHAFT, WORM
3X3-13175-00-00
Unavailable
12
WASHER, PLATE (1E7)
90201-08624-00
Unavailable
13
GASKET, PUMP CASE
126-13116-01-00
$8.99
14
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
15
OIL SEAL (10X22X7-137)
93101-10002-00
Unavailable
16
METAL, WORM SHAFT OUTER
137-13176-00-00
Unavailable
17
GEAR, DRIVE
2A6-13178-00-00
Unavailable
18
PIN,DOWEL (137)
93603-22028-00
Unavailable
19
CIRCLIP(2R6)
99001-08600-00
Unavailable
20
CLIP (PUMP ADJUSTING PULLEY)
363-13133-01-00
Unavailable
20
CLIP
3X3-13133-00-00
Unavailable
21
.. WASHER, PLATE
92990-08600-00
Unavailable
22
O-RING (214)
93210-07100-00
Unavailable
23
NUT
90185-08055-00
Unavailable
23
CIRCLIP (2A6)
90468-08086-00
Unavailable
24
CONNECTOR, SCTN PPE
2A6-13115-01-00
Unavailable
25
HOSE (L200)
90445-07176-00
Unavailable
26
HOSE (L420)
90445-092K1-00
Unavailable
27
CLIP (2A6)
90468-02078-00
Unavailable
28
CLIP (2A6)
90468-02025-00
Unavailable
29
CLIP 101235600
90467-08003-00
Unavailable
30
CONCT, DELIVERY PPE
2A6-13164-01-00
Unavailable
31
HOSE (L200)
90445-05N13-00
Unavailable
32
HOSE (L200)
90445-05N13-00
Unavailable
33
CLIP (214-13164-00)
90468-02033-00
Unavailable
34
CLIP (214-13164-00)
90468-02033-00
Unavailable
