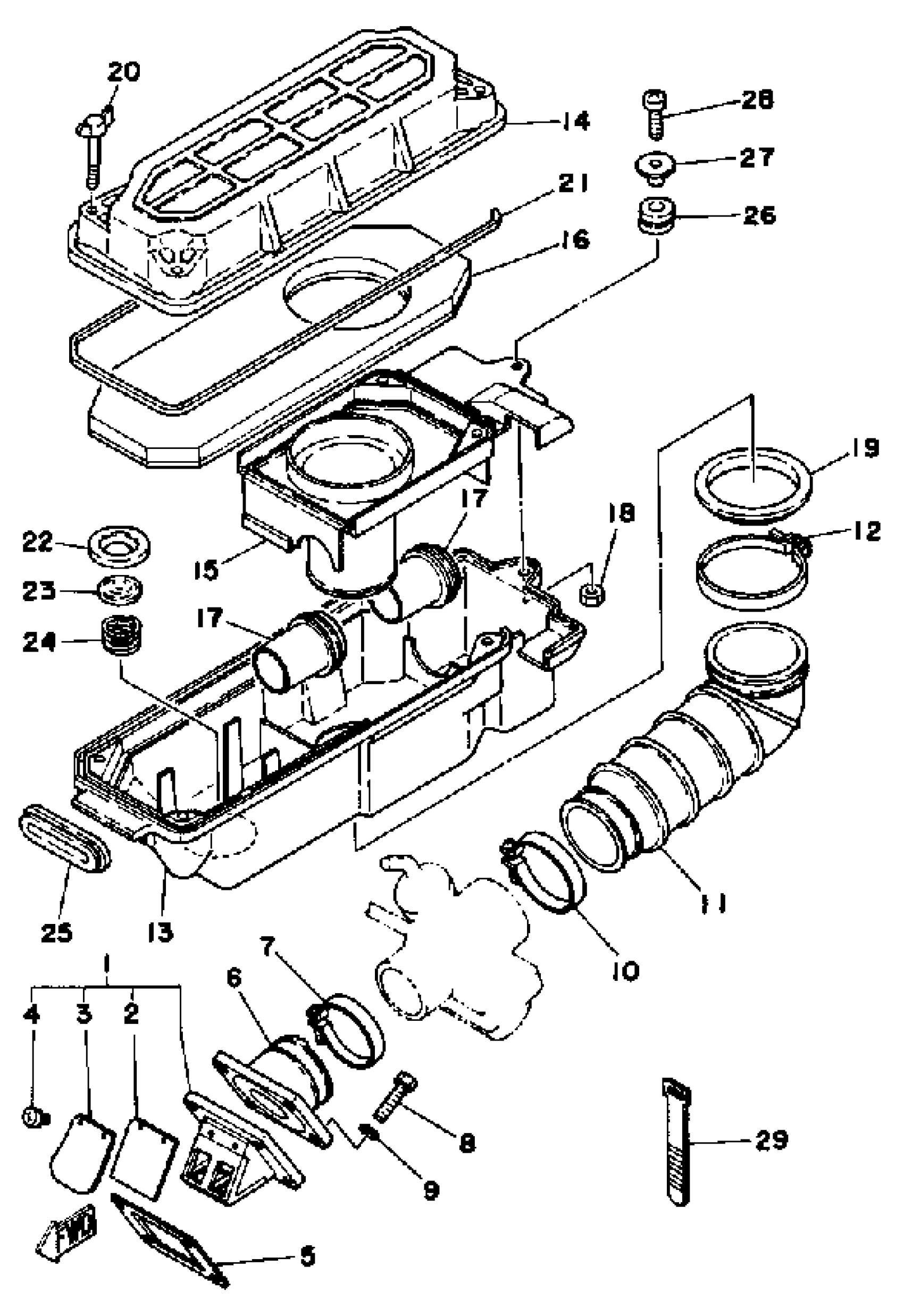

Yamaha YT125G 1980 INTAKE YT125G - H Diagram
#
Description
Price
1
REED VALVE ASSY
345-13610-20-00
$228.99
2
REED, VALVE
4X8-13613-10-00
Unavailable
3
. STOPPER, REED VALVE
3X3-13616-00-00
Unavailable
4
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
5
GASKET, VALVE SEAT
87A-13621-00-00
$8.99
6
JOINT, CARBURETOR 1
3X3-13586-00-00
Unavailable
7
CLAMP, HOSE (5H0)
90460-43179-00
$19.99
8
BOLT, HEXAGON
97017-06025-00
$4.24
9
WASHER, PLAIN (646)
92990-06600-00
$2.80
10
CLAMP HOSE 278144550000
90460-49058-00
$7.49
11
JOINT, AIR CLNR 1
3X3-14453-00-00
Unavailable
12
HOSE CLAMP ASSY
90450-58002-00
$16.99
13
CASE, AIR CLEANER 1
(3X3-14411-00-00)
Unavailable
14
CAP, CLEANER CASE 1
3X3-14412-00-00
Unavailable
15
DUCT
(3X3-14437-00-00)
Unavailable
16
ELEMENT, AIR CLNR (3X3-14451-00)
3X3-14451-90-00
Unavailable
17
PIPE
3X3-14419-00-00
Unavailable
18
NUT, HEXAGON
95380-06600-00
Unavailable
19
GROMMET
90480-59267-00
Unavailable
20
BOLT, WING
90122-06005-00
Unavailable
21
SEAL
3X3-14452-00-00
Unavailable
22
OIL SEAL, SO-TYPE
93104-18006-00
Unavailable
23
PLATE
3X3-14477-00-00
Unavailable
24
SPRING, COMPRESSION
90501-05588-00
Unavailable
25
GROMMET
90480-01266-00
Unavailable
26
GROMET (3X3)
90480-14229-00
Unavailable
27
COLLAR(735)
90387-06033-00
Unavailable
28
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
29
BAND, SWITCH CORD
437-83936-11-00
Unavailable
