Description

Price

1

FUEL TANK

3X3-24110-00-00

Unavailable

2

BODY, CAP

1W1-24611-00-00

Unavailable

3

PACKING, CAP

1W1-24612-00-00

$9.99

4

GROMMET(663)

90480-15064-00

$9.49

5

COLLAR

90387-06088-00

$1.22

6

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

9

DAMPER, LOCATING 1

3X3-24181-00-00

Unavailable

10

FUEL COCK ASSEMBLY 1

3X3-24500-00-00

Unavailable

11

. LEVER, COCK

1A0-24524-01-00

Unavailable

12

. CUP, FILTER

1A0-24521-01-00

Unavailable

13

GASKET, FILTER

498-24522-00-00

$39.99

14

GASKET, BODY

214-24512-00-00

$30.99

15

. SPRING

1A0-24529-01-00

Unavailable

16

O-RING

1A0-24512-00-00

Unavailable

17

. SCREW, LEVER FITTING

619-24535-00-00

Unavailable

18

SCREW 256241430000

90149-06011-00

Unavailable

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

HOSE (L865)

90445-09021-00

Unavailable

21

CLIP 101235600

90467-08003-00

Unavailable

22

SPRING, COMPRESSION (10L)

90501-08668-00

Unavailable

23

HOSE (L545)

90445-09361-00

Unavailable

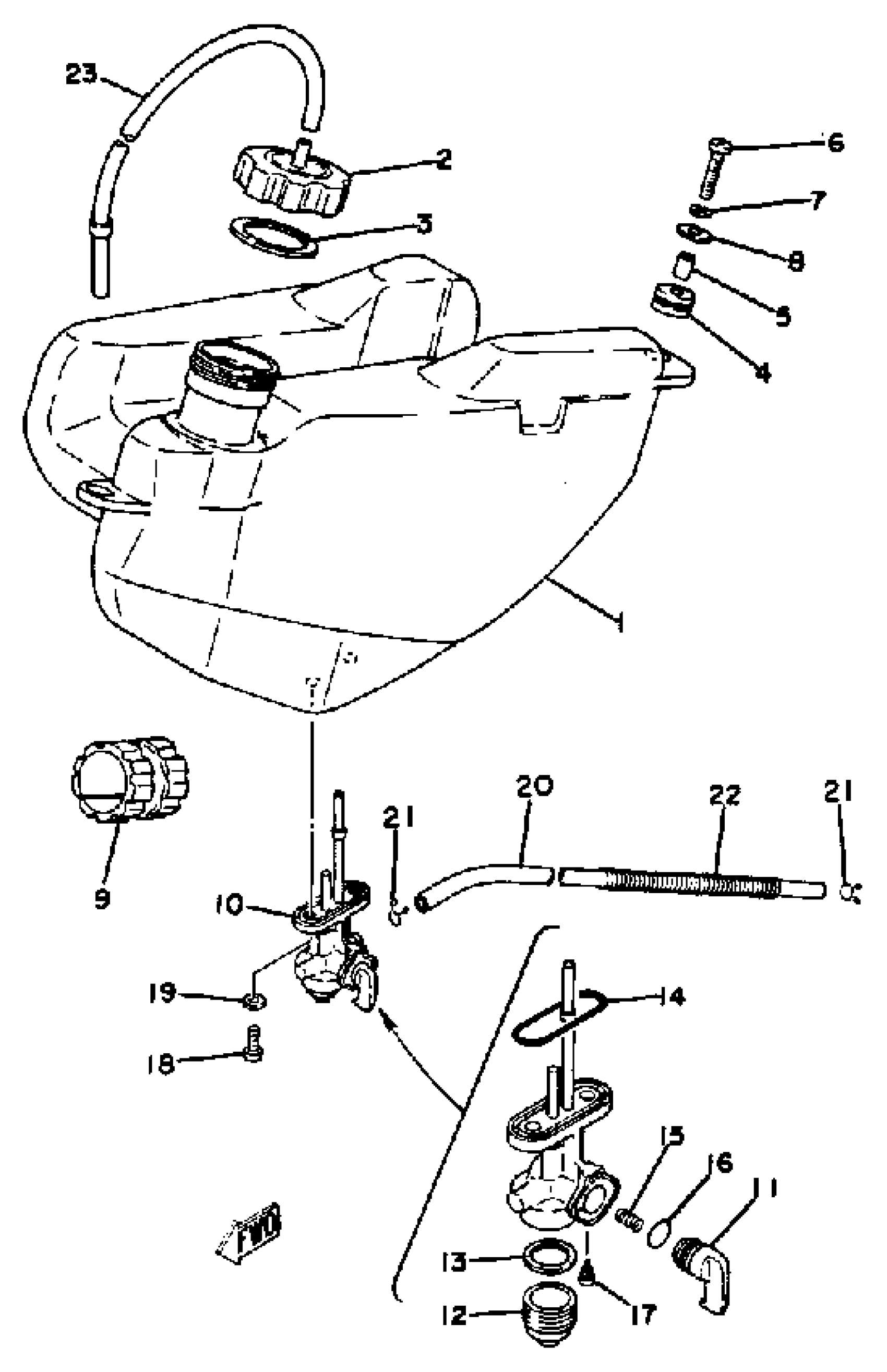

Yamaha YT125G 1980 FUEL TANK YT125G - H - J Diagram

FUEL TANK

BODY, CAP

PACKING, CAP

GROMMET(663)

COLLAR

SCREW, PAN HEAD(6E0)

WASHER, SPRING

WASHER, PLATE(36Y)

DAMPER, LOCATING 1

FUEL COCK ASSEMBLY 1

. LEVER, COCK

. CUP, FILTER

GASKET, FILTER

GASKET, BODY

. SPRING

O-RING

. SCREW, LEVER FITTING

SCREW 256241430000

WASHER, PLATE(3MB)

HOSE (L865)

CLIP 101235600

SPRING, COMPRESSION (10L)

HOSE (L545)
