Description

Price

1

FRONT FORK ASSEMBLY

4U3-23101-00-26

Unavailable

2

EMBLEM, YAMAHA

99244-00100-00

Unavailable

3

RACE, BALL 1

B6E-23411-00-00

$8.49

4

BALL

93501-04011-00

$8.49

5

RACE, BALL 2

B6E-23412-00-00

$13.49

6

RACE, BALL 2

BP2-23412-00-00

$7.49

7

BALL

93503-16003-00

$2.72

8

RACE, BALL 1

BP2-23411-00-00

$11.49

9

COVER, BALL RACE

122-23416-00-00

$7.99

10

NUT

90179-25004-00

$24.99

11

CROWN, HANDLE

3X3-23435-00-00

Unavailable

12

WASHER, PLATE

90201-252A5-00

Unavailable

13

NUT, FITTING 1

3X3-23453-00-00

Unavailable

14

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

15

WASHER PLATE (3L6)

90201-10742-00

$8.49

16

HOLDER, HANDLE UNDER

462-23442-00-98

Unavailable

17

HOLDER, HANDLE UPPER

462-23441-01-00

Unavailable

18

BOLT, FLANGE

95817-06035-00

Unavailable

19

WASHER, PLATE

92990-10600-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

21

NUT(624)

95380-10600-00

Unavailable

22

HOLDER, CABLE

4U3-23317-00-98

Unavailable

23

PANEL, FRONT

4U3-23391-00-00

Unavailable

24

SCREW, BIND (705)

98980-06016-00

Unavailable

25

EMBLEM 5

4U3-21785-00-00

Unavailable

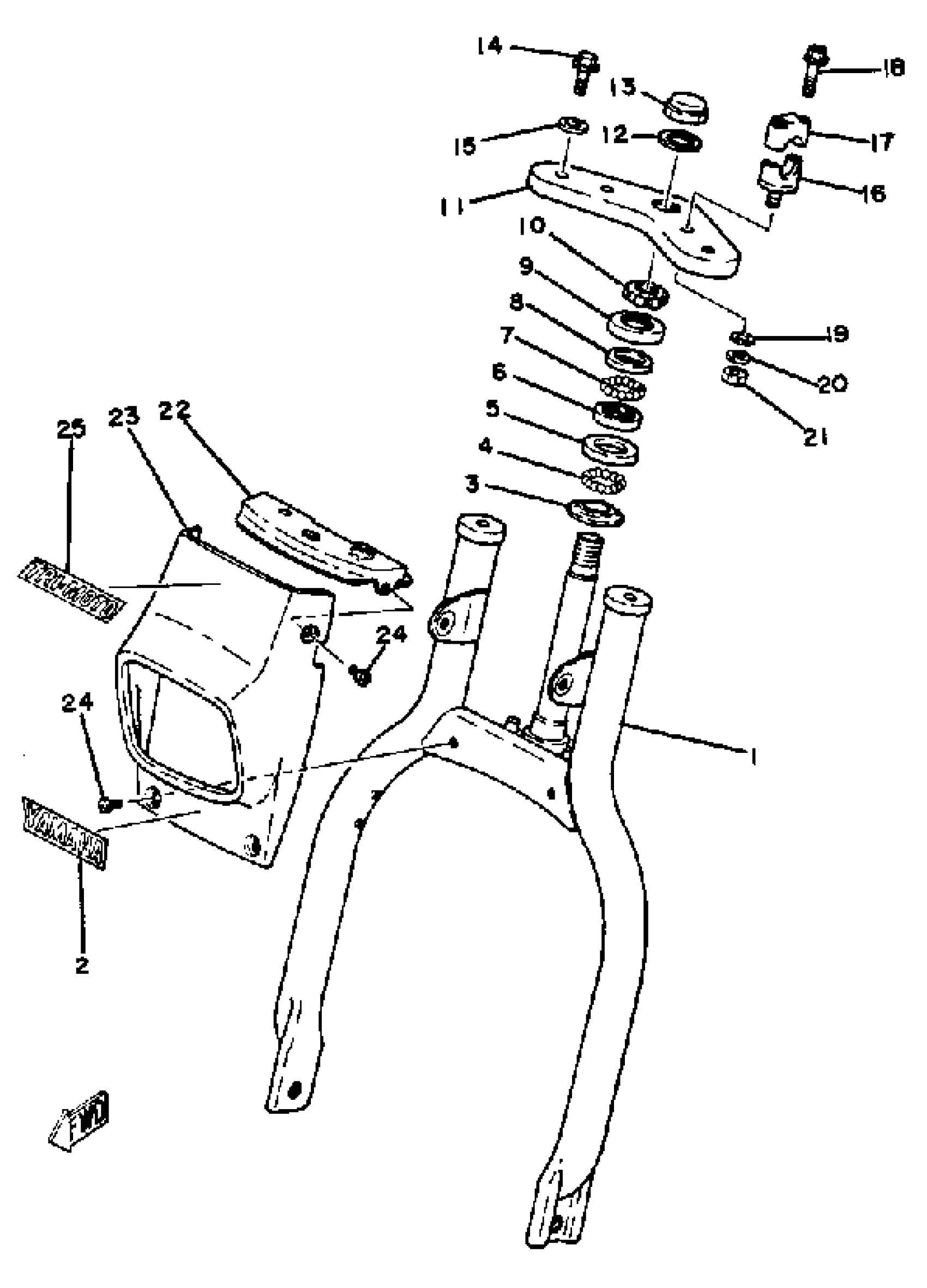

Yamaha YT125G 1980 FRONT FORK YT125J Diagram

FRONT FORK ASSEMBLY

EMBLEM, YAMAHA

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER, BALL RACE

NUT

CROWN, HANDLE

WASHER, PLATE

NUT, FITTING 1

BOLT, FLANGE(3GD)

WASHER PLATE (3L6)

HOLDER, HANDLE UNDER

HOLDER, HANDLE UPPER

BOLT, FLANGE

WASHER, PLATE

YBS67-10 WASHER, SPRING

NUT(624)

HOLDER, CABLE

PANEL, FRONT

SCREW, BIND (705)

EMBLEM 5
