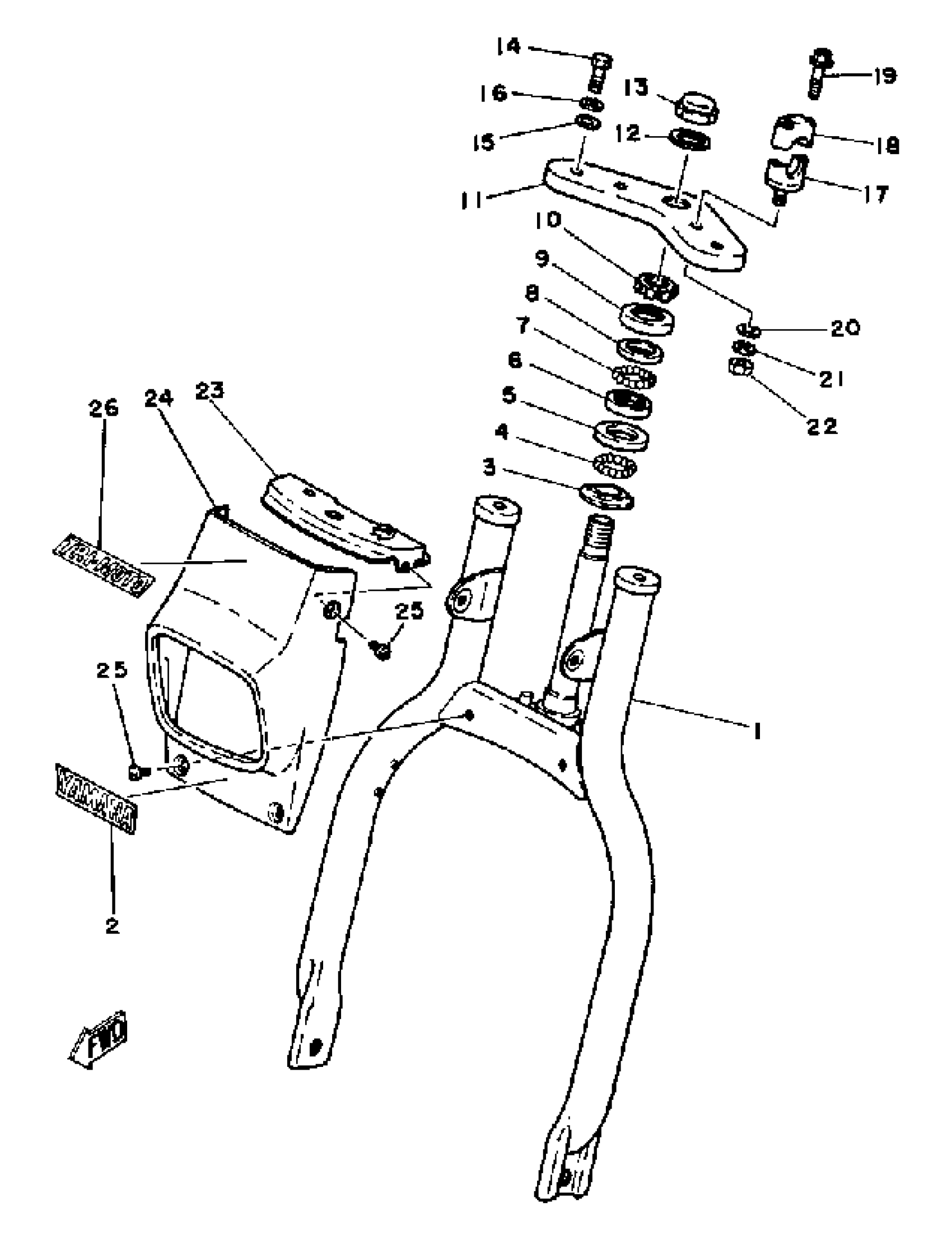

Yamaha YT125G 1980 FRONT FORK YT125H Diagram
#
Description
Price
1
FRONT FORK ASSEMBLY
4U3-23101-00-26
Unavailable
2
EMBLEM, YAMAHA
99244-00100-00
Unavailable
3
RACE, BALL 1
B6E-23411-00-00
$8.49
4
BALL
93501-04011-00
$8.49
5
RACE, BALL 2
B6E-23412-00-00
$13.49
6
RACE, BALL 2
BP2-23412-00-00
$7.49
7
BALL
93503-16003-00
$2.72
8
RACE, BALL 1
BP2-23411-00-00
$11.49
9
COVER, BALL RACE
122-23416-00-00
$7.99
10
NUT
90179-25004-00
$24.99
11
CROWN, HANDLE
3X3-23435-00-00
Unavailable
12
WASHER, PLATE
90201-252A5-00
Unavailable
13
NUT, FITTING 1
3X3-23453-00-00
Unavailable
14
BOLT(6TD)
97017-10025-00
$8.49
15
WASHER, PLATE
92990-10600-00
Unavailable
16
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
17
HOLDER, HANDLE UNDER
462-23442-00-98
Unavailable
18
UNAVAILABLE IN PRICE BOOK (122-23441-00)
422-23441-00-98
Unavailable
19
BOLT, FLANGE
95817-06035-00
Unavailable
20
WASHER, PLATE
92990-10600-00
Unavailable
21
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
22
NUT(624)
95380-10600-00
Unavailable
23
HOLDER, CABLE
4U3-23317-00-98
Unavailable
24
PANEL, FRONT
4U3-23391-00-00
Unavailable
25
SCREW, BIND (705)
98980-06016-00
Unavailable
26
EMBLEM 5
4U3-21785-00-00
Unavailable
