Description

Price

1

FRONT FORK ASSEMBLY

4U3-23101-00-26

Unavailable

2

EMBLEM

(3X3-23395-00-00)

Unavailable

3

RACE, BALL 1

B6E-23411-00-00

$8.49

4

BALL

93501-04011-00

$8.49

5

RACE, BALL 2

B6E-23412-00-00

$13.49

6

RACE, BALL 2

BP2-23412-00-00

$7.49

7

BALL

93503-16003-00

$2.72

8

RACE, BALL 1

BP2-23411-00-00

$11.49

9

COVER, BALL RACE

122-23416-00-00

$7.99

10

NUT

90179-25004-00

$24.99

11

CROWN, HANDLE

3X3-23435-00-00

Unavailable

12

WASHER, PLATE

90201-252A5-00

Unavailable

13

NUT, FITTING 1

3X3-23453-00-00

Unavailable

14

BOLT(6TD)

97017-10025-00

$8.49

15

WASHER, PLATE

92990-10600-00

Unavailable

16

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

17

HOLDER, HANDLE UNDER

462-23442-00-98

Unavailable

18

HOLDER, HANDLE UPPER

462-23441-01-00

Unavailable

19

BOLT, FLANGE

95817-06035-00

Unavailable

20

WASHER, PLATE

92990-10600-00

Unavailable

21

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

22

NUT(624)

95380-10600-00

Unavailable

23

GUIDE, CABLE

1T2-23389-00-00

Unavailable

24

STAY

3X3-2317E-00-00

Unavailable

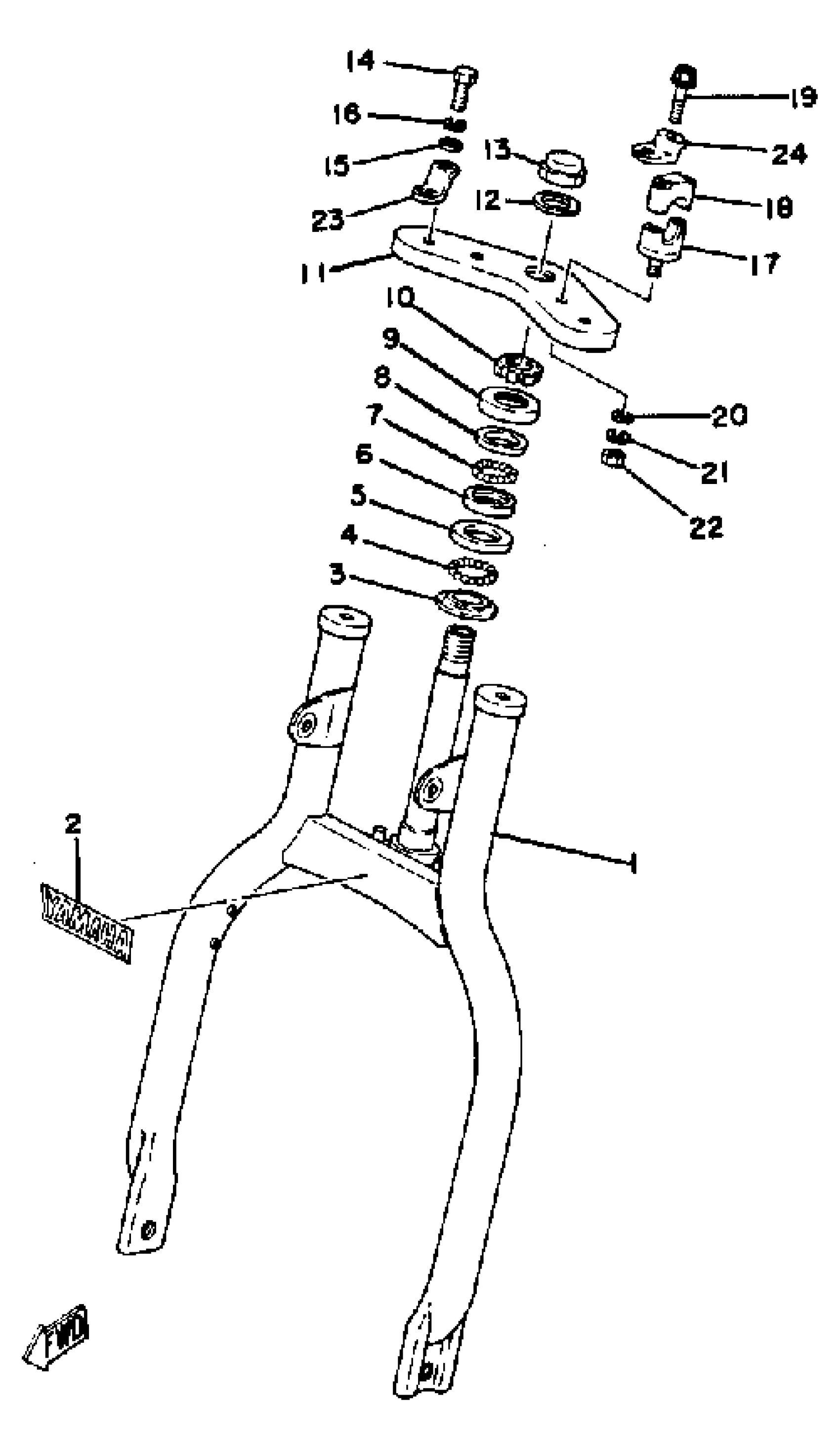

Yamaha YT125G 1980 FRONT FORK YT125G Diagram

FRONT FORK ASSEMBLY

EMBLEM

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER, BALL RACE

NUT

CROWN, HANDLE

WASHER, PLATE

NUT, FITTING 1

BOLT(6TD)

WASHER, PLATE

YBS67-10 WASHER, SPRING

HOLDER, HANDLE UNDER

HOLDER, HANDLE UPPER

BOLT, FLANGE

WASHER, PLATE

YBS67-10 WASHER, SPRING

NUT(624)

GUIDE, CABLE

STAY
