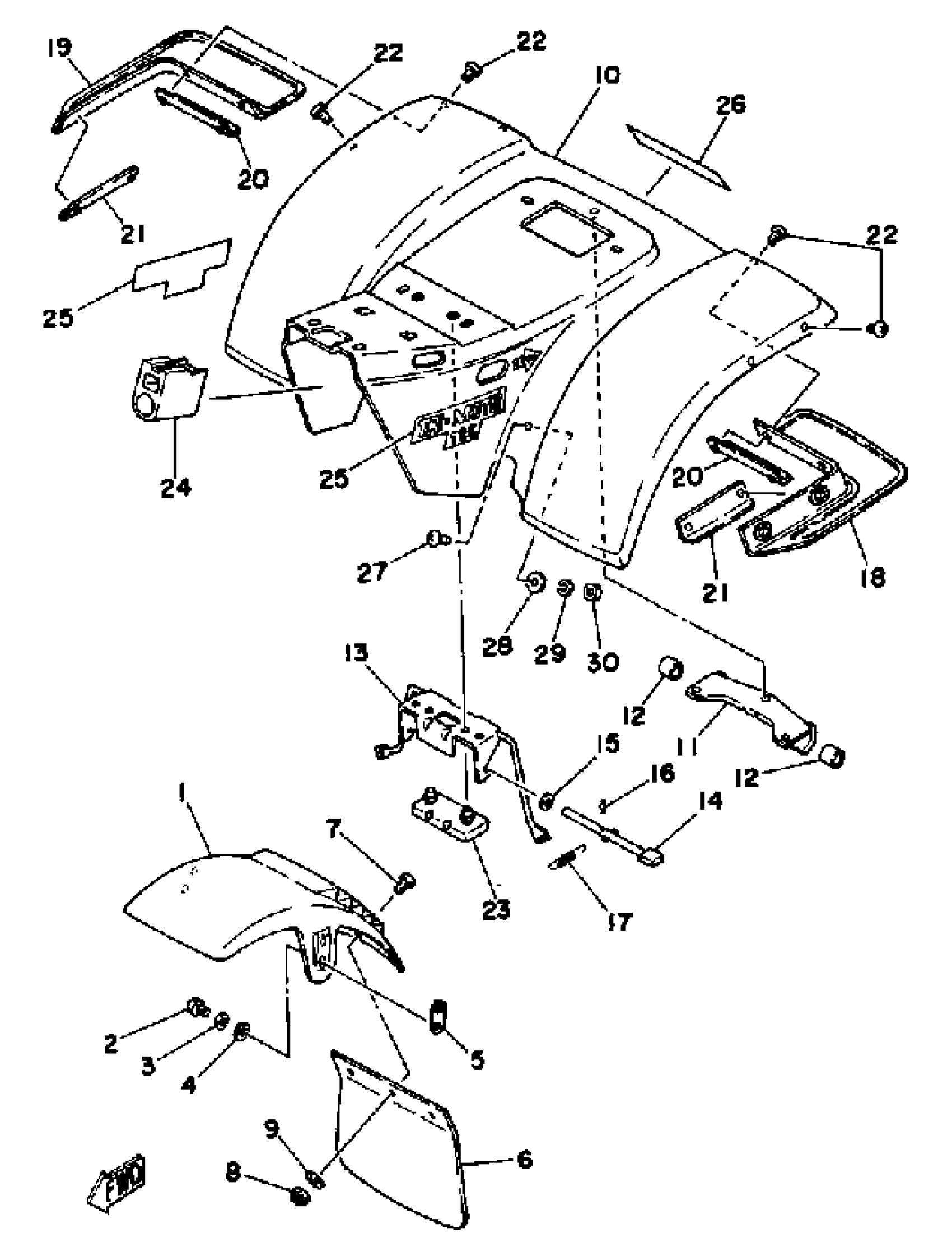

Yamaha YT125G 1980 FRONT FENDER - REAR FENDER YT125G - H Diagram
#
1
FENDER, FRONT
3X3-21511-00-00
Unavailable
2
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
$2.76
3
WASHER, SPRING
92995-06100-00
Unavailable
4
WASHER, PLATE
90201-06045-00
$8.49
5
WASHER, SPECIAL
(3X3-21515-00-00)
Unavailable
6
FLAP, FRONT FENDER
3X3-21521-00-00
Unavailable
7
SCREW, BINDING(3XV)
90154-05059-00
$9.49
8
NUT, U
95617-05100-00
$9.49
9
WASHER, PLATE 8067717800
90201-05029-00
$8.49
10
FENDER, REAR
3X3-21611-00-00
Unavailable
11
BRACKET, RR FENDER
3X3-21612-00-00
Unavailable
12
DAMPER 1
3X3-21638-00-00
Unavailable
13
GUIDE, MUD GUARD
(3X3-21665-00-00)
Unavailable
14
STAY, FENDER 1
3X3-21613-00-00
Unavailable
15
WASHER, PLAIN (646)
92990-06600-00
$2.80
16
CLIP(4BP)
90468-16192-00
Unavailable
17
SPRING, TENSION
90506-12116-00
Unavailable
18
FLAP
3X3-21621-00-00
Unavailable
19
FLAP
3X3-21691-00-00
Unavailable
20
PLATE, FLAP FTNG 1
3X3-21623-00-00
Unavailable
21
PLATE, FLAP FTNG 2
3X3-21624-00-00
Unavailable
22
SCREW, BINDING(3XV)
90154-05059-00
$9.49
23
DAMPER 2
(3X3-21639-00-00)
Unavailable
24
DAMPER
(3X3-21649-00-00)
Unavailable
25
EMBLEM 3
(3X3-21783-00-00)
Unavailable
26
EMBLEM 4
3X3-21784-00-00
Unavailable
27
SCREW, BIND (J17)
98980-06020-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
$2.80
28
WASHER, PLAIN (646)
92990-06600-00
$2.80
29
WASHER, SPRING
92995-06100-00
Unavailable
30
NUT, HEXAGON
95380-06600-00
Unavailable
