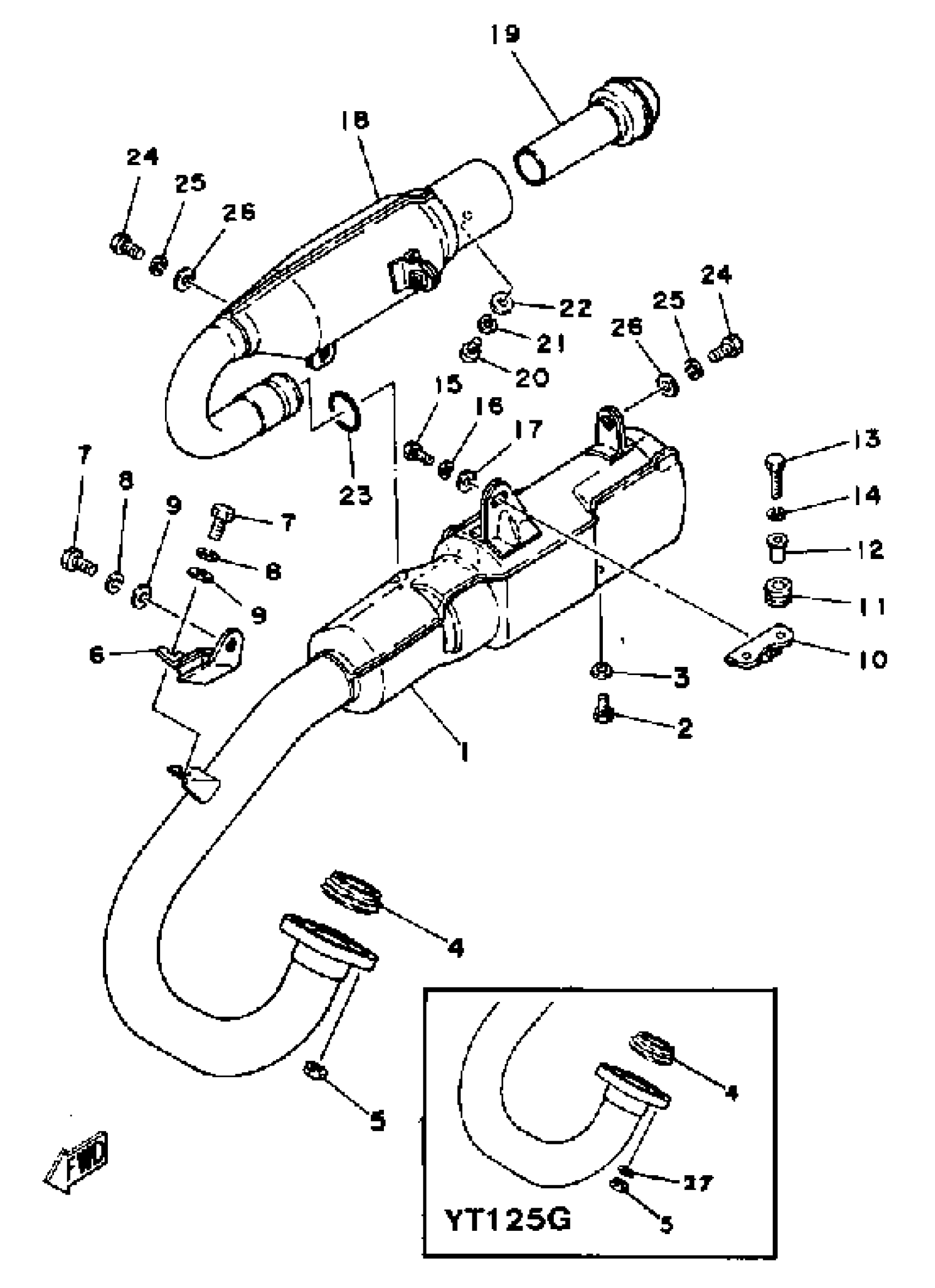

Yamaha YT125G 1980 EXHAUST YT125G - H - J Diagram
#
Description
Price
1
EXHAUST PIPE ASSEMBLY
(3X3-14610-01-00)
Unavailable
2
BOLT(3JP)
97017-06010-00
$3.76
3
WASHER, PLAIN (646)
92990-06600-00
$2.80
4
GASKET, EXHAUST PIPE
3PA-14613-10-00
$15.49
5
NUT, HEXAGON
95380-06600-00
Unavailable
6
STAY, MUFFLER 2
2A6-14772-01-00
$11.99
6
BOLT, HEXAGON
97017-08016-00
$8.49
7
BOLT(JA9)
90101-08691-00
$4.29
8
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
9
.. WASHER, PLATE
92990-08600-00
Unavailable
10
STAY, MUFFLER 1
5V7-14771-00-00
Unavailable
11
GROMMET 839774310000
90480-14023-00
$7.49
12
COLLAR
90387-06158-00
$8.49
13
BOLT, HEXAGON
97017-06025-00
$4.24
14
WASHER, SPRING
92995-06100-00
Unavailable
15
BOLT(JA9)
90101-08691-00
$4.29
16
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
17
.. WASHER, PLATE
92990-08600-00
Unavailable
18
SILENCER, EXHAUST
3X3-14753-00-00
Unavailable
19
PIPE, OUTLET
3X3-14752-00-00
Unavailable
20
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
21
WASHER, SPRING
92995-06100-00
Unavailable
22
WASHER, PLAIN (646)
92990-06600-00
$2.80
23
O-RING
93210-27250-00
Unavailable
24
BOLT(JA9)
90101-08691-00
$4.29
25
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
26
.. WASHER, PLATE
92990-08600-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
