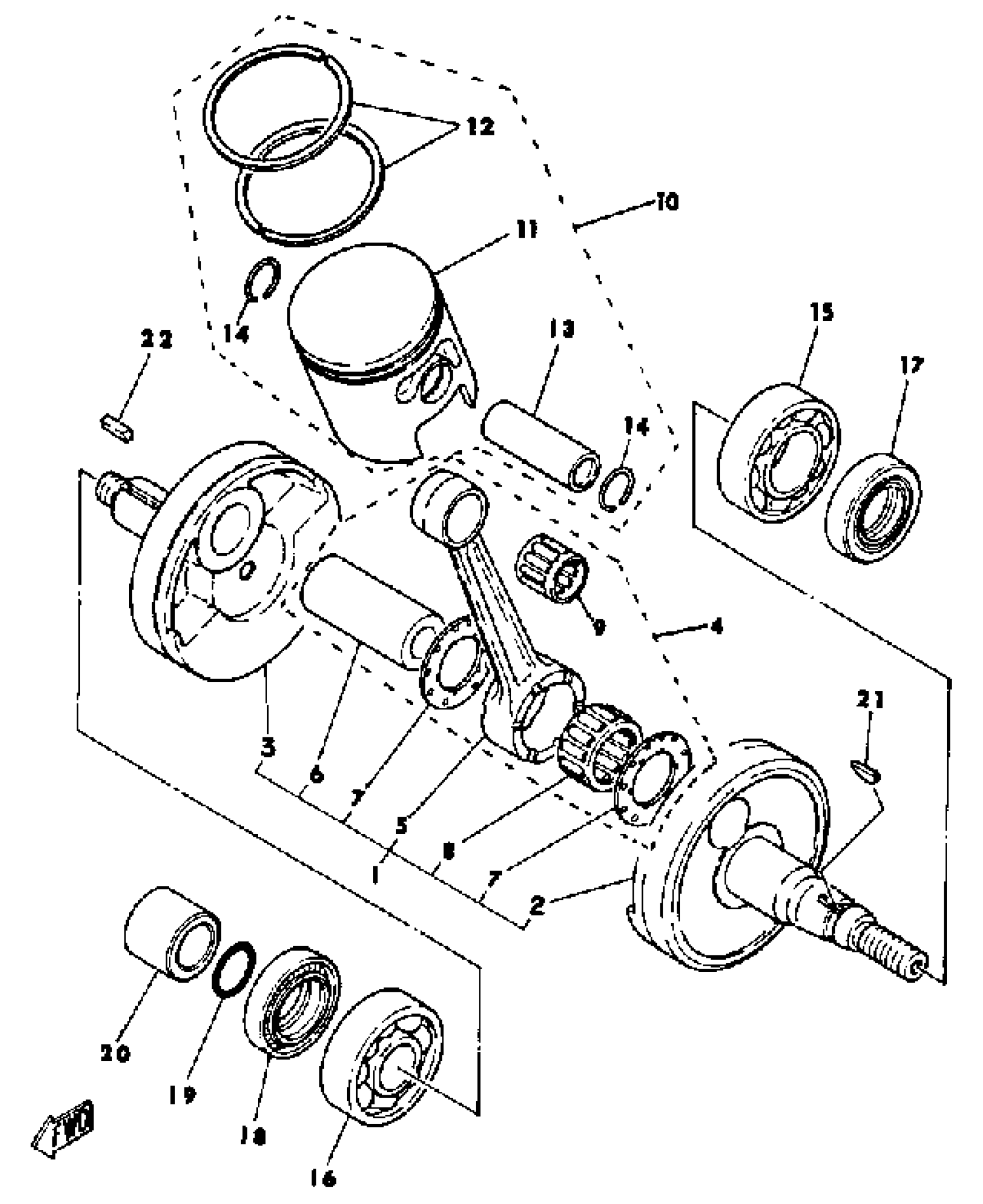

Yamaha YT125G 1980 CRANKSHAFT - PISTON YT125G - H - J Diagram
#
1
CRANKSHAFT ASSEMBLY
2N4-11400-00-00
Unavailable
2
CRANK (L.H)
1W1-11412-01-00
Unavailable
3
CRANK (R.H)
1W1-11422-01-00
Unavailable
4
.. CONNECTING ROD ASSEMBLY
2N4-11650-00-00
Unavailable
5
. ROD, CONNECTING 1
25V-11651-00-00
Unavailable
6
PIN, CRANK 1
3M5-11681-00-00
$24.99
7
WASHER (29L)
90209-22248-00
Unavailable
8
BEARING, CYLINDRICAL(3SB)
93310-422C8-00
$46.99
9
BEARING, NEEDLE (24X)
93310-216L2-00
$33.99
10
PISTON KIT STD
3X3-11630-00-00
Unavailable
10
PISTON KIT 1ST
3X3-11630-10-00
Unavailable
10
PISTON KIT 2ND
3X3-11630-20-00
Unavailable
10
PISTON KIT 3RD
(3X3-11630-30-00)
Unavailable
10
. PISTON 4 O/S 100
3X3-11638-00-00
Unavailable
11
. PISTON STD
3X3-11631-00-97
Unavailable
11
. PISTON 1 O/S 025
3X3-11635-00-00
Unavailable
11
. PISTON 2 O/S 050
3X3-11636-00-00
Unavailable
11
. PISTON 3 O/S 075
3X3-11637-00-00
Unavailable
11
. PISTON 4 O/S 100
3X3-11638-00-00
Unavailable
12
. PISTON RINGSET STD
3X3-11610-00-00
Unavailable
12
. PISTON RINGSET 1ST
3X3-11610-10-00
Unavailable
12
. PISTON RINGSET 2ND
3X3-11610-20-00
Unavailable
12
. PISTON RINGSET 3RD
3X3-11610-30-00
Unavailable
12
. PISTON RINGSET 4TH
3X3-11610-40-00
Unavailable
13
PIN, PISTON
137-11633-10-00
Unavailable
14
CIRCLIP (1L9)
93450-17044-00
Unavailable
15
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
16
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
17
OIL SEAL (25X40X8-248)
93102-25061-00
Unavailable
17
OIL SEAL (5V6)
93103-25125-00
Unavailable
18
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
19
O-RING(3KX)
93210-180A6-00
Unavailable
20
COLLAR, DISTANCE (525)
90387-20488-00
Unavailable
21
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
22
KEY, STRAIGHT 3531154600
90282-05005-00
Unavailable
