Description

Price

1

CRANKCASE 1

3M2-15111-00-00

Unavailable

2

CRANKCASE 2

2A6-15121-01-00

Unavailable

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

PIN, DOWEL

99530-20020-00

Unavailable

5

DAMPER

90388-08003-00

$17.99

6

SPACER, ENGINE MOUNT

401-15317-00-00

$14.49

7

O-RING (P95)

93210-11073-00

$7.49

8

SCREW PAN HEAD

98580-06550-00

$8.49

9

SCREW, BIND (JH1)

98580-06560-00

Unavailable

10

SCREW PAN HEAD

98580-06570-00

$18.99

11

SCREW PAN HEAD

98580-06575-00

$12.49

12

BREATHER

5UG-15371-00-00

$40.99

13

HOSE (L1050)

90445-072G8-00

$29.99

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

15

GASKET (3JD1)

90430-12207-00

$7.99

16

HOLDER (R.H)

304-15128-00-00

Unavailable

17

SCREW, PAN

98507-08010-00

Unavailable

18

PLUG, TIGHT (70R)

90331-14045-00

Unavailable

18

PLUG (3X3)

90331-25024-00

Unavailable

19

PLUG (3X3)

90331-25024-00

Unavailable

19

PLUG, SPECIAL SHAPE

90338-10063-00

Unavailable

20

PIN, DOWEL

(93610-12159-00)

Unavailable

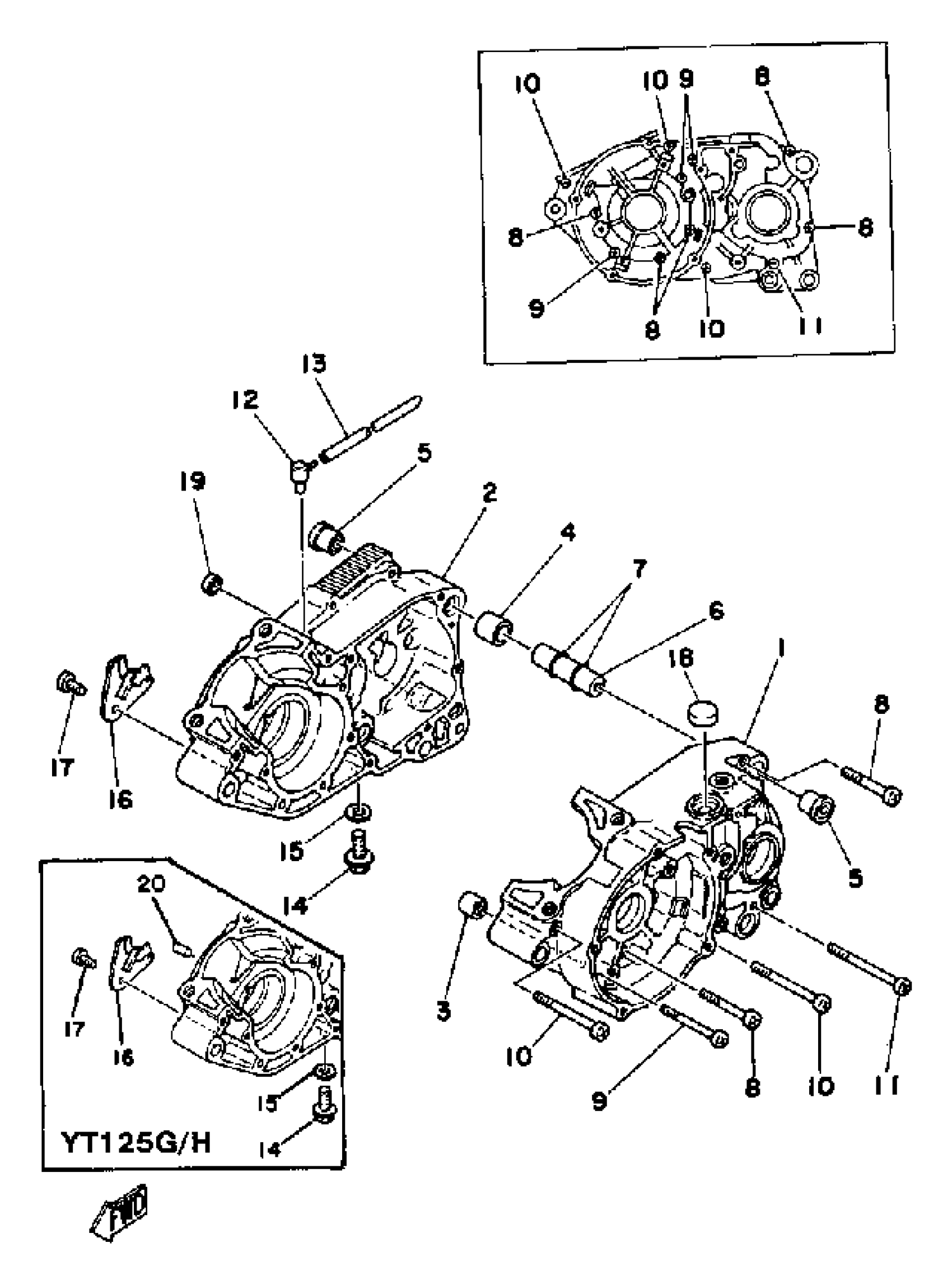

Yamaha YT125G 1980 CRANKCASE YT125G - H - J Diagram

CRANKCASE 1

CRANKCASE 2

PIN, DOWEL(3VD)

PIN, DOWEL

DAMPER

SPACER, ENGINE MOUNT

O-RING (P95)

SCREW PAN HEAD

SCREW, BIND (JH1)

SCREW PAN HEAD

SCREW PAN HEAD

BREATHER

HOSE (L1050)

PLUG STRAIGTSCREW 132153510000

GASKET (3JD1)

HOLDER (R.H)

SCREW, PAN

PLUG, TIGHT (70R)

PLUG (3X3)

PLUG (3X3)

PLUG, SPECIAL SHAPE

PIN, DOWEL
