Description

Price

1

COVER, CRANKCASE 3

3X3-15431-00-00

Unavailable

1

COVER, CRANKCASE 3

(5V6-15431-02-00)

Unavailable

2

GASKET, CRANKCASE COVER 1

18G-15451-03-00

$28.99

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

5

SCREW PAN HEAD

98580-06040-00

$8.49

6

SCREW,PAN HEAD

98507-06115-00

Unavailable

7

CLAMP

90465-06176-00

Unavailable

8

PLUG, OIL

116-15363-00-00

Unavailable

9

COVER, OIL PUMP

2A6-15416-00-00

Unavailable

10

GASKET, OIL PUMP COVER 1

2A6-15456-01-00

$23.99

11

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

12

COVER, SHIFTER (3X3-15429-00)

3X3-15429-01-00

Unavailable

13

GASKET,SHFTR COVER

3X3-15459-10-00

Unavailable

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

15

WASHER, PLAIN (646)

92990-06600-00

Unavailable

16

BOLT, FLANGE

95817-08012-00

Unavailable

17

GASKET

90430-08023-00

Unavailable

18

COVER, CAP

3X3-15417-00-00

Unavailable

19

GASKET, DRAIN

3X3-15343-10-00

Unavailable

20

SCREW, BIND(GA5)

98980-05018-00

Unavailable

21

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

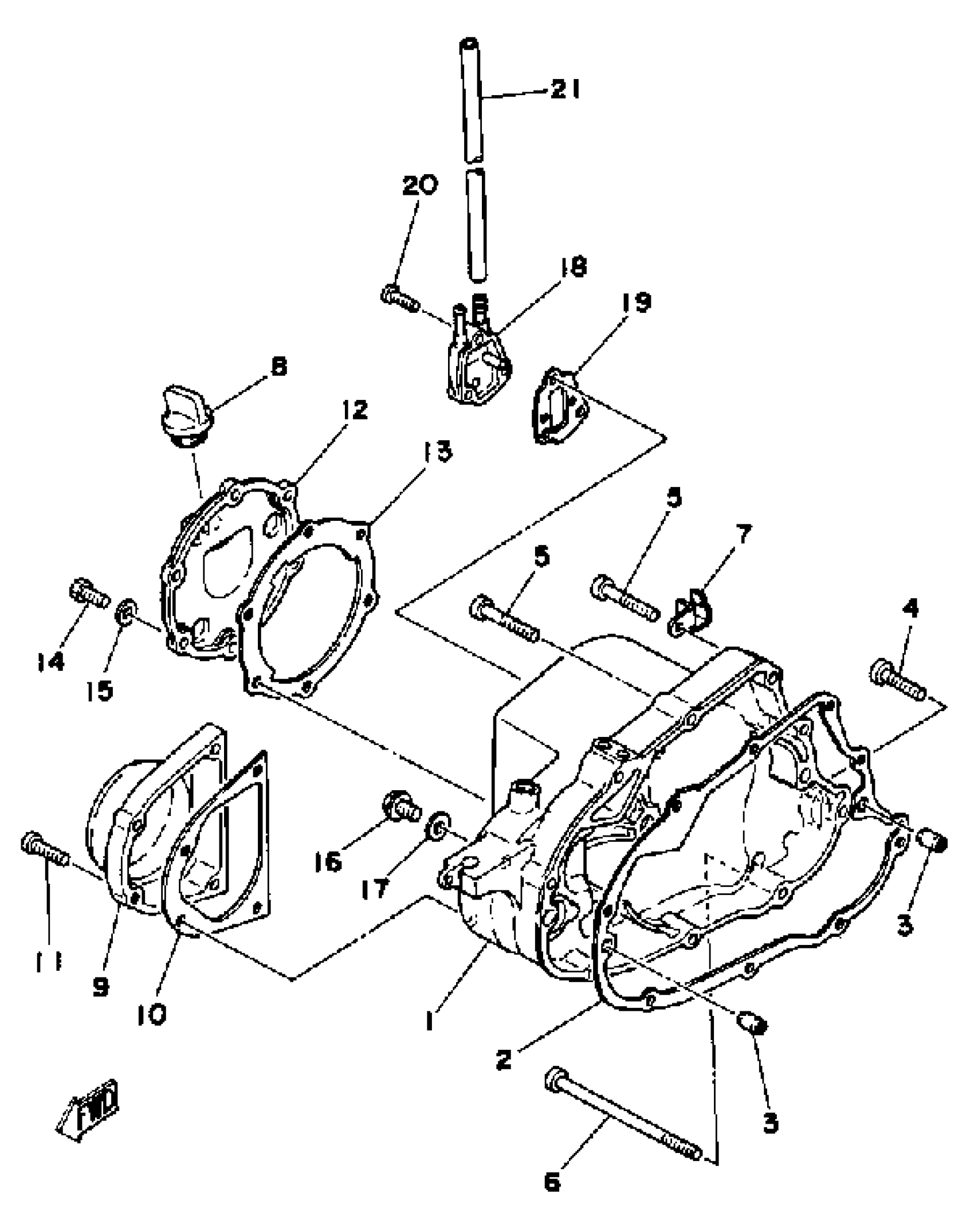

Yamaha YT125G 1980 CRANKCASE COVER YT125G - H - J Diagram

COVER, CRANKCASE 3

COVER, CRANKCASE 3

GASKET, CRANKCASE COVER 1

PIN, DOWEL(3VD)

SCREW, PAN HEAD(6E0)

SCREW PAN HEAD

SCREW,PAN HEAD

CLAMP

PLUG, OIL

COVER, OIL PUMP

GASKET, OIL PUMP COVER 1

SCREW, PAN HEAD (76T)

COVER, SHIFTER (3X3-15429-00)

GASKET,SHFTR COVER

BOLT, HEXAGON DEEP RECESS

WASHER, PLAIN (646)

BOLT, FLANGE

GASKET

COVER, CAP

GASKET, DRAIN

SCREW, BIND(GA5)

TUBE, FLEXIBLE VINYL(8AT)
