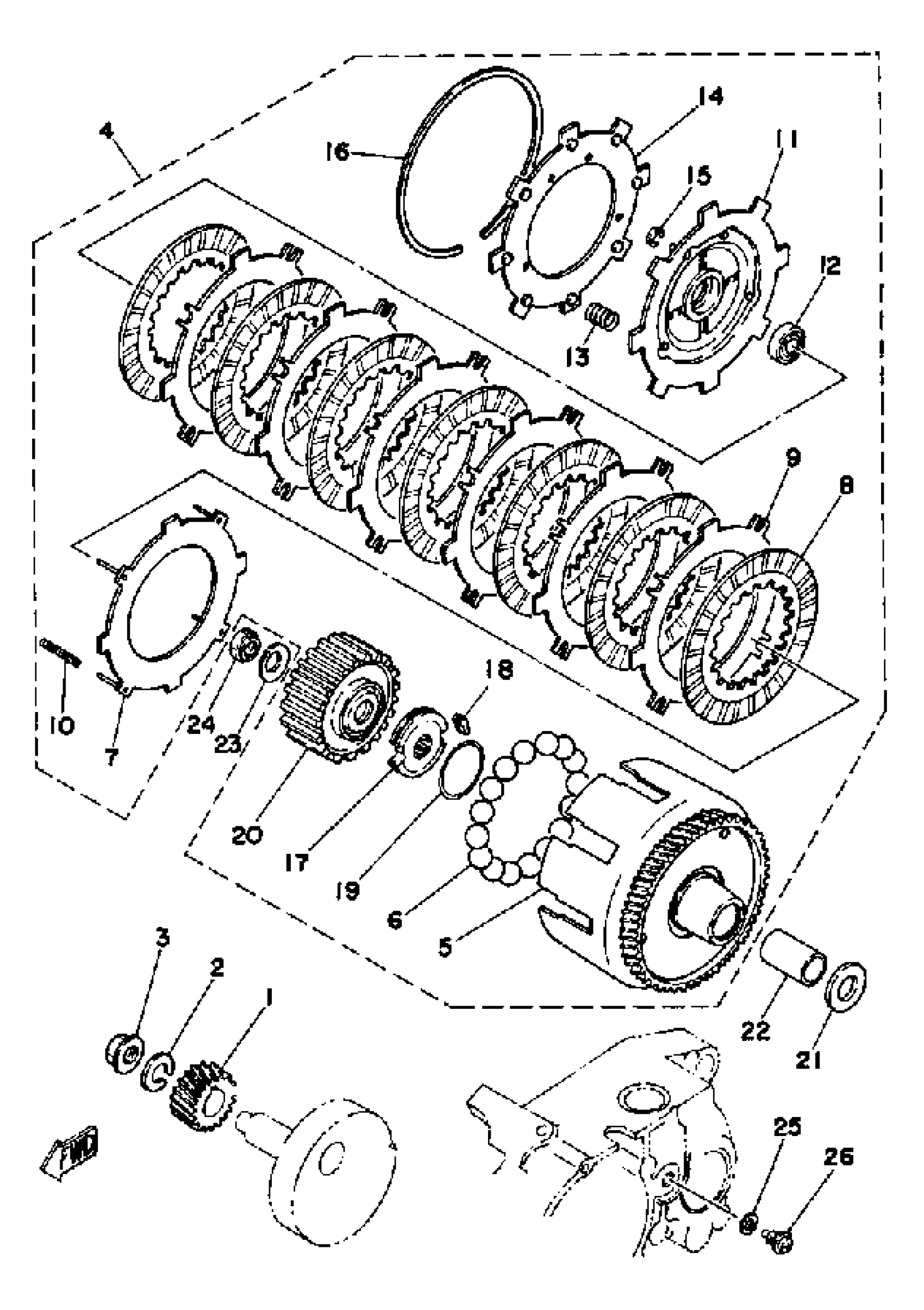

Yamaha YT125G 1980 CLUTCH YT125G - H - J Diagram
#
1
GEAR, PRIMARY DRIVE
4FU-16111-00-00
Unavailable
2
WASHER, SPRING (1W1)
90204-12007-00
$8.49
3
NUT(1EE)
90179-12659-00
$8.49
4
CLUTCH ASSEMBLY
(3X3-16300-00-00)
Unavailable
4
CLUTCH ASSEMBLY
(5V6-16300-00-00)
Unavailable
5
PRI DRVN GEAR
(3X3-16150-01-00)
Unavailable
5
. PRI DRVN GEAR
5V6-16150-00-00
Unavailable
6
BALL (5/8INCH) (527 CKD)
93505-08030-00
$8.49
7
PLATE, THRST WEIGHT
(3X3-16520-00-00)
Unavailable
7
. PLATE, THRST WEIGHT
5V6-16520-00-00
Unavailable
8
. PLATE, FRICTION
3X3-16521-00-00
Unavailable
8
. PLATE, FRICTION
3X3-16521-00-00
Unavailable
9
. PLATE, CLUTCH 1
3X3-16524-00-00
Unavailable
9
. PLATE, CLUTCH 1
3X3-16524-00-00
Unavailable
9
. PLATE, CLUTCH 1
3X3-16524-10-00
Unavailable
9
. PLATE, CLUTCH 1
3X3-16524-10-00
Unavailable
9
. PLATE, CLUTCH 1
3X3-16524-20-00
Unavailable
9
. PLATE, CLUTCH 1
3X3-16524-20-00
Unavailable
10
. SPRING, COMPRESSION
90501-10572-00
Unavailable
10
. SPRING, COMPRESSION
90501-10653-00
Unavailable
11
. PRESSURE PLATE ASSEMBLY
3X3-16550-00-00
Unavailable
12
BRG,R-B 6000 26MM 19G KY
93306-00004-00
Unavailable
13
. SPRING, COMPRESSION
90501-12580-00
Unavailable
13
. SPRING, COMPRESSION
90501-13647-00
Unavailable
14
. PLATE, PRESSURE 2
3X3-16561-00-00
Unavailable
15
CIRCLIP(6L5)
99080-03600-00
Unavailable
16
. CIRCLIP, INNER
93451-25067-00
Unavailable
17
BOSS, ONEWAY
517-16180-00-00
Unavailable
18
PAWL, ONE WAY
384-15635-00-00
Unavailable
19
SPRING, PAWL
2T4-15637-01-00
Unavailable
20
BOSS, CLUTCH
(3X3-16571-00-00)
Unavailable
20
. BOSS, CLUTCH
5V6-16571-00-00
Unavailable
21
WASHER, PLATE (4V2)
90201-174E1-00
Unavailable
22
SPACER (517)
90560-17146-00
Unavailable
23
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
24
NUT(1EE)
90179-12659-00
$8.49
25
GASKET(3AJ)
90430-08204-00
Unavailable
26
SCREW (1M1)
90149-08108-00
Unavailable
