Description

Price

1

CHAIN CASE KIT

(4U3-W0022-00-00)

Unavailable

4

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

5

WASHER, SPRING

92995-06100-00

Unavailable

6

WASHER, PLAIN (646)

92990-06600-00

$2.80

7

. RUBBER, CHAIN CASE

3X3-22313-00-00

Unavailable

8

. SEAL 1

3X3-22358-00-00

Unavailable

9

GROMMET

(90480-25281-00)

Unavailable

10

. SEAL 2

3X3-22359-00-00

Unavailable

11

. OIL SEAL, SD-TYPE

93102-42223-00

Unavailable

12

. BEARING

93306-00802-00

Unavailable

13

PLUG, SPEC''L SHAPE

(90338-20051-00)

Unavailable

14

CAP

148-22315-00-00

$7.99

15

O-RING(3LD)

93210-12790-00

$7.49

16

GUARD, CHAIN

(3X3-22318-00-00)

Unavailable

17

BOLT(8CP)

97017-06014-00

$8.49

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

$2.80

20

BOLT, HEXAGON

97013-06022-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

$2.80

23

. COVER, DUST

3X3-22325-00-00

Unavailable

24

. PLATE, CHN CS RUBR

3X3-22347-00-00

Unavailable

25

SCREW, PAN

98507-06014-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

WASHER, PLAIN (646)

92990-06600-00

$2.80

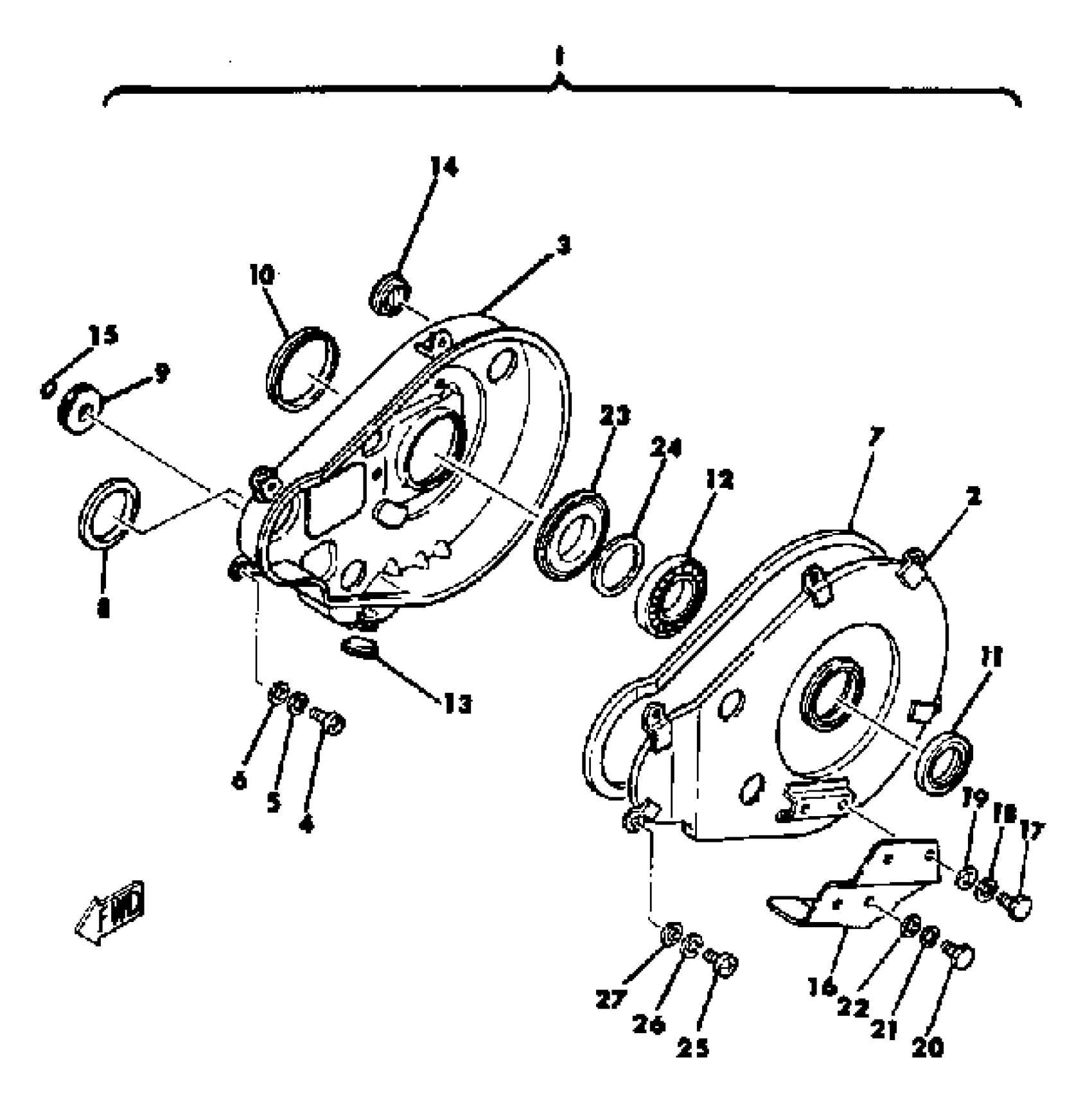

Yamaha YT125G 1980 CHAIN CASE YT125H Diagram

CHAIN CASE KIT

SCREW, PAN HEAD(62J)

WASHER, SPRING

WASHER, PLAIN (646)

. RUBBER, CHAIN CASE

. SEAL 1

GROMMET

. SEAL 2

. OIL SEAL, SD-TYPE

. BEARING

PLUG, SPEC''L SHAPE

CAP

O-RING(3LD)

GUARD, CHAIN

BOLT(8CP)

WASHER, SPRING

WASHER, PLAIN (646)

BOLT, HEXAGON

WASHER, SPRING

WASHER, PLAIN (646)

. COVER, DUST

. PLATE, CHN CS RUBR

SCREW, PAN

WASHER, SPRING

WASHER, PLAIN (646)
