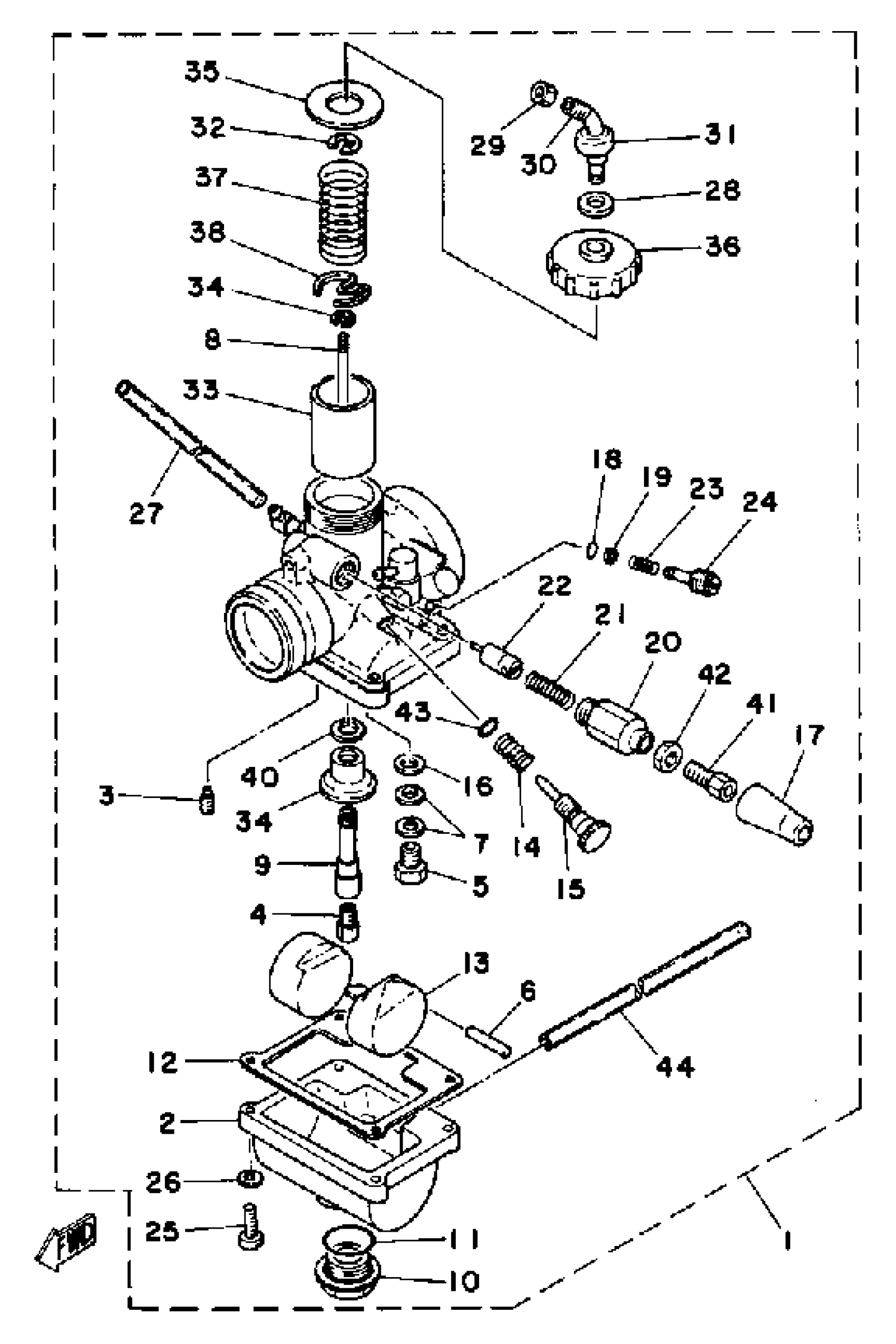

Yamaha YT125G 1980 CARBURETOR YT125G - H Diagram
#
1
CARBURETOR ASSEMBLY 1
3X3-14101-00-00
Unavailable
2
BODY, FLOAT CHMBR 1
(2Y1-14181-10-00)
Unavailable
3
JET, PILOT (# 20)
260-14142-20-A0
$11.99
4
. JET, MAIN #105
137-14143-21-00
Unavailable
4
JET, MAIN #110
137-14143-22-A0
Unavailable
4
. JET, MAIN #115
137-14143-23-A0
Unavailable
5
NEEDLE VALVE ASSY
3X3-14190-15-00
Unavailable
6
PIN, FLOAT
127-14186-00-00
$6.65
7
WASHER, VALVE SEAT
127-14195-00-00
$7.99
8
. NEEDLE
3L2-14116-16-00
Unavailable
9
NOZZLE, MAIN
(3X3-14141-36-00)
Unavailable
10
PLUG, SCREW
500-14115-00-00
$29.99
11
O-RING (541)
558-14147-00-00
$9.99
12
GASKET,FLOAT CHAMBER
304-14184-00-00
$14.49
13
FLOAT
4NR-14185-00-00
$41.99
14
. SPRING, THROTTLE STOP
493-14133-00-00
Unavailable
15
. SCREW, THROTTLE
493-14122-00-00
Unavailable
16
PLATE
(3X3-14146-00-00)
Unavailable
17
CAP
8A7-14169-00-00
Unavailable
18
O-RING, PILOT SCREW
3H1-14147-00-00
Unavailable
19
WASHER, PILOT SCREW
3H1-14962-00-00
Unavailable
20
. CAP, PLUNGER
3X3-14174-00-00
Unavailable
21
. SPRING, PLUNGER
256-14135-00-00
Unavailable
22
PLUNGER, STARTER
8G8-14171-00-00
Unavailable
23
SPRING, AIR ADJUSTING
174-14134-00-00
Unavailable
24
. SCREW, AIR ADJUSTING
3X3-14123-00-00
Unavailable
25
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
26
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
27
PIPE 1
3XV-14348-20-00
Unavailable
28
GASKET
509-14198-00-00
Unavailable
29
NUT, WIRE ADJUSTING
127-14161-00-00
Unavailable
30
CABLE ADJUST SCREW SET
10X-14106-00-00
Unavailable
31
CAP
3X3-14169-00-00
Unavailable
32
CLIP
363-14137-00-00
Unavailable
33
. VALVE, THROTTLE 1
304-14112-15-00
Unavailable
34
CLIP
3FA-14137-00-00
Unavailable
35
GASKET
193-14126-00-00
Unavailable
36
. TOP, MIXING CHAMBER
1T9-14158-00-00
Unavailable
37
SPRING, THROTTLE VALVE
3X3-14131-00-00
Unavailable
38
. SEAT, SPRING
137-14136-00-00
Unavailable
39
WASHER, MAIN JET
(3R1-14153-00-00)
Unavailable
40
. RING
3X3-14194-00-00
Unavailable
41
CABLE ADJUST SCREW SET
12G-14106-00-00
Unavailable
42
NUT, WIRE ADJUSTING
802-14161-00-00
Unavailable
43
O-RING
214-14147-00-00
Unavailable
44
PIPE 1
3XV-14348-20-00
Unavailable
