Description

Price

1

CDI MAGNETO ASSEMBLY

3X3-85500-20-00

Unavailable

2

ROTOR ASSEMBLY

(3X3-85550-20-00)

Unavailable

3

. BASE, MAGNETO

3M2-85509-21-00

Unavailable

4

. COIL SOURCE 2

3X3-85512-20-00

Unavailable

5

. COIL, LIGHTING 1

3X3-85513-20-00

Unavailable

6

. COIL, PULSER

3A3-85580-20-00

Unavailable

7

LEAD WIRE ASSEMBLY

(3X3-85515-20-00)

Unavailable

8

CLAMP, LEAD

104-81328-20-00

$6.99

9

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PAN HEAD

98517-04025-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

16

NUT(55K)

90170-12347-00

Unavailable

17

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

18

WASHER, PLATE (583)

90201-12593-00

Unavailable

19

CDI UNIT ASSEMBLY

3X3-85540-20-00

Unavailable

20

BAND,BATTERY

7H3-82131-00-00

Unavailable

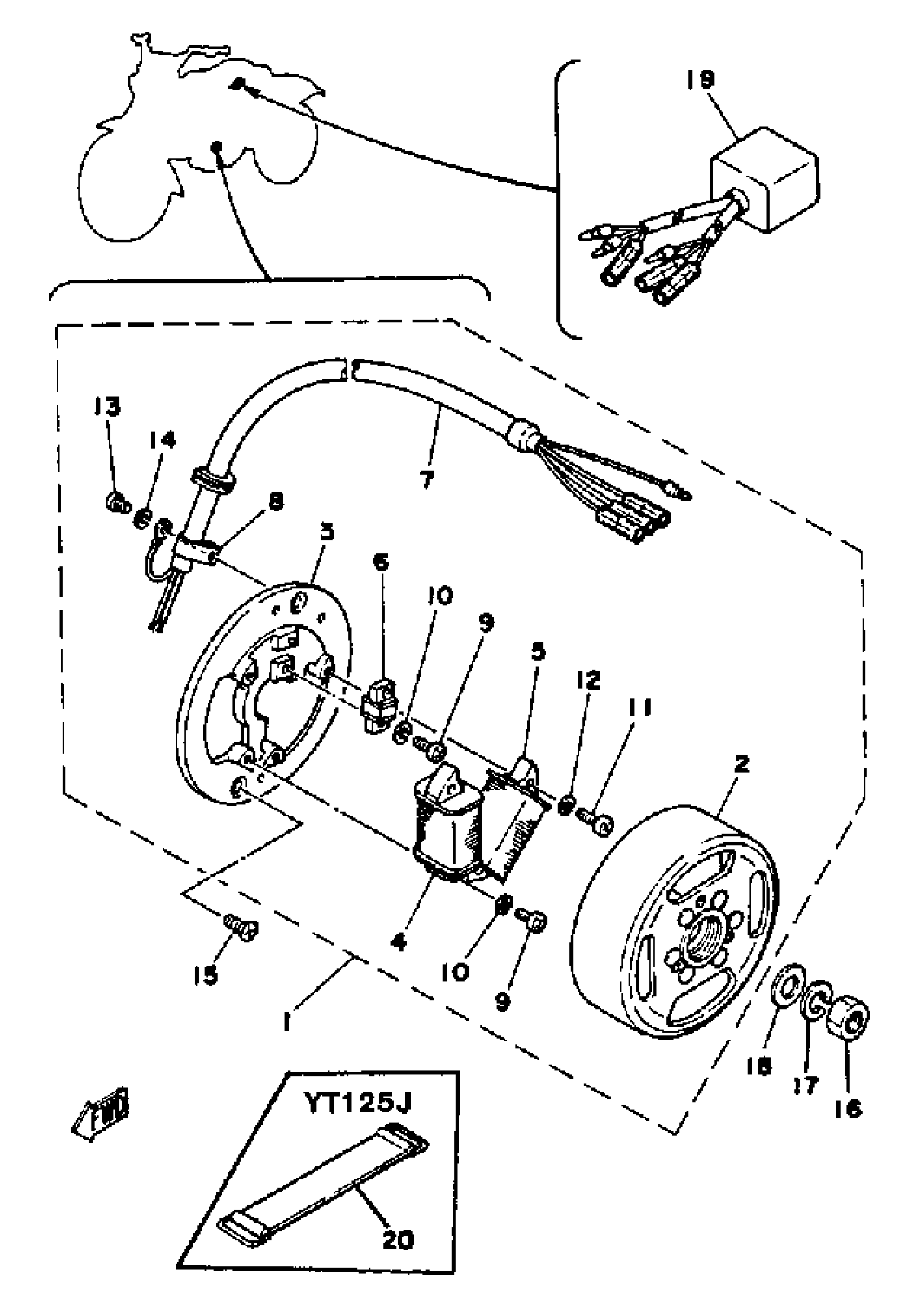

Yamaha YT125G 1980 C - D - I - MAGNETO YT125G - H - J Diagram

CDI MAGNETO ASSEMBLY

ROTOR ASSEMBLY

. BASE, MAGNETO

. COIL SOURCE 2

. COIL, LIGHTING 1

. COIL, PULSER

LEAD WIRE ASSEMBLY

CLAMP, LEAD

SCREW, PAN HEAD(GA5)

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD(3XP)

YBS67-4 WASHER, SPRING

SCREW, OVAL HEAD (92701-06012)

NUT(55K)

YBS67-12 WASHER,SPRING

WASHER, PLATE (583)

CDI UNIT ASSEMBLY

BAND,BATTERY
