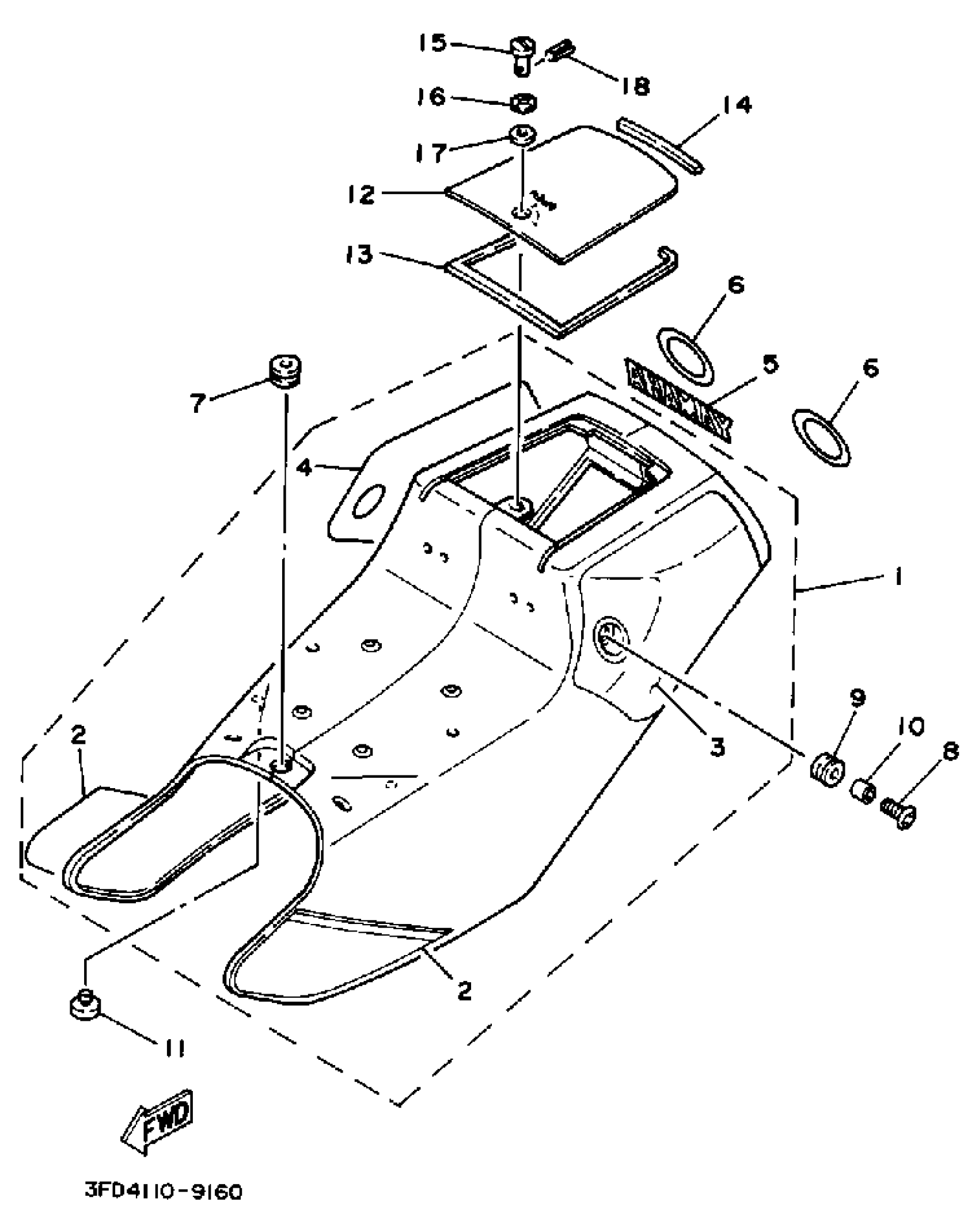

Yamaha YSR50W (YSR50W) 1989 SIDE COVER (2RR-036101-SEE NOTE) Diagram

#

Description
Price

1

SIDE COVER, COMP.

3FD-W2178-00-00

Unavailable

2

. GRAPHIC SET 1

3FD-2173L-00-00

Unavailable

3

. GRAPHIC 5

2GJ-2174J-20-00

Unavailable

4

. GRAPHIC 6

2GJ-2174K-20-00

Unavailable

5

EMBLEM, YAMAHA

99243-00080-00

Unavailable

6

COVER

2RR-2172W-01-00

Unavailable

7

GROMMET(2AL)

90480-14452-00

$8.49

8

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

9

GROMMET

90480-13014-00

$8.49

10

COLLAR(51L)

90387-067K6-00

$10.49

11

STOPPER

1M3-27114-00-00

$8.99

12

LID ASSEMBLY

2AL-W217E-10-00

Unavailable

13

SEAL 1

2AL-21732-00-00

Unavailable

14

SEAL 2

2AL-21735-00-00

Unavailable

15

PIN(1HX)

90249-06191-00

$9.49

16

WASHER, WAVE(3RW)

90206-06090-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

PIN, SPRING

91690-25016-00

Unavailable
