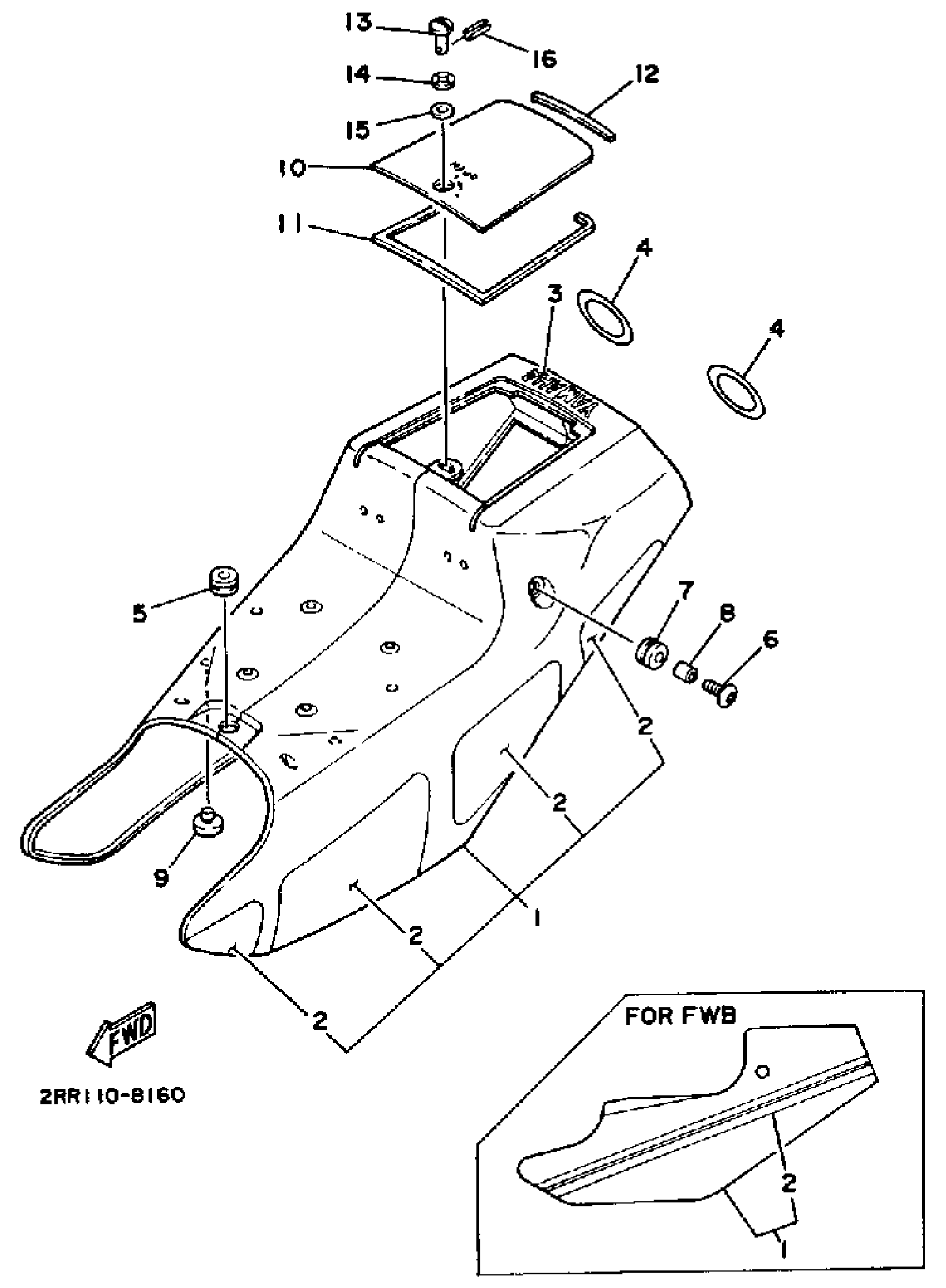

Yamaha YSR50W (YSR50W) 1989 SIDE COVER (2RR-020101 - 2RR-036100 SEE NOTE) Diagram

SIDE COVER, COMP.

2AL-W2178-00-00

Unavailable

SIDE COVER ASSEMBLY 1

2AL-W2178-10-00

Unavailable

. GRAPHIC SET 1

2AL-2173L-00-00

Unavailable

. GRAPHIC SET 1 (FARAWAY BLUE)

2AL-2173L-10-00

Unavailable

EMBLEM, YAMAHA

99241-00080-00

$13.99

EMBLEM, YAMAHA

99243-00080-00

Unavailable

COVER

2RR-2172W-01-00

Unavailable

GROMMET(2AL)

90480-14452-00

$8.49

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

GROMMET

90480-13014-00

$8.49

COLLAR(51L)

90387-067K6-00

$10.49

STOPPER

1M3-27114-00-00

$8.99

LID (2AL-2177E-00)

2AL-W217E-00-00

Unavailable

LID (2AL-2177E-20) (FARAWAY BLUE)

2AL-W217E-20-00

Unavailable

SEAL 1

2AL-21732-00-00

Unavailable

SEAL 2

2AL-21735-00-00

Unavailable

PIN(1HX)

90249-06191-00

Unavailable

WASHER, WAVE(3RW)

90206-06090-00

Unavailable

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

PIN, SPRING

91690-25016-00

Unavailable
