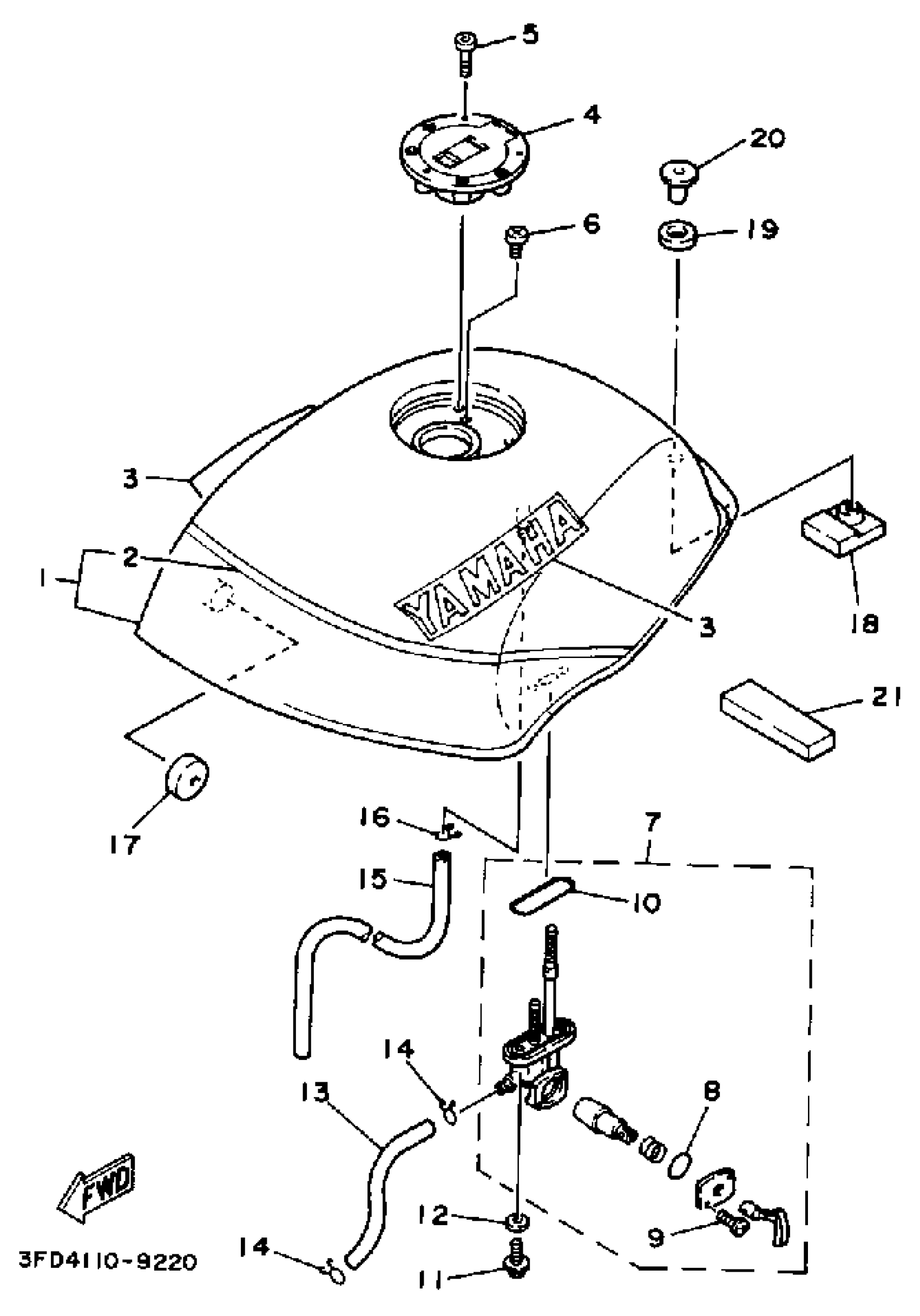

Yamaha YSR50W (YSR50W) 1989 FUEL TANK Diagram

FUEL TANK

2AL-24110-01-07

Unavailable

. GRAPHIC, FUEL TNK 1

3FD-24244-00-00

Unavailable

EMBLEM,YAMAHA(2NA)

99243-00140-00

Unavailable

CAP ASSY

4FM-24602-20-00

$300.99

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

FUEL COCK ASSY 1

10V-24500-02-00

Unavailable

O-RING

4X8-24534-00-00

$13.49

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

O-RING

4X8-24512-00-00

$8.99

SCREW 256241430000

90149-06011-00

$5.60

WASHER, PLATE(3MB)

90202-05187-00

$1.38

HOSE (L420)

90445-092K1-00

$12.49

CLIP 101235600

90467-08003-00

$10.49

HOSE (L730)

90445-105K7-00

Unavailable

CLIP

90467-090A2-00

Unavailable

DAMPER, LOCATING

4U5-24181-00-00

Unavailable

DAMPER, LOCATING

5R2-24183-00-00

Unavailable

WASHER, PLATE (462)

90202-14077-00

Unavailable

COLLAR (17W)

90387-075H4-00

Unavailable

SEAL

1KT-2414G-00-00

Unavailable
