Description

Price

1

HUB, FRONT RED

2AL-25111-01-FH

Unavailable

2

SPACER

90560-10104-00

Unavailable

3

BEARING (3R0)

93306-20009-00

$44.99

4

OIL SEAL (7X9)

93102-17271-00

$11.49

5

RIM ASSEMBLY

2AL-2510A-01-FH

Unavailable

6

BOLT, WASHER BASED

90105-08426-00

Unavailable

7

NUT, SELF-LOCKING

90185-08139-00

Unavailable

8

3.50-12 ML17 BS

94135-126J3-00

Unavailable

9

VALVE, RIM (3AA1)

93900-00041-00

$16.99

10

AXLE, WHEEL KIT

99999-02216-00

Unavailable

11

COLLAR

90387-104J5-00

Unavailable

12

NUT 3532518200

90171-10004-00

$7.49

13

PIN, COTTER

91490-20025-00

$1.99

14

GEAR UNIT ASSEMBLY

2AL-25190-00-00

Unavailable

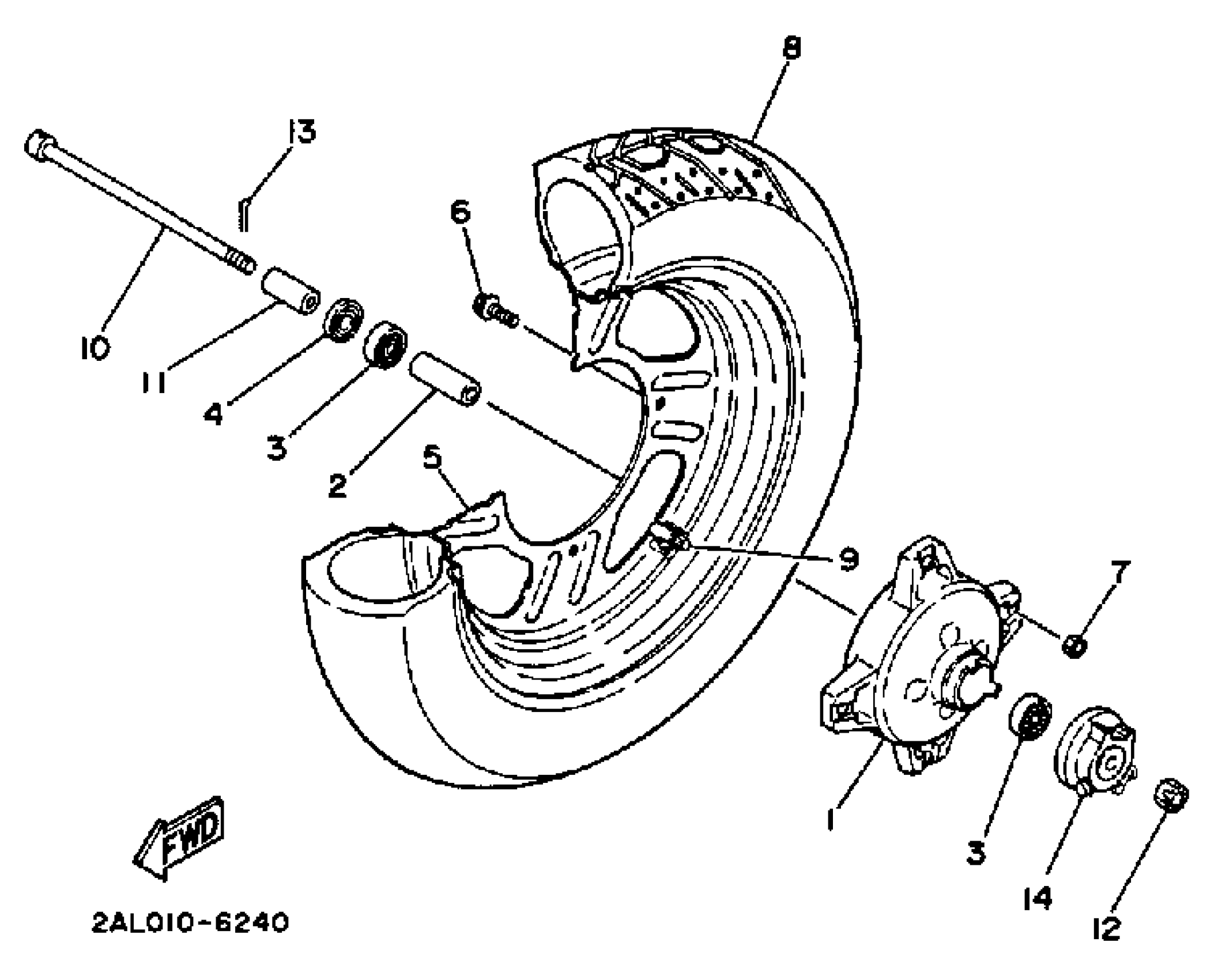

Yamaha YSR50W (YSR50W) 1989 FRONT WHEEL Diagram

HUB, FRONT RED

SPACER

BEARING (3R0)

OIL SEAL (7X9)

RIM ASSEMBLY

BOLT, WASHER BASED

NUT, SELF-LOCKING

3.50-12 ML17 BS

VALVE, RIM (3AA1)

AXLE, WHEEL KIT

COLLAR

NUT 3532518200

PIN, COTTER

GEAR UNIT ASSEMBLY
