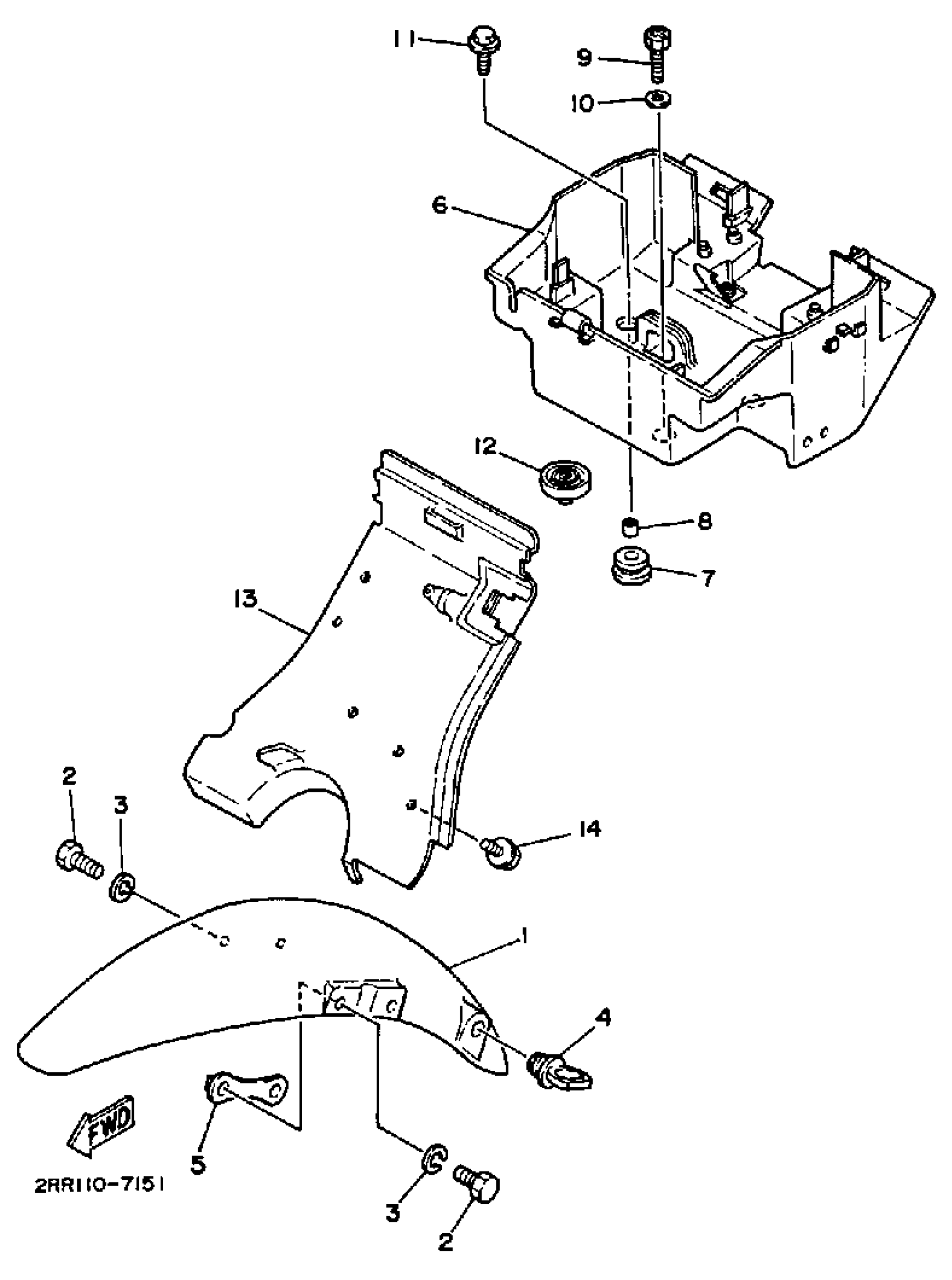

Yamaha YSR50W (YSR50W) 1989 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

2AL-21511-01-00

Unavailable

1

FENDER, FRONT

2AL-21511-11-00

Unavailable

1

FENDER, FRONT

2AL-21511-50-00

Unavailable

2

BOLT (661)

97013-06012-00

$4.40

3

WASHER, SPRING

92995-06100-00

$2.95

4

GUIDE, WIRE

1A8-21518-00-00

$6.09

5

PLATE, STAY FTNG 1

2RR-21526-00-00

Unavailable

6

FENDER, REAR

2RR-21610-00-00

Unavailable

7

GROMMET

90480-13014-00

$6.39

8

COLLAR(51L)

90387-067K6-00

$6.94

9

BOLT(3DM)

97024-06020-00

$5.75

10

WASHER, PLATE

90201-06020-00

$5.86

11

SCREW, WITH WASHER (1W4)

90159-06016-00

$2.61

12

PAD, SEAT

22W-24741-00-00

$7.20

13

GUARD, MUD

2AL-21629-00-00

Unavailable

14

BOLT, WITH WASHER

90119-06152-00

Unavailable
