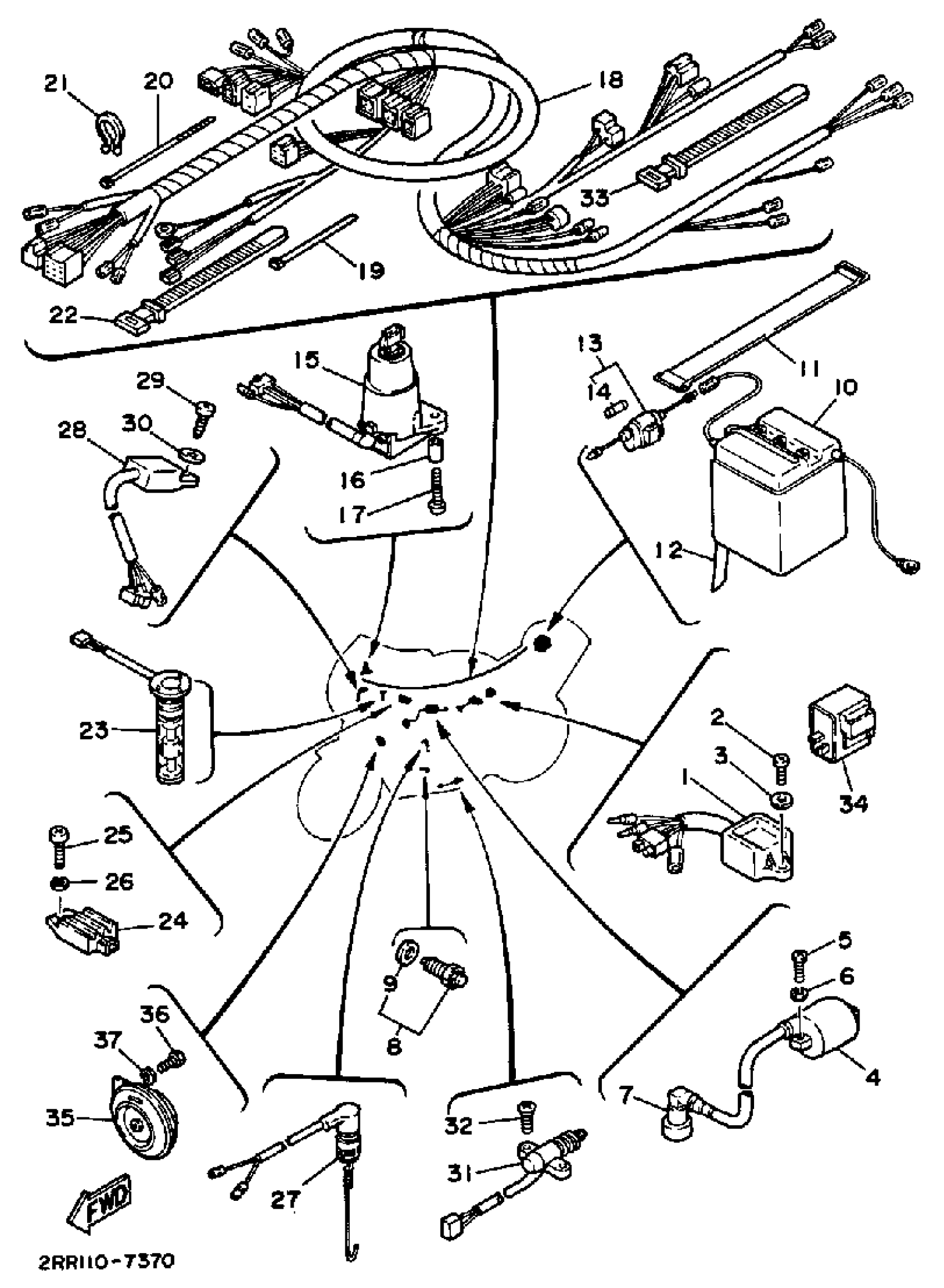

Yamaha YSR50W (YSR50W) 1989 ELECTRICAL 1 Diagram

#

Description
Price

1

CDI UNIT ASSEMBLY

2GX-85540-M0-00

Unavailable

2

SCREW, TAPPING(JA3)

97707-60520-00

$8.49

3

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

4

IGNITION COIL ASSY

4RP-82310-26-00

$73.99

5

SCREW PAN HEAD

98580-06020-00

$8.49

6

WASHER, SPRING

92995-06100-00

Unavailable

7

PLUG CAP ASSY

166-82370-20-00

$37.99

8

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

9

GASKET

296-82543-00-00

Unavailable

10

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

Unavailable

11

BAND, TANK FITTING

561-24173-00-00

$32.99

12

HOSE (L1500)

90445-084J0-00

$18.99

13

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

14

FUSE

1A0-82151-00-00

$16.49

15

MAIN SWCH STRG LCK

3TU-82501-00-00

Unavailable

16

COLLAR (1M1)

90387-06553-00

Unavailable

17

SCREW

90149-06182-00

Unavailable

18

WIRE HARNESS ASSEMBLY

2RR-82590-00-00

Unavailable

19

BAND

1UA-82591-00-00

Unavailable

20

BAND, SWITCH CORD

437-83936-11-00

Unavailable

21

CLAMP (3Y2)

90464-16039-00

Unavailable

22

BAND

1UA-82591-00-00

Unavailable

23

OIL LEVEL GAUGE ASSY

5GP-85720-00-00

Unavailable

24

RECTIFIER/REG ASSY

1RH-81960-A0-00

Unavailable

25

SCREW PAN HEAD

98580-06020-00

$8.49

26

WASHER, SPRING

92995-06100-00

Unavailable

27

STOP SWITCH ASSY

4GY-82530-01-00

Unavailable

28

CONTROL UNIT ASSEMBLY

4Y3-85590-M0-00

Unavailable

29

SCREW, TAPPING(JA3)

97707-60520-00

$8.49

30

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

31

SWITCH, SIDE STAND

33E-82566-00-00

Unavailable

32

SCREW, FLAT

98707-05014-00

Unavailable

33

BAND

1UA-82591-00-00

Unavailable

34

FLASHER RELAY ASSEMBLY

20G-83350-60-00

Unavailable

35

HORN

36X-83371-11-00

Unavailable

36

BOLT (661)

97013-06012-00

Unavailable

37

WASHER, SPRING

92995-06100-00

Unavailable
