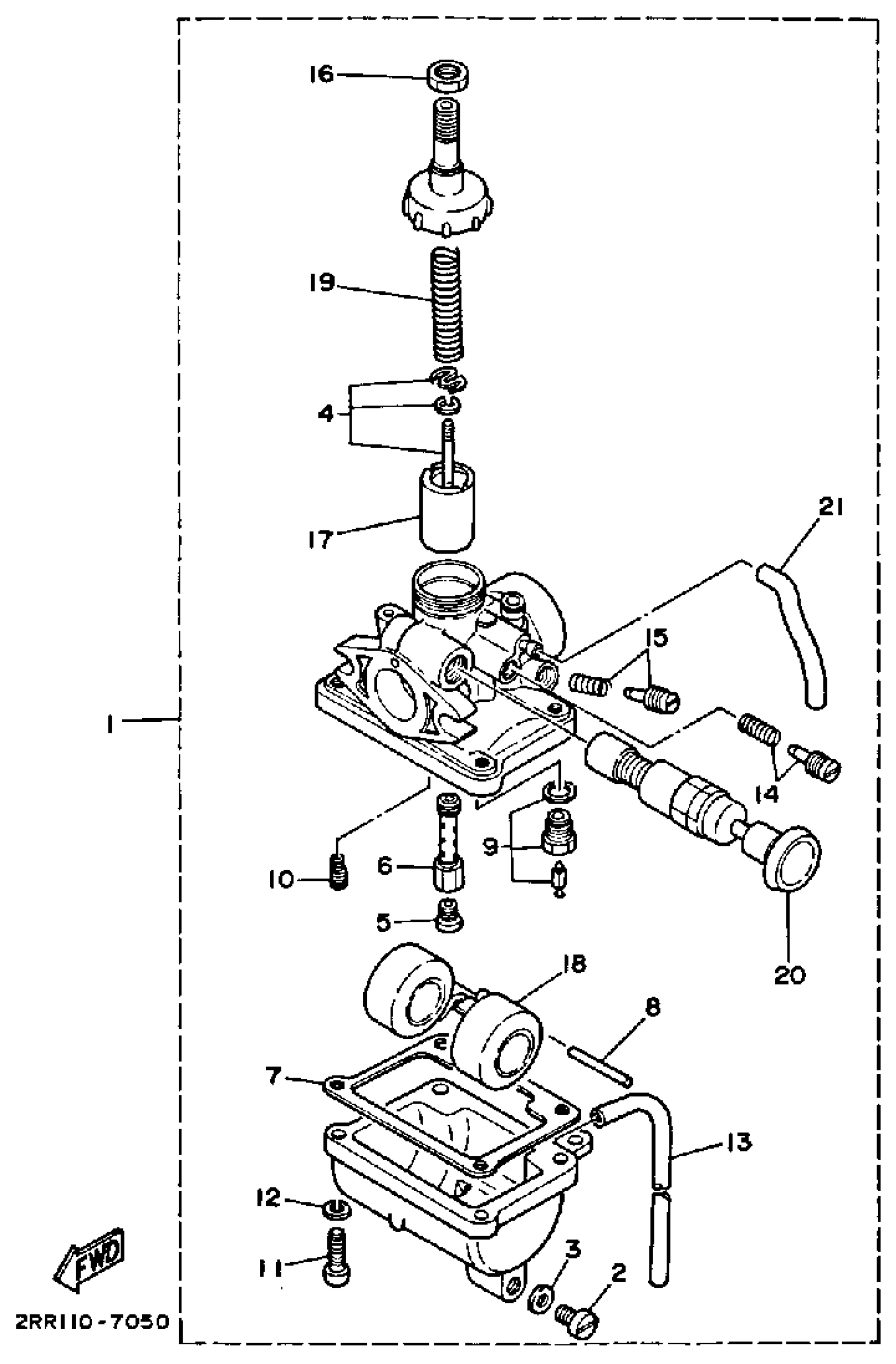

Yamaha YSR50W (YSR50W) 1989 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

2AL-14101-01-00

Unavailable

2

PLUG, DRAIN

68V-14191-00-00

Unavailable

3

. GASKET

266-14126-00-00

Unavailable

4

. NEEDLE SET

2AL-1490J-00-00

Unavailable

5

JET, MAIN (NO.120)

127-14143-24-00

$6.99

6

. NOZZLE, MAIN

127-14141-10-00

Unavailable

7

GASKET, FLOAT CHAMBER

353-14184-00-00

Unavailable

8

PIN, FLOAT

353-14186-00-00

$7.99

9

NEEDLE VALVE SET

31J-14107-20-00

$40.99

10

JET, PILOT (# 17.5)

260-14142-17-00

Unavailable

11

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

HOSE (L700)

90445-05M07-00

Unavailable

14

THROTTLE SCREW SET

12G-14103-00-00

$25.99

15

AIR SCREW SET

36R-14104-00-00

$9.99

16

CAP

8A7-14169-00-00

Unavailable

17

. VALVE, THROTTLE 1

353-14112-20-00

Unavailable

18

. FLOAT

3T2-14185-00-00

Unavailable

19

. SPRING, THRTL VALVE

353-14131-00-00

Unavailable

20

. PLUNGER, STARTER

2GX-14171-00-00

Unavailable

21

PIPE, AIR VENT

183-14197-01-00

Unavailable
