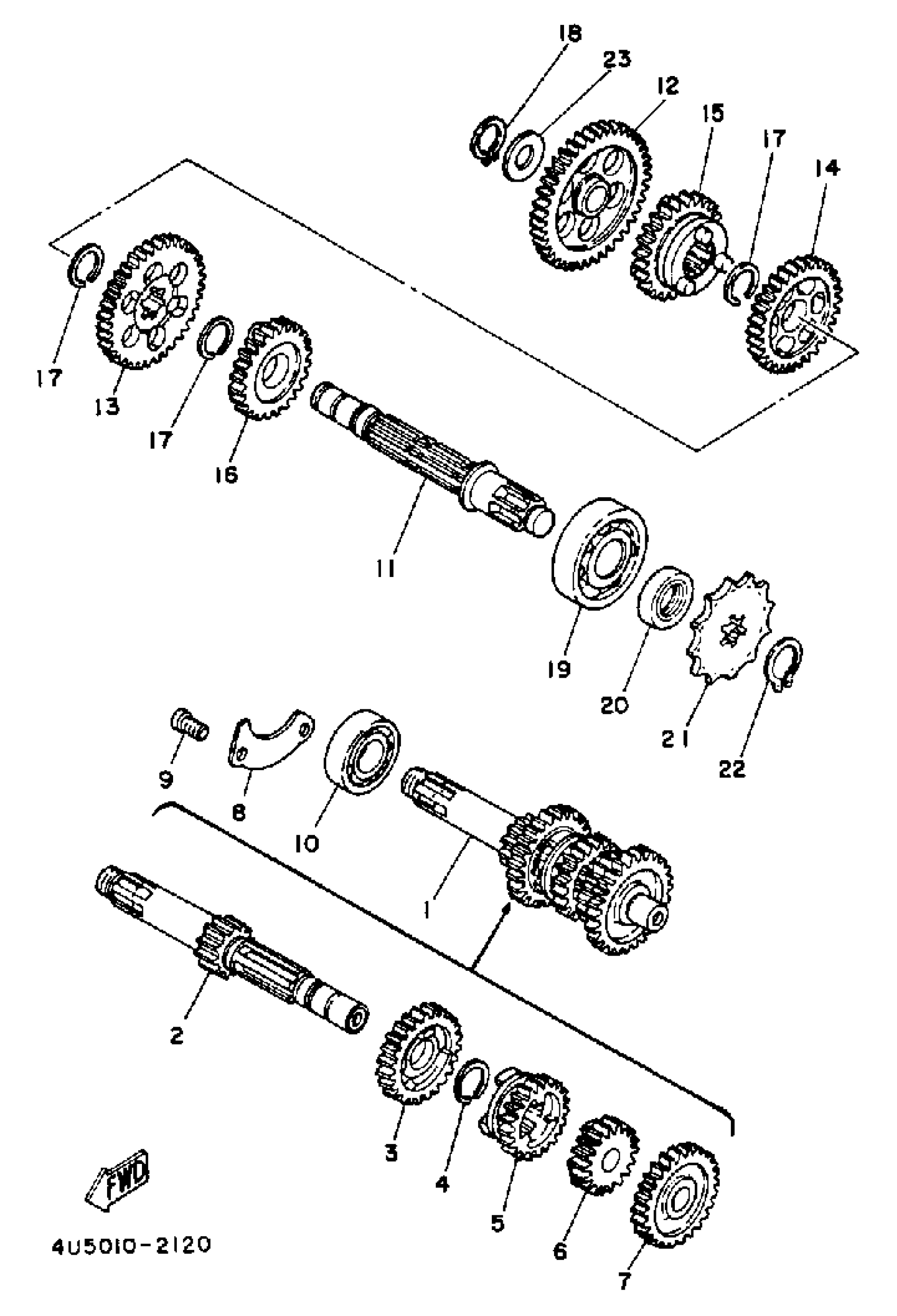

Yamaha YSR50U (YSR50U) 1988 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE

353-17410-10-00

Unavailable

2

AXLE, MAIN

353-17411-10-00

Unavailable

3

. GEAR, 4TH PINION

353-17141-12-00

Unavailable

4

CIRCLIP (4V0)

93440-16089-00

$7.49

5

. GEAR, 3RD PINION

353-17131-10-00

Unavailable

6

. GEAR, 2ND PINION

353-17121-11-00

Unavailable

7

. GEAR, 5TH PINION

353-17151-00-00

Unavailable

8

PLATE, COVER

353-17471-00-00

Unavailable

9

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

10

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

11

AXLE, DRIVE

4U1-17421-00-00

Unavailable

12

GEAR, 1ST WHEEL

353-17211-01-00

Unavailable

13

GEAR, 2ND WHEEL

353-17221-00-00

Unavailable

14

GEAR, 3RD WHEEL

353-17231-00-00

Unavailable

15

GEAR, 4TH WHEEL

3M8-17241-00-00

Unavailable

16

GEAR, 5TH WHEEL

353-17251-00-00

Unavailable

17

CIRCLIP (4V0)

93440-16089-00

$7.49

18

CIRCLIP(13M)

99009-13400-00

Unavailable

19

BRG,R-B 6303 47MM 115G NK

93306-30302-00

Unavailable

20

OIL SEAL (17X40X5-3E8)

93102-17187-00

Unavailable

21

SPROCKET,DRIVE 12T(2571746121)

93811-12009-00

Unavailable

22

CIRCLIP(13T)

99009-16400-00

Unavailable

23

SHIM

257-17219-00-00

Unavailable
