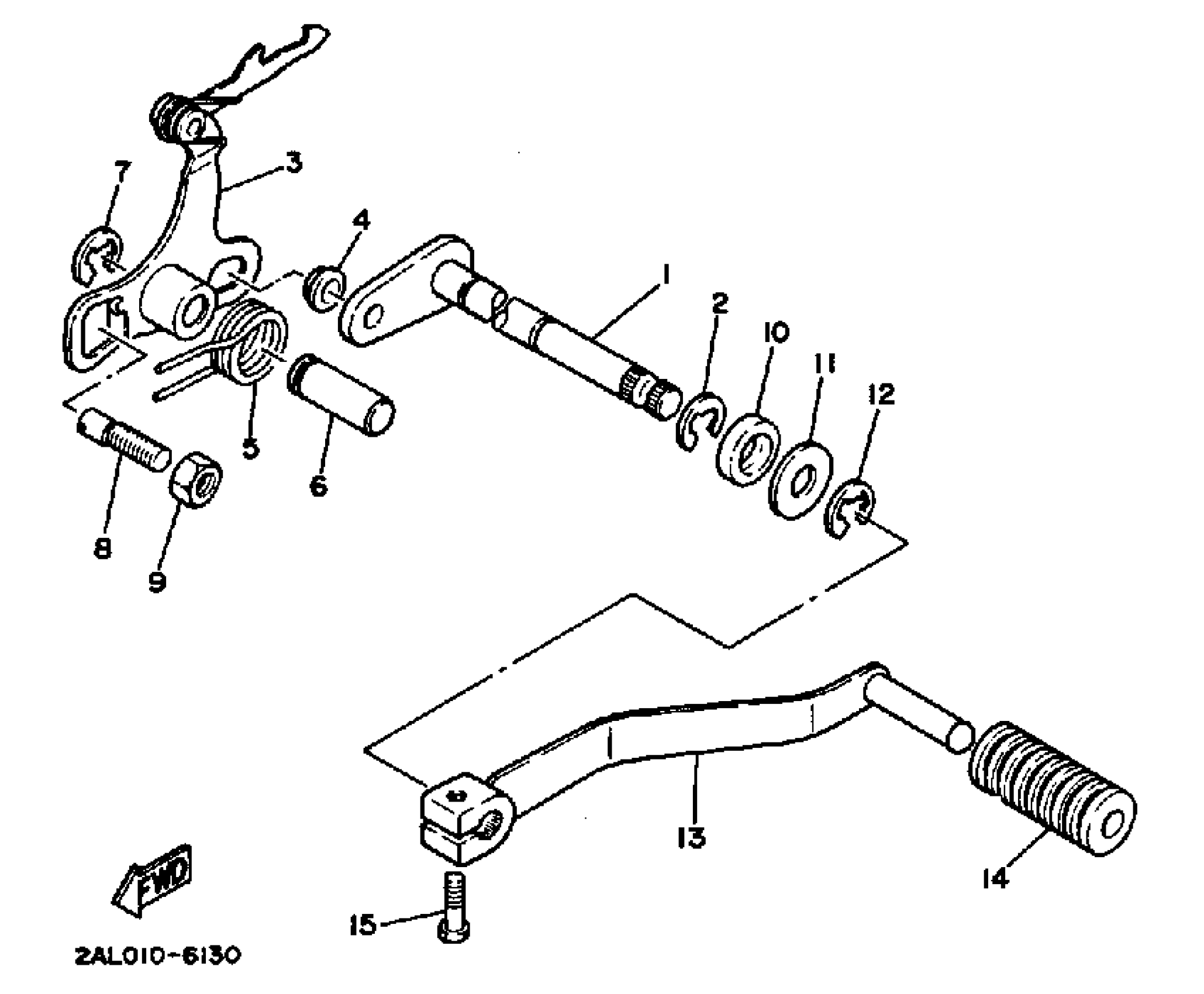

Yamaha YSR50U (YSR50U) 1988 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSEMBLY.1

2AL-18101-01-00

Unavailable

2

CIRCLIP

99006-10600-00

$9.49

3

SHIFT LEVER ASSEMBLY

353-18120-00-00

Unavailable

4

ROLLER, SHIFT LEVER

214-18178-00-00

Unavailable

5

SPRING TORSION 353181240000

90508-32054-00

Unavailable

6

SHAFT

367-18197-00-00

Unavailable

7

CIRCLIP

99006-10600-00

$9.49

8

SCREW, ADJUSTING (367)

90149-08094-00

$7.49

9

NUT(6L2)

95333-08600-00

$2.49

10

SEAL, OIL (30X)

93102-12321-00

$12.49

11

WASHER, PLATE (353)

90201-12575-00

$8.49

12

CIRCLIP

99006-10600-00

$9.49

13

PEDAL, SHIFT

2AL-18111-00-00

Unavailable

14

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

15

BOLT, HEXAGON

97017-06020-00

$4.06
