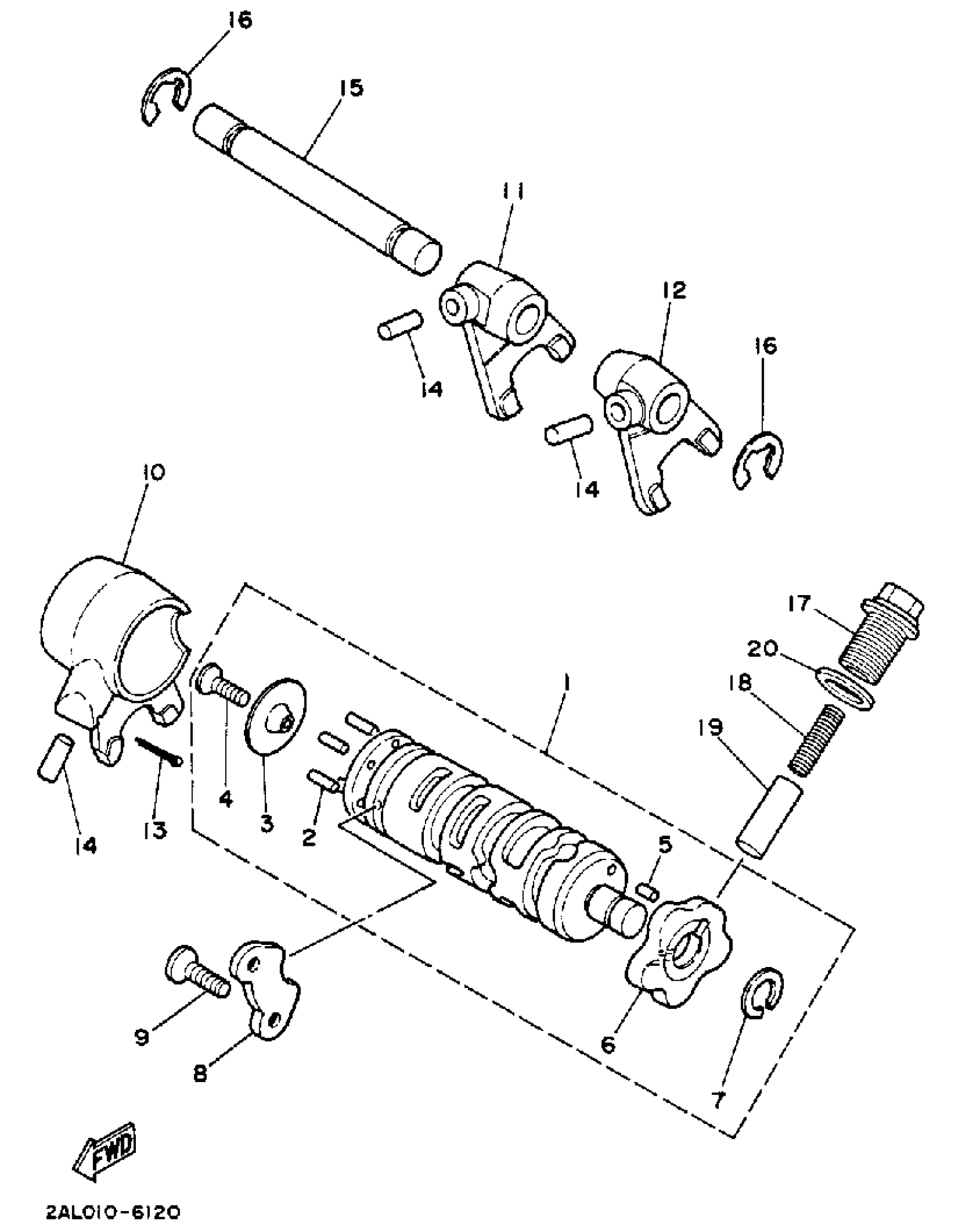

Yamaha YSR50U (YSR50U) 1988 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

2AL-18540-00-00

Unavailable

2

PIN,DOWEL (603)

93604-10011-00

$8.49

3

PLATE, SIDE 1

214-18561-00-00

Unavailable

4

SCREW, FLAT

98707-05012-00

$1.71

5

PIN, DOWEL (278)

93604-08071-00

$8.49

6

PLATE, STOPPER

353-18141-01-00

Unavailable

7

CIRCLIP, OUTER

93440-12026-00

Unavailable

8

PLATE, STOPPER 2

353-18562-00-00

Unavailable

9

SCREW, FLAT

98707-06012-00

$8.49

10

FORK, SHIFT 1

353-18511-01-00

Unavailable

11

FORK, SHIFT 2

3M8-18512-00-00

Unavailable

12

FORK, SHIFT 3

353-18513-01-00

Unavailable

13

PIN, COTTER

91490-25020-00

$3.19

14

PIN,DOWEL(296)

93606-14081-00

$4.24

15

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

Unavailable

16

CIRCLIP

99006-10600-00

Unavailable

17

BOLT (1K8)

90109-14485-00

Unavailable

18

SPRING, COMPRESSION

90501-09292-00

Unavailable

19

STOPPER, CAM

353-18547-00-00

Unavailable

20

WASHER, PROTECTOR

4F4-14766-00-00

Unavailable
