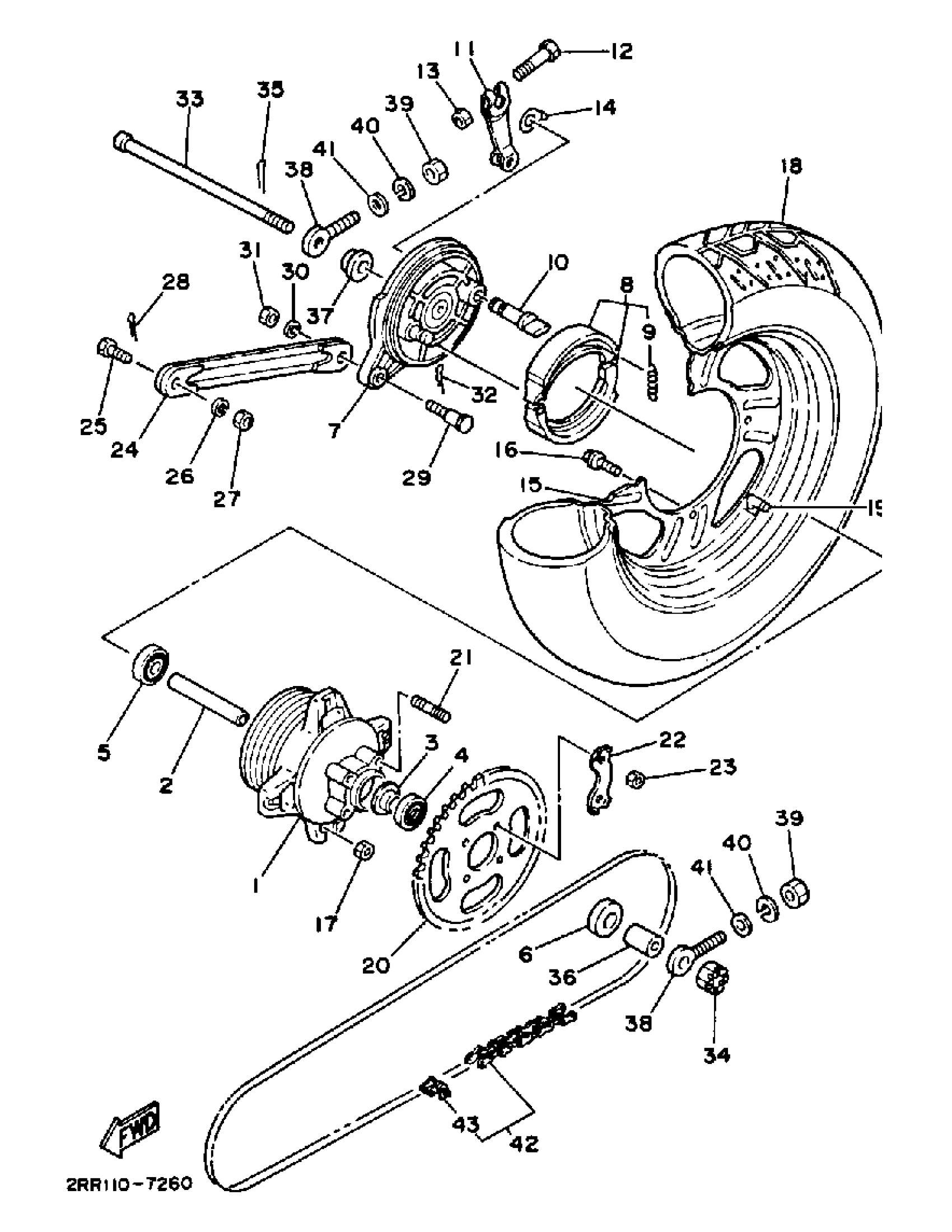

Yamaha YSR50U (YSR50U) 1988 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR GOLD

2RR-25311-00-8L

Unavailable

1

HUB, REAR RED

2RR-25311-00-FH

Unavailable

2

SPACER (439-25317-00)

90560-12110-00

Unavailable

3

FLANGE, SPACER

109-25315-00-00

$7.99

4

BRG.

93306-30101-00

$36.99

5

BEARING

93306-30102-00

$39.99

6

OIL SEAL(3TU)

93106-20033-00

$13.49

7

PLATE, BRAKE SHOE G

(3E1-25321-00-8L)

Unavailable

7

PLATE, BRAKE SHOE

1M3-25321-02-FH

Unavailable

8

BRAKE SHOE KIT

5G3-W2534-00-00

Unavailable

9

SPRING, TENSION

90506-15260-00

$8.49

10

CAMSHAFT

4GL-25351-00-00

$68.99

11

LEVER, CAM SHAFT

2N3-25155-00-00

$28.99

12

BOLT, HEXAGON (538)

90101-06278-00

$2.17

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

PLATE

3Y6-2533A-01-00

Unavailable

15

RIM ASSEMBLY

2AL-2510A-01-8L

Unavailable

15

RIM ASSEMBLY

2AL-2510A-01-FH

Unavailable

16

BOLT, WASHER BASED

90105-08426-00

Unavailable

17

NUT, SELF-LOCKING

90185-08139-00

Unavailable

18

4.00-12 ML16A BS

94140-126J2-00

Unavailable

19

VALVE, RIM (3AA1)

93900-00041-00

Unavailable

20

SPROCKET, DRIVEN 44T

288-25444-10-00

Unavailable

21

BOLT, STUD (483)

90116-08218-00

Unavailable

22

WASHER

2AL-25412-00-00

Unavailable

23

NUT (3Y2)

90170-08258-00

Unavailable

24

BAR, TENSION

561-25371-00-00

Unavailable

25

BOLT (183-25378-00)

90109-08368-00

Unavailable

26

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

27

. NUT

95380-08700-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

29

BOLT 1022537300

90109-08183-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

31

. NUT

95380-08700-00

Unavailable

32

CLIP (156-83525-00)

90468-10050-00

Unavailable

33

AXLE, WHEEL

439-25381-01-00

Unavailable

34

NUT CASTLE(481)

90171-12005-00

Unavailable

35

PIN, COTTER

91490-30030-00

Unavailable

36

COLLAR

90387-1204P-00

Unavailable

37

COLLAR

90387-121R9-00

Unavailable

38

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

39

NUT, HEXAGON

95380-06600-00

Unavailable

40

WASHER, SPRING

92995-06100-00

Unavailable

41

WASHER, PLAIN (646)

92990-06600-00

Unavailable

42

CHAIN, DRIVE

9Y580-52099-00

Unavailable

43

JOINT, CHAIN (29A)

94680-52001-00

Unavailable
