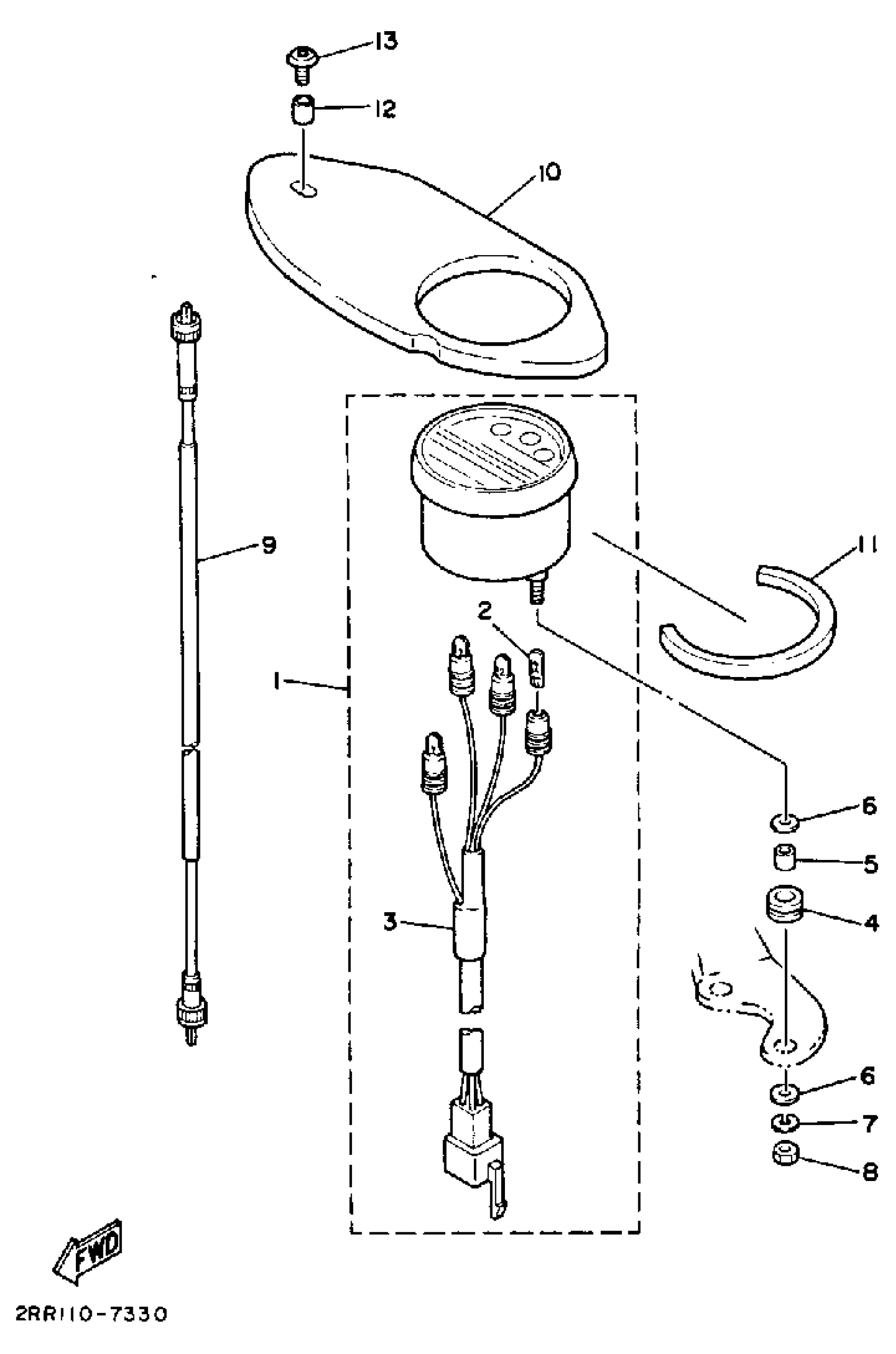

Yamaha YSR50U (YSR50U) 1988 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSEMBLY

2RR-83510-A0-00

Unavailable

2

BULB (6V 3W)

4N0-83516-00-00

$3.22

3

. SOCKET CORD ASSEMBLY

2RR-83509-00-00

Unavailable

4

GROMMET(80K)

90480-13428-00

$8.49

5

COLLAR (26H)

90387-053H3-00

$2.22

6

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

NUT, HEXAGON (663)

95380-05600-00

$8.49

9

SDMTR,CABLE

2AL-83550-01-00

Unavailable

10

PANEL, METER

2AL-83611-00-00

Unavailable

11

DAMPER

3AJ-28371-00-00

$11.99

12

COLLAR (420)

90387-06241-00

$8.49

13

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable
