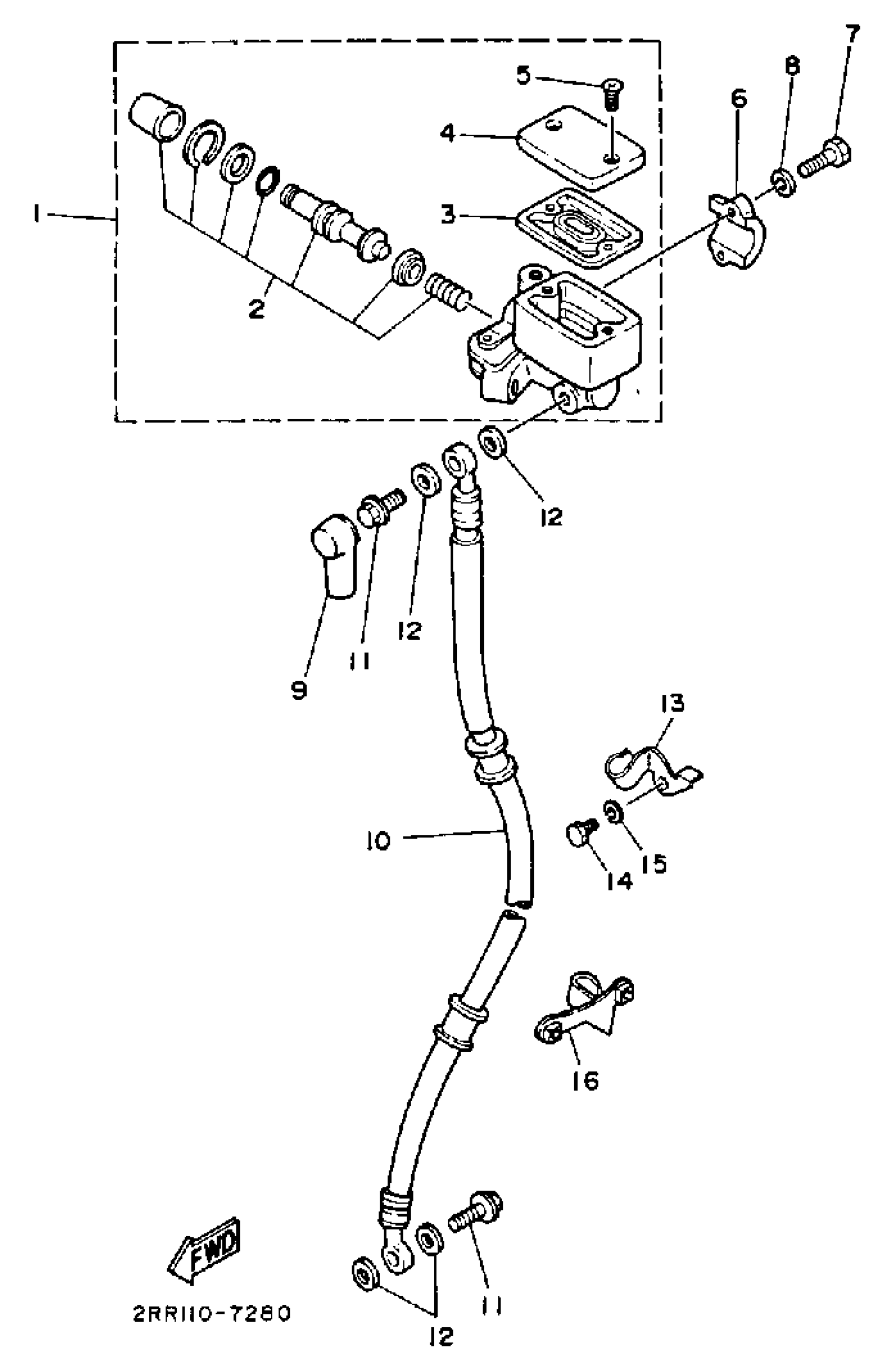

Yamaha YSR50U (YSR50U) 1988 FRONT MASTER CYLINDER Diagram

MSTR.CYL.SUB.ASSY.

3AX-25870-00-00

Unavailable

CYLINDER KIT, MASTER

56A-W0041-00-00

$69.99

DIAPHRAGM, RESERVOIR

55U-25854-00-00

$27.99

CAP, RESERVOIR (FRONT)

2KF-25852-02-00

Unavailable

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, SPRING

92907-06100-00

$4.25

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

HOSE,BRK 1

99999-02749-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

$11.49

WASHER, PLATE(481)

90201-10118-00

Unavailable

HOLDER, BRAKE HOSE 1

2AL-25875-00-00

Unavailable

BOLT, HEXAGON

97017-06012-00

$3.76

WASHER, SPRING

92907-06100-00

$4.25

HOLDER,BRKE HOSE 2

2AL-25876-00-00

Unavailable
