- YSR50U (YSR50U) 1988
FAIRING COWLING

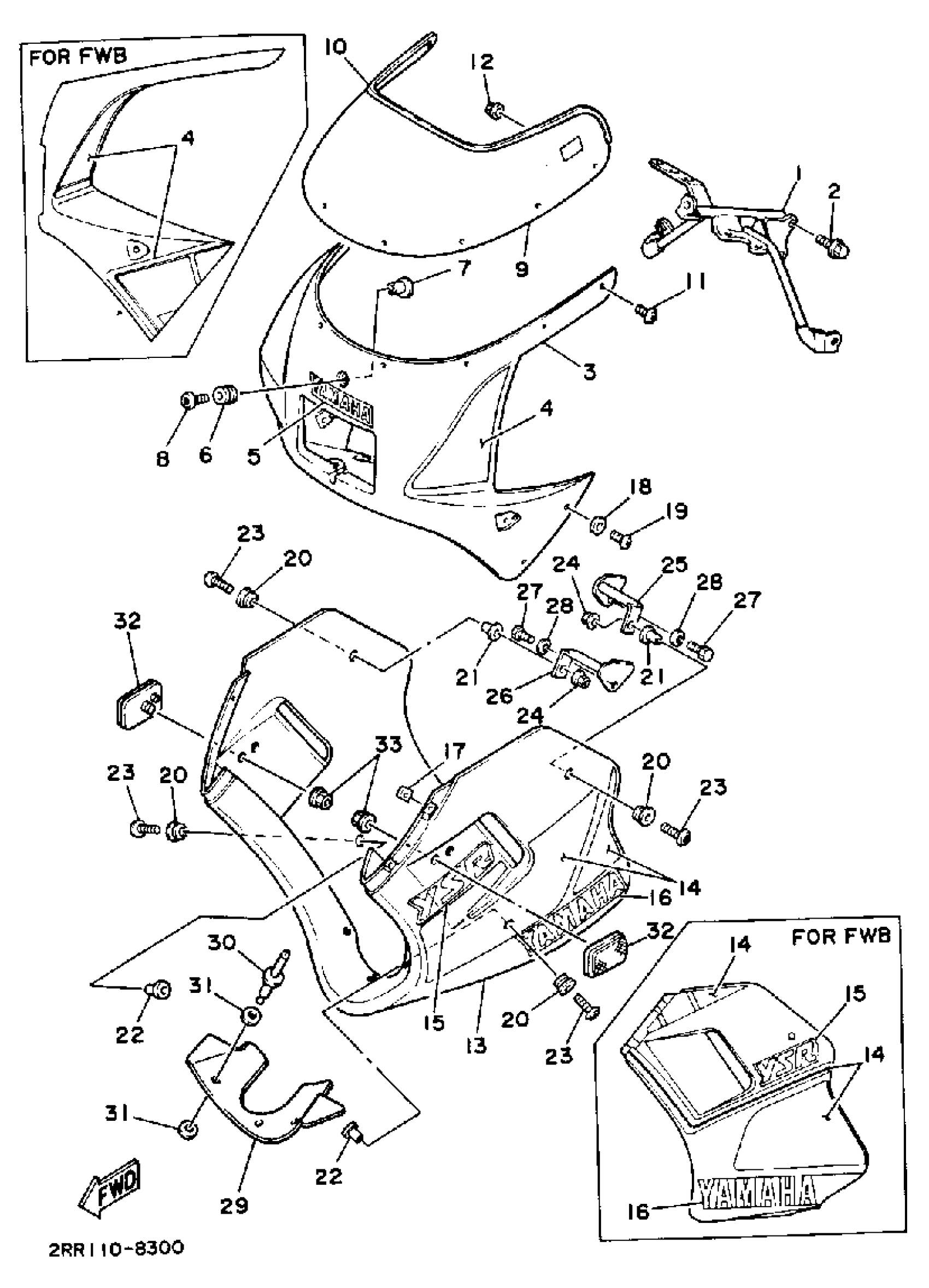

Yamaha YSR50U (YSR50U) 1988 FAIRING COWLING Diagram
#
1
STAY 1
2RR-28356-00-00
Unavailable
3
BODY, FRONT UPPER 1
2RR-2835G-00-00
Unavailable
3
BODY, FRONT UPPER 1
3AX-2835G-00-00
Unavailable
4
GRPHC SET, COWLING
2AL-28390-00-00
Unavailable
4
GRPHC SET, COWLING (FARAWAY BLUE)
2AL-28390-10-00
Unavailable
5
EMBLEM, YAMAHA
99243-00080-00
Unavailable
9
SCREEN
2RR-2837U-00-00
Unavailable
10
MOLD 2
2AL-28346-00-00
Unavailable
13
BODY, FRONT LOWER 1 LOWER 1
2RR-2835J-00-00
Unavailable
13
BODY, FRONT UNDER 1
2RR-2835J-10-00
Unavailable
14
GRAHIC SET, LOWER COVER
2AL-28301-00-00
Unavailable
14
GRPHIC SET, UNDER COVER (FARAWAY BLUE)
2AL-28301-10-00
Unavailable
15
EMBLEM
2AL-28328-00-00
Unavailable
15
EMBLEM (FARAWAY BLUE)
2AL-28328-10-00
Unavailable
16
EMBLEM, YAMAHA
99241-00240-00
Unavailable
16
EMBLEM, YAMAHA
99233-00240-00
Unavailable
17
NUT, SPRING
90183-051A0-00
Unavailable
18
WASHER PLATE 626441880000
90202-06007-00
Unavailable
19
SCREW, BINDING(3XV)
90154-05059-00
Unavailable
21
COLLAR(1LJ)
90387-067N5-00
Unavailable
22
COLLAR (420)
90387-06241-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(1KF)
90110-06104-00
Unavailable
24
NUT, FLANGE(7NB)
95780-06500-00
Unavailable
25
STAY, GUIDE 1
2AL-2831E-00-00
Unavailable
26
STAY, GUIDE 2
2AL-2831F-00-00
Unavailable
27
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
28
WASHER, SPRING
92995-06100-00
Unavailable
29
PANEL, INNER 1
2AL-2836K-00-00
Unavailable
30
RIVET, BLIND
90267-40029-00
Unavailable
31
WASHER, PLATE(26H)
90201-044H9-00
Unavailable
32
FRONT REFLECTOR ASSY
23V-85110-00-00
Unavailable
